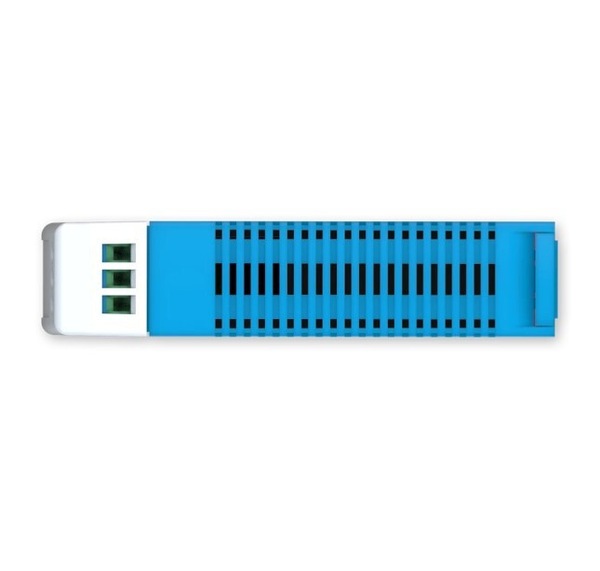

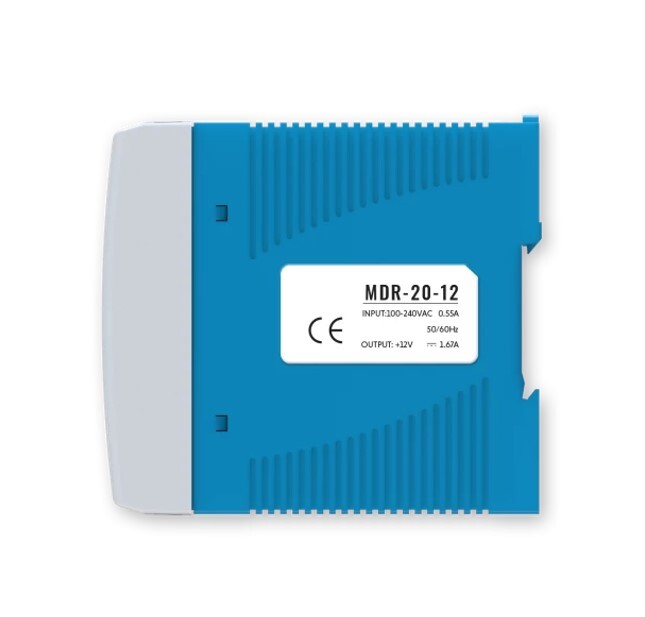

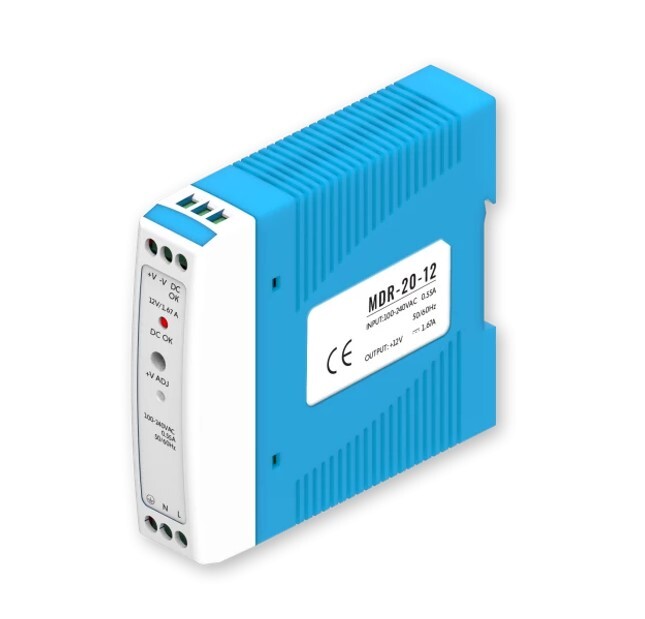

Teltonika Din Rail Power Supply

Teltonika DIN RAIL POWER SUPPLY

PARAMETER

• Single output power: 20 W
• Input voltage range: 100-240 VAC 50/60 Hz
• DC output voltage: 12 V
• DC output current: 0-1.67 A
• Output ripple and noise: 120 mVp-p
• Line regulation: ±1%
• Load regulation: ±1%
• Efficiency: C
• Adjustable range for DC voltage: ±1%
• Test standard:
  EN60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
  EN55022:2010
  EN61000-3-2:2014
  EN61000-3-3:2013
  EN55024:2010/A1:2015
• Inrush current: Cold start current 20 A/ 115 VAC; 40 A/ 230 VAC
• Overload protection: 105 %-160 % cut off the output, automatic recovery
• Over voltage protection: 120 % - 140 % shut down O/P voltage, off/on cycle required for recovery
• Setup, rise, hold up time: 500 ms; 30 ms/230 VAC at full load; 1000 ms; 30 ms/ 115 VAC at full load
• Withstand voltage: I/P-O/P: 1.5 kV; I/P-FG: 1.5 kV; O/P-FG: 0.5 kV 1 minute
• Isolation resistance: I/P-O/P I/P-FG O/P-FG: 500 VDC/1000 MO
• Working temperature: -10 °C - +50 °C
• Mounting options: 35 mm DIN Rail
• Dimensions: 22.5 x 90 x 100 mm
• Weight: 19 g
