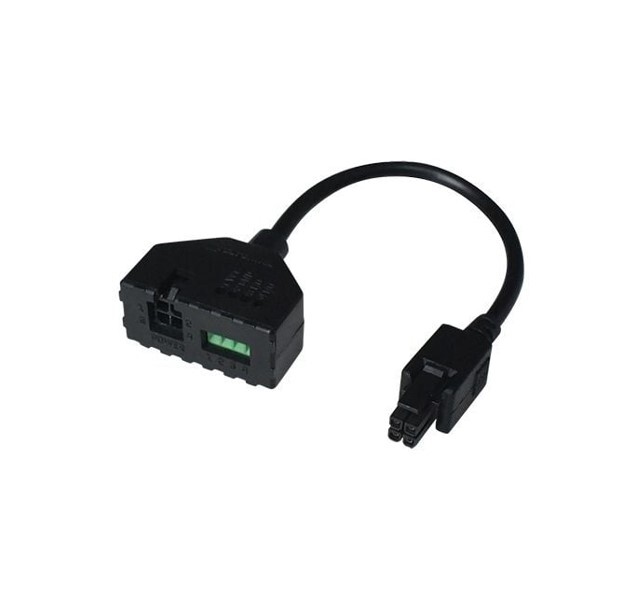

Teltonika 4-Pin Power Adapter With I/O Access

This 4-PIN power connector adapter allows you to easily access I/O functionality for compatible Teltonika Networks devices. It features a standard 4-PIN to 4-PIN power connection with an additional terminal for configurable digital inputs and outputs.

TECHNICAL DATA

GENERAL

• Input connector 4-pin, 3 mm pitch and 4-way screw terminal block
• Output connector 4-pin, 3 mm pitch
• Cable 4 x 0.20 mm² (24 AWG), 100 mm
• Screwdriver type Micro slotted
• Weight 15 g.

*CONNECTION DATA

• Conductor cross section solid / flexible 0.14 - 0.50 mm² (26 - 20 AWG)
• Conductor cross section flexible, with ferrule, with plastic sleeve 0.25 - 0.30 mm² (23 - 22 AWG)
• Pinout 1 Pin: Power +
  2 Pin: Ground -
  3 Pin: Input/Output
  4 Pin: Input/Output
