TEAC SET TOP BOX HDB860

Full HD Digital Set Top Box with USB Recording

HDB860

This set-top box is an outstanding product of your local brand TEAC, which had sold more than 100k units. It adopts the latest MSTAR main chip, has H.264 decoding capability and complies with DVB-T2. Designed in strict accordance with the requirements of the Australian DTV standard, and have SAA, EMC, MEPS certified. Not only ensuring safety use by customer, but also fulfills electromagnetic radiation and energy saving requirements.

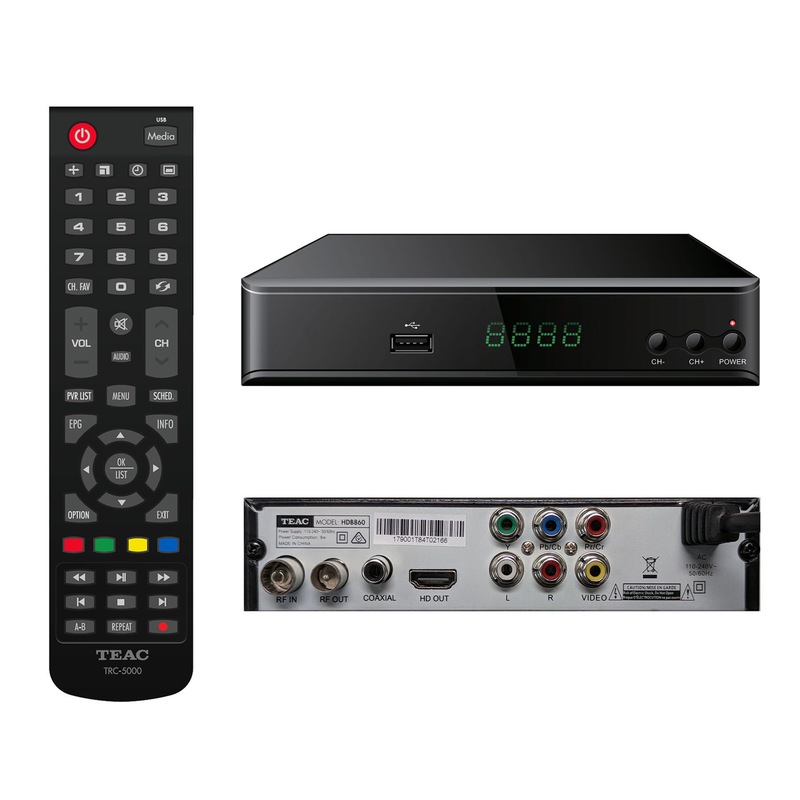

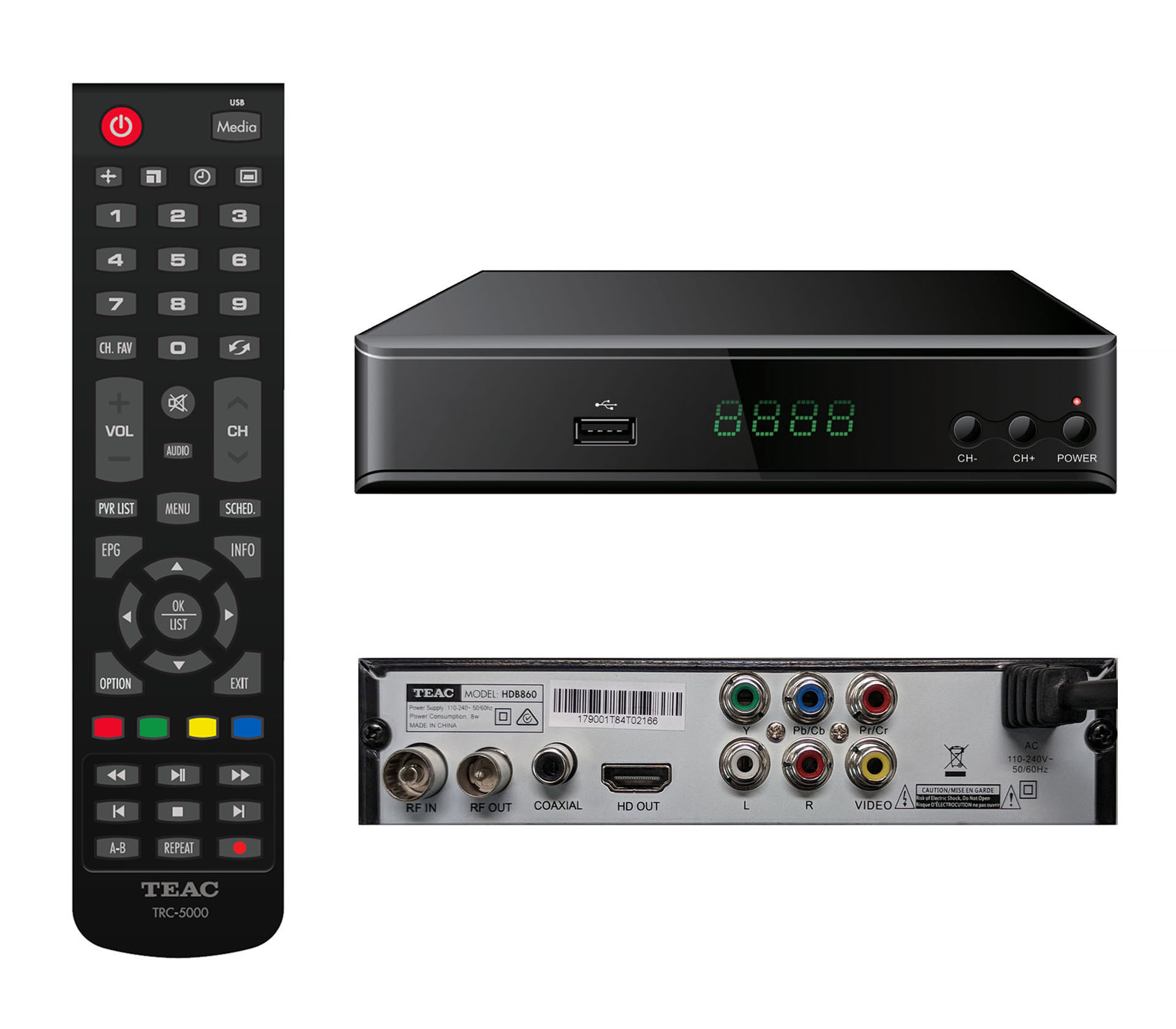

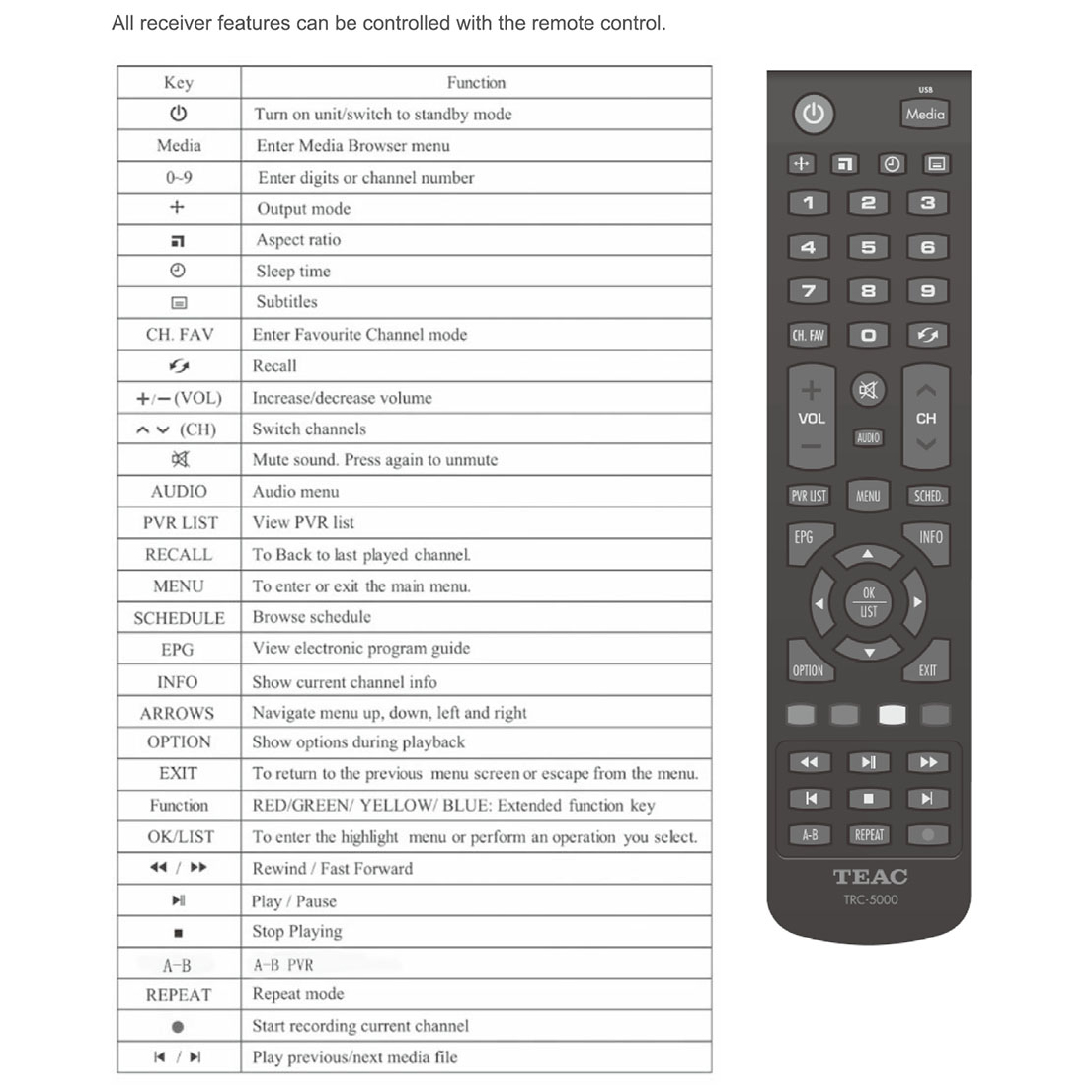

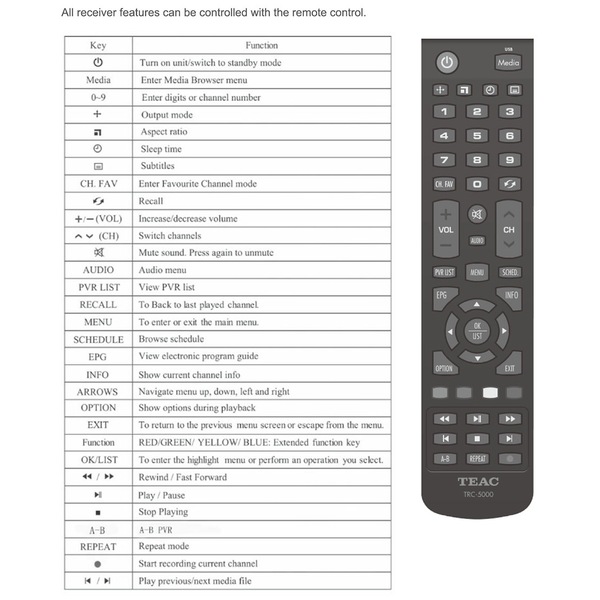

Different from other similar products, TEAC provides a full-sized fully featured set-top box remote control. Simple and convenient to use. The unique Record LIST and Schedule LIST buttons allows the use of PVR functions quickly and effectively.

In addition to the HDMI output port that can provide 1080P full HD images, there are also YPbPr, AV ports, which can support the connection of CRT TV, Plasma TV, LCD (LED) TV, MONITOR and PROJECTORS. In addition to analogue output in audio, there is also a digital coaxial output with built-in Dolby decoding function. Allows you to fully enjoy the advantages and beauties of digital TV.

You can use it to watch TV, record programs, and play movies and videos on USB. Don't buy expensive ones, just buy the right ones. This is the best-selling high-quality set-top box that can meet your home entertainment needs.

Specification

• DTV
  • Terrestrial Receiver Standard     DVB-T/T2
  • Frequency Range                      170-230MHz, 470-860MHz
  • Band width                                  6/7/8MHz
  • Australia DTV Standard             AS/NZS 4399.1-2010
• Connections
  • TV/CATV RF                             IEC Female 75-ohm x 1
  • USB                                          USB2.0x 1
  • HDMI out                                  1.4 x 1
  • Digital Audio out                        Coaxial RCA1 x 1, PCM/Bitstream
  • YPbPr & AV out                         RCA6 x 1
  • RF Loop out                              IEC male x 1
• Decoder
  • Video System                           MPEG-1/2/4, H.264, VC-1
  • Audio System                           MPEGI layer1/2, MPEGII Layer II, Dolby, AAC LC, HE-AAC v1/V2, MP3
  • Multi-Media System                  ts, mpg, mp4, avi, mkv, ogg, jpeg
  • Basic function                           Display Resolution/Aspect ratio/EPG/Subtitle/LCN
  • Extra Function                           Media Play/PVR/Time-Shifting
• USB System
  • Disk Format                              FAT16/FAT32
  • Play back                                  Play, Pause, Stop
  • Function                                   Fast Forward/Fast Backward 2/4/8/16/32
• Power
  • Power input                               AC 110-240V 50Hz 8W
  • Standby                                    ≦1W
  • Compliance                               AS/NZS 60065:2012+A1:2015, AS/NZS CISPR32 2015
  • Energy Saving                           AS/NZS 62087.2.1:2008+A1+A2 and 62087.1:2010
• Measurements
  • Gross Weight                            0.3kg
  • Net Weight                                0.6kg
  • Dimensions                              168x 95 x 36mm
  • Gift Box Dimensions                 223 x 205 x 51mm
