TDR TSDZ2B 500W E-Bike Conversion Kit with 48V 13Ah Battery, VLCD-5 Display, Throttle, Fits 68-73mm Bottom Bracket, Off-Road Use

TDR TSDZ2B 500W E-Bike Conversion Kit with 48V 13Ah Battery, VLCD-5 Display, Throttle, Fits 68-73mm Bottom Bracket, Off-Road Use

Hurry! 3 items left!

Price	$1139
	Collect 1139 Everyday Rewards points Log in to MyDeal to link your card
Shipping	Unable to calculate delivery for , please Contact Us Delivery unavailable to Change
	24-48 hour dispatch See delivery details

Take 10% Off Purchases

Exclusive to TDRMOTO products only. Expires 11.59pm 30/03/2025. Excludes Shipping. Everyday Rewards points will be collected on your total purchase less any discounts. T&C's apply.

Copy code F6K57

Quantity

Add to wishlist

Why choose the little motor- TSDZ2B Mid drive motor?
Fits 95% of standard bike frames with 68-73mm bottom bracket built in torque and cadence sensor- this results in much smoother acceleration than any cadence sensor mid drive motor.
Easy to install. Kit includes all installation parts and tools.
The motor has an extra support mount - resulting in a much more reliable install.
80Nm of torque
The TSDZ2B Mid Drive Motor - Torque Sensing Pedal Assist: The harder you pedal - the harder the motor works with you. 4 levels of assist provide smoothly integrated power ranging from +36-300%, allowing you to conquer virtually any hill with ease.
These kits retrofit most bicycles by replacing the bottom bracket & crank set assembly - to utilize the existing drivetrain & gears for maximum efficiency.
The VLCD-5 Display - w/ Throttle & E-brakes: The VLCD-5 is a larger, center mounted display with ports and wiring for a throttle, e-brakes, and an external handlebar mounted button panel.
It also houses a USB port for charging your mobile device (installation/use of the throttle, e-brakes, and/or external button panel is optional).

What improvements have been made when comparing the new TSDZ2B to the old version?
The upgraded TSDZ2B now features an all-in-one reduction gear kit, which cannot be separated, making it more robust and stable.
Additionally, the one-way needle bearing has been replaced with an all-in-one nylon gear in the new TSDZ2B version, providing increased torque with an external clutch.
Moreover, the new bi-directional freewheeling clutch enables you to ride your bike as a regular bicycle when the power is depleted.

Specifications:
Model TSDZ2B
Rated Power 500W
Efficiency (%) ≥80
Reduction Ratio 41
Wheel Size (Inch) Optional
Rated Voltage (DCV) 48V
Max Torque (N.m) 80
Weight (kg) 3.5
n0(Rpm) 66/94
Power Assist Ratio 36%~300%
Pedal Sensor Speed and Torque Integrated
Shaft Standard JIS
Noise Grade (dB) <55
Throttle Thumb
E-Brake Yes
Light Drive Capacity (DCV/W) 6/3
IP Level / Salt Spray Test 65/96
Certification CE/RoHS/EN 15194
Bike Recommendation E-CITY / E-TOUR

Battery Specs:
48v 13ah
Nominal Voltage: 48V
Rated Capacity: 13Ah
Watt Hours: 624Wh
Configuration: 13s5P
Battery Cell: A-grade 18650 2500mah
Max Continuous Charge Current: 3A
Max Constant Discharge Current: 30A( BMS)
Charge Cut-off Voltage: 54.6V
Discharge Cut-off Voltage: 36.4V

Battery Weight: 4.4kg
Charger included

Features:
Universal compatibility: Fits almost bikes in market with 68-73mm bottom bracket,Free Gift Wrench.
Torque and cadence sensor: Much smoother and better, as it can match your power, not just turn on or off when you do
Installation & Mode: Easily installation by the installation video and the instruction manual we provided;Three riding Mode (E-bike & Pedal Assisted bicycle, Pedaling bicycle, Pure Power bicycle) for you to choose, you can choose the E-bike to enjoy a long time travel, and also exercise.
Light and smart: 30% lighter than a Bafang motor for almost the same power output .

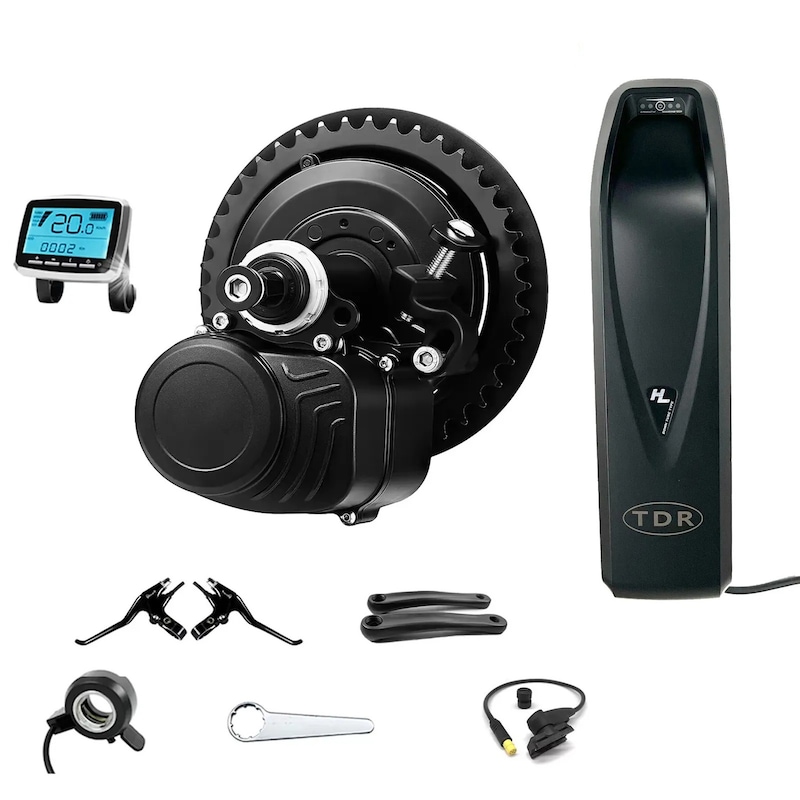

Package included:
1 x Mid Central Motor
1 x VLCD-5 Meter
1 x Cranks
1 x Speed Sensor
1 x Gear Button
1 x Wrench
1 x Throttle
1 x Manual
1 x 48v 13ah Battery
1 x Charger

Note :

48V 500W Is not road legal ebike power ,we only recommend off road use !!
Warranty : 12 Months replacement warranty for motor and battery
Professional installation recommended
The max speed will be between 30km/h to 40km/h depending on bike's gear ratio ,smaller teeth sprocket will make bike go faster.

MPN: TJ313~TE169~TE514~TE508
