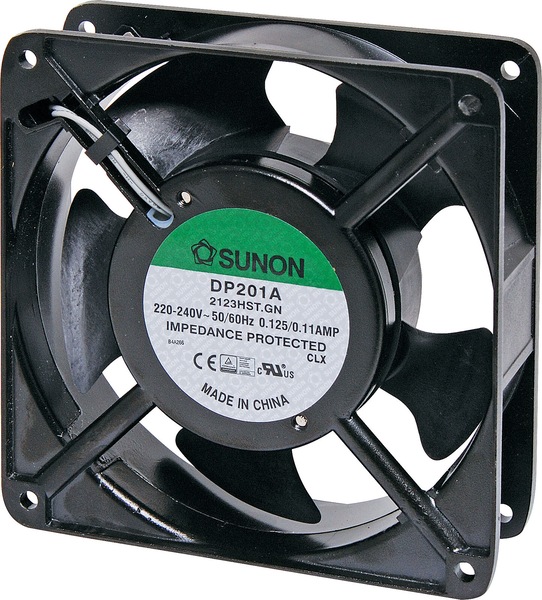

Sunon 120mm 240VAC Sleeve Bearing Cooling Fan with Diecast Aluminium Frame

A 240V AC 120mm Sunon Sleeve Bearing Cooling Fan (#DP201A/2123HST.GN) with diecast aluminium frame. Designed for long-life and minimal noise operation. Sunon® fans are manufactured to a very high standard and hold CSA and UL listings. Altronics has been a Sunon distributor for many years and have found them to be of excellent overall quality and reliability.

• Mechanical Characteristics
• Motor Design: Shaded pole motor construction
• Motor Protection: Impedance protected
• Bearing System: Lubricated sleeve bearing system
• Frame Material:Die-cast aluminium
• Blade Material: Thermoplastic PBT of UL94V-0
• Direction of Rotation: Counter clockwise viewed from the front of the fan blade
• Mounting Holes: 8x 4.3mm holes
• Weight: 550g
• Dimensions: 120 x 120 x 38mm

• Electrical Characteristics
• Rated Voltage: 220-240V AC at 50/60Hz
• Rated Current: 0.125/0.11A
• Rated Power: 20/19W
• Operating Voltage Range: 185-245V AC
• Starting Voltage: 185V AC (25°C Power On/Off
• Operating Temperature: -10°C ~ +70°C
• Storage Temperature: -40°C ~ +70°C

• Performance Characteristics
• Rated Speed: 2550/2900 RPM ±10%
• Air Flow: 85/105 CFM
• Static Pressure: 0.25/0.30 Inch-H2O
• Noise Level: 43/48dB (A)
• Insulation Resistance: 500MΩ (min) at 500V DC
• Dielectric Strength: 1800V AC for one second
