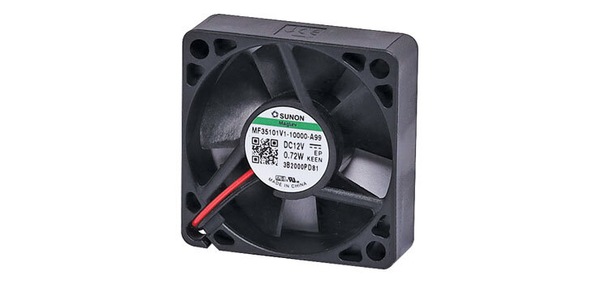

Sunon 12VDC 35mm Maglev Bearing Cooling Fan MF35101V1-10000-A99

Sunon's maglev bearing system provides whisper quiet operation and superior resistance to dust and debris, extending the operational lifetime of the motor.

• Mechanical Characteristics
• Motor Design: Single phase, 4 poles brushless DC motor
• Bearing System: Vapo bearing system
• Frame Material: Thermoplastic PBT of UL94V-0
• Blade Material: Thermoplastic PBT of UL94V-0
• Direction of Rotation: Counter clockwise viewed from the front of the fan blade
• Mounting Holes: 3x 3.2mm holes
• Weight: 10.5g
• Dimensions: 35 x 35 x 10mm

• Electrical Characteristics
• Rated Voltage: 12V DC
• Rated Current: 60mA (69mA max)
• Rated Power Consumption: 0.72W (0.83W max)
• Operating Voltage Range: 6~13.8V DC
• Starting Voltage: 6V DC (25°C Power On/Off)
• Operating Temperature: -10°C ~ +70°C
• Storage Temperature: -40°C ~ +70°C

• Performance Characteristics
• Rated Speed: 10,000 RPM ±15% at rated voltage
• Air Flow: 7.2 CFM
• Static Pressure: 0.22 Inch-H2O
• Noise Level: 28dB(A)
• Insulation Class: UL Class A
• Insulation Resistance: 10MΩ at 500V DC between internal stator and lead wire (+)
• Dielectric Strength: 500V AC for one minute or 600V AC for 2 seconds between housing and lead wire (+)
• Life Expectancy: 60,000 hours at 40°C, 65% RH, 90% CL
• Protection: Automatic restart, polarity protection
