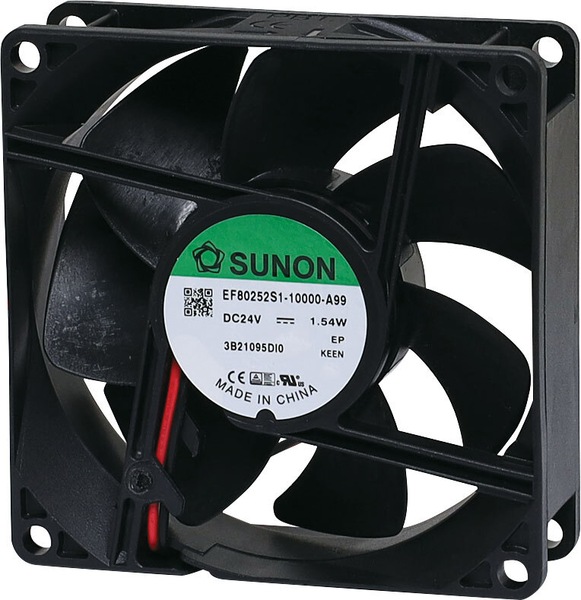

Sunon 80mm 24VDC Thermoplastic Frame Motor Design Sleeve Bearing Cooling Fan

A 24V DC 80mm Sunon Sleeve Bearing Cooling Fan (#EE80252S1-0000-A99) with thermoplastic frame. Designed for long-life and minimal noise operation. Sunon® fans are manufactured to a very high standard and hold CSA and UL listings. Altronics has been a Sunon distributor for many years and have found them to be of excellent overall quality and reliability.
Note: Other models are available for your specific OEM requirements, please contact us for details.

Specifications

Mechanical Characteristics

• Motor Design: Brushless DC Motor
• Bearing System: Lubricated sleeve bearing system
• Frame Material: Thermoplastic PBT of UL 94V-0
• Blade Material: Thermoplastic PBT of UL 94V-0
• Direction of Rotation: Counter clockwise viewed from the front of the fan
• Input Power: 4.1W
• Mounting Holes: 8x 4.3mm holes
• Weight: 75g
• Dimensions: 80 x 80 x 25mm

Electrical Characteristics

• Rated Voltage: 24V DC
• Rated Current: 55mA (64mA max)
• Rated Power Consumption: 1.32W (1.54W max)
• Safety Power Consumption: 1.54W
• Operating Voltage Range: 8~27.6V DC
• Starting Voltage: 8V DC (25°C Power On/Off)
• Operating Temperature: -10 - +70°C
• Storage Temperature: -40 - +70°C

Performance Characteristics

• Rated Speed: 3200 RPM ± 10% at 24V DC
• Air Flow: 41.0 CFM (3.33 CFM min)
• Static Pressure: 0.18 Inch-H2O (0.13 Inch-H2O min)
• Acoustic Noise: 33.0dB (A) (37.2dB max)
• Insulation Class: UL Class A
• Insulation Resistance: 10MΩ @ 500V DC between internal stator and lead wire (+)
• Dielectric Strength: 500V AC for 1 minute, 600V AC for 2 seconds between housing and lead wire (+)
• Life Expectancy: 35,000 hours at 40°C, 65% RH, 90% CL
• Protection: Automatic Restart
