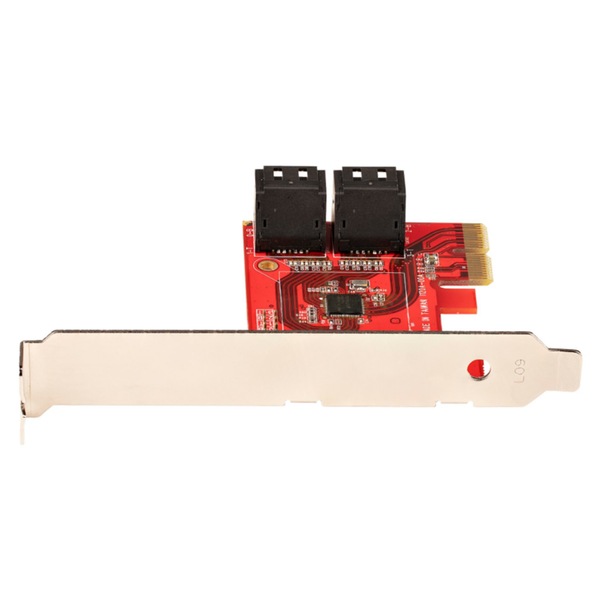

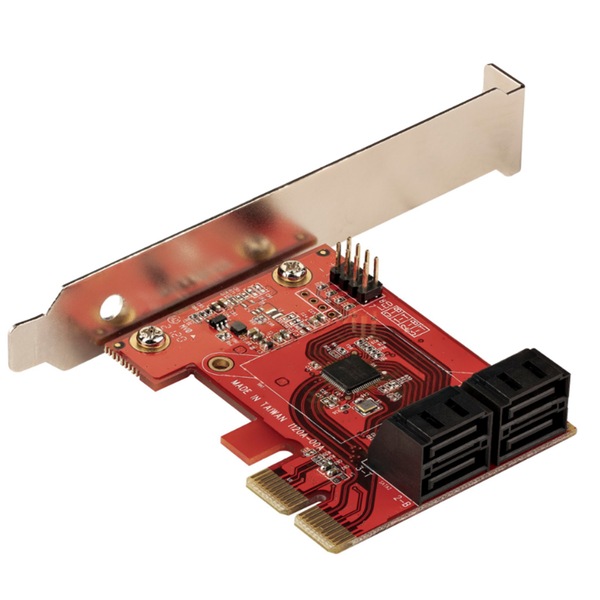

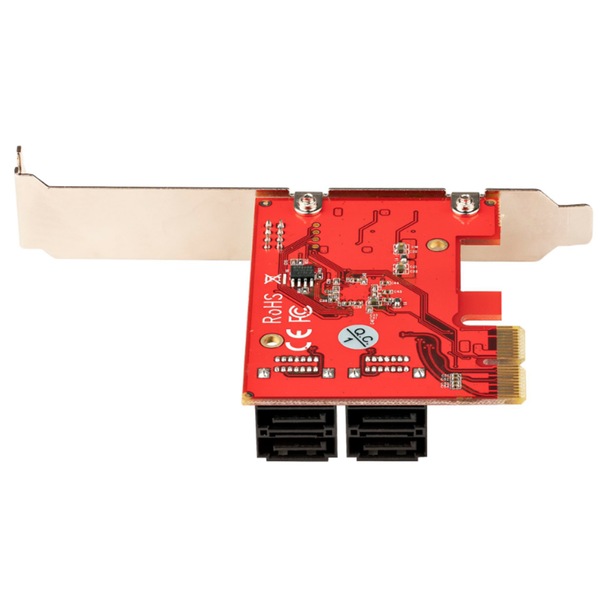

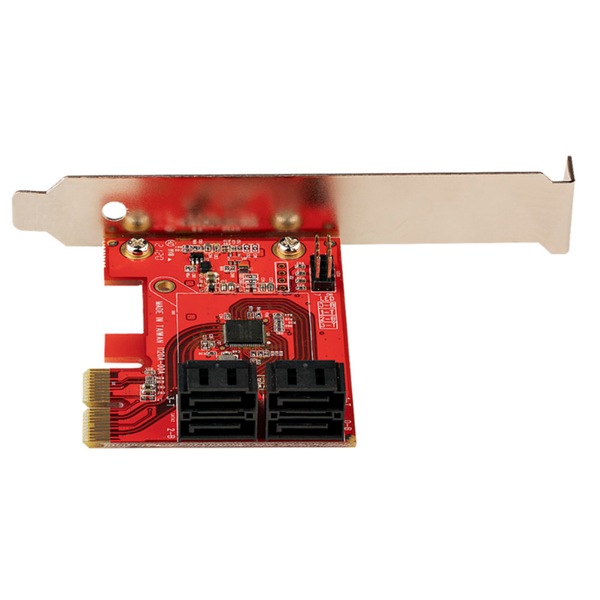

StarTech.com 4P6G-PCIE-SATA-CARD SATA PCIe Card - 4 Port PCIe SATA Expansion Card - 6Gbps - Low/Full Profile - Stacked SATA Connectors - ASM1164 Non-Raid - PCI Express to SATA Converter

This 4-port SATA III (6Gbps) controller enables you to add four SATA 6Gbps Hard Drives (HDDs) or Solid State Drives (SSDs) to your computer system or server via an available PCIe x2 card slot. The card supports SATA III and PCI-Express 3.0 Specifications.
ASM1164 to Deliver 4-Port SATA 6Gbps Performance
Featuring the ASM1164 controller, this SATA card enables the connection of four high-performance SATA 6Gbps drives with a combined total throughput of up to 16Gbps. The SATA drives are connected via four individual SATA ports located on the card (SATA cables sold separately).
Wide Compatibility
The controller card is widely supported across all popular operating system platforms including Windows (7, 8, 10, 11), macOS (10.10 and above) and Linux (2.6.32 and above). The card also supports port multiplier, giving you the ability to connect multiple drives to a single SATA port (additional hardware required, sold separately).
To further improve motherboard compatibility the card does not have a built-in RAID controller, but fully supports the use of software RAID. Plus, with support for PCIe 3.0 and SATA III Specifications this card ensures backward compatibility with previous generations (SATA I/II, PCIe 1/2) at lower performance.
Hassle-Free Installation
The SATA controller card features plug-and-play installation and can be installed in a full-profile or low-profile computer systems with the full-profile bracket preinstalled, and an interchangeable low-profile (half-height) bracket included. The card also supports storage software data management systems such as Storage Spaces (Microsoft), RAID Assistant (MacOS) and mdraid/mdadm (Linux), for hassle-free setup, partitioning and software RAID array building.

Connector(s)
Connector Type(s)
1 - PCI Express x2
Internal Ports
4 - SATA (7 pin, Data)
Environmental
Operating Temperature
0°C to 85°C (32°F to 185°F)
Storage Temperature
-25°C to 85°C (-13°F to 185°F)
Humidity
20~80% RH
Hardware
Ports
4
Interface
SATA
Bus Type
PCI Express
Card Type
Standard Profile (LP bracket incl.)
Industry Standards
Serial ATA 3.0 specification - SATA I/II/III (1.5/3/6Gbps)
PCI Express Base Specification Revision 3.0
Chipset ID
ASMedia - ASM1164
Packaging Information
Package Height
1.2 in [3.0 cm]
Package Length
6.7 in [17.0 cm]
Shipping (Package) Weight
4.1 oz [115.0 g]
Package Width
5.6 in [14.2 cm]
Performance
Maximum Data Transfer Rate
6 Gbps
TRIM Support
Yes
4Kn Support
Yes
S.M.A.R.T. Support
Yes
Type and Rate
SATA III (6 Gbps)
Port Multiplier
Yes
Bootable
Yes
Hardware Raid Supported
No
ATAPI Support
Yes
Physical Characteristics
Color
Red
Product Height
0.6 in [1.6 cm]
Product Length
2.8 in [7.0 cm]
Weight of Product
1.8 oz [50.0 g]
Product Width
2.2 in [5.6 cm]
Software
OS Compatibility
Windows® 7, 8, 8.1, 10, 11
Windows Server® 2012 R2, 2016, 2019
macOS® 10.10 to 12
Linux 2.6.32 and up
- MPN: 4P6G-PCIE-SATA-CARD
GTIN: 065030893879
