StarTech.com DK31C3HDPD HYBRID USB-C USB-A DOCK - TRIPLE 4K 60HZ [DK31C3HDPD]

StarTech.com DK31C3HDPD HYBRID USB-C USB-A DOCK - TRIPLE 4K 60HZ [DK31C3HDPD]

Hurry! 4 items left!

Price	$451.95
	Collect 451 Everyday Rewards points Log in to MyDeal to link your card
Shipping	Unable to calculate delivery for , please Contact Us Delivery unavailable to Change
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

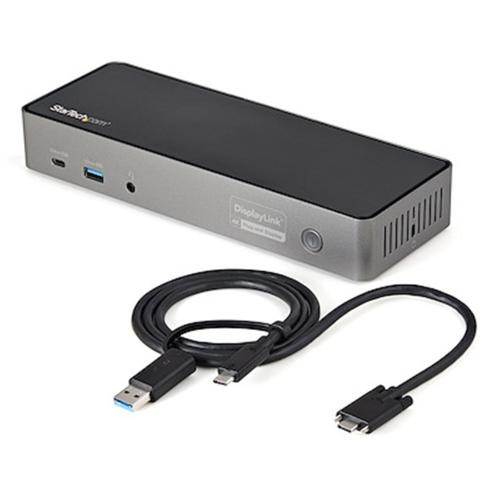

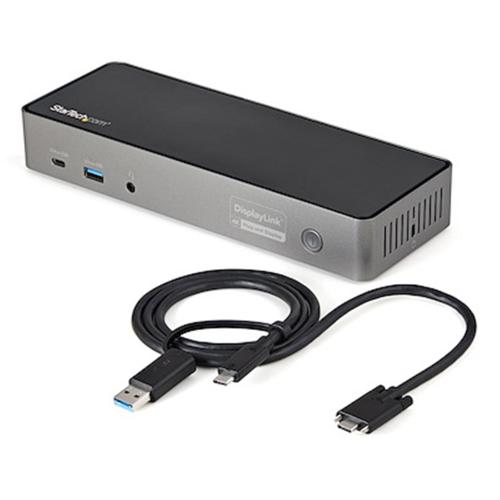

StarTech.com DK31C3HDPD HYBRID USB-C USB-A DOCK - TRIPLE 4K 60HZ

This USB-C Gen 2 10Gbps docking station?turns your USB-C ® or Thunderbolt™ 3 MacBook Pro, Windows laptop, and Chromebook into a powerful workstation. A USB 3.2 Gen 2 Type-C dock features everything you need, from triple HDMI or DisplayPort video outputs up to 4K 60 Hz to 10Gbps USB-C & USB-A downstream peripheral ports to 85W Power Delivery.
Older USB-A laptops are supported through universal hybrid USB-C/USB-A cable included and replacement or extra host cables can be purchased separately here.
HDMI & DisplayPort for Triple Monitor Outputs
This USB-C Gen 2 docking station with DP 1.4 and HDMI 2.0 HDR support, is a perfect choice for dual or triple monitor setup, supporting up to triple 4K 60Hz display output, with any combination of three DisplayPort or HDMI video interfaces, on USB-C Gen 2 (with DP 1.4 support) laptops, MacBooks and Windows-based Thunderbolt 3 laptops. Older USB-A laptops will only support dual monitor setup.
Power & Charge with 85W Power Delivery
Power and charge USB-C/Thunderbolt 3 workstation laptops & ultrabooks with 85 watt PD
Higher power delivery, MORE than other USB-C 10G Triple monitor docks. Charge smartphones and other devices with two downstream front-facing charging ports with BC 1.2 for USB-A and USB-C devices. Fast-charge ports support always-on charging so devices will charge whether or not a host laptop is connected.
Plenty of Downstream USB Ports
This USB-C Gen 2 docking station features 6 downstream USB ports in total to connect USB peripherals.
1x USB-C 3.2 Gen 2 (10 Gbps)
1x USB-A 3.2 Gen 2 (10 Gbps)
1x USB-C 3.2 Gen 1 (5 Gbps)
3x USB-A 3.2 Gen 1 (5 Gbps)
Also included, is a gigabit Ethernet port with PXE Boot and WoL support, as well as 4-position TRRS stereo audio headset/mic port.
Additional Security Features

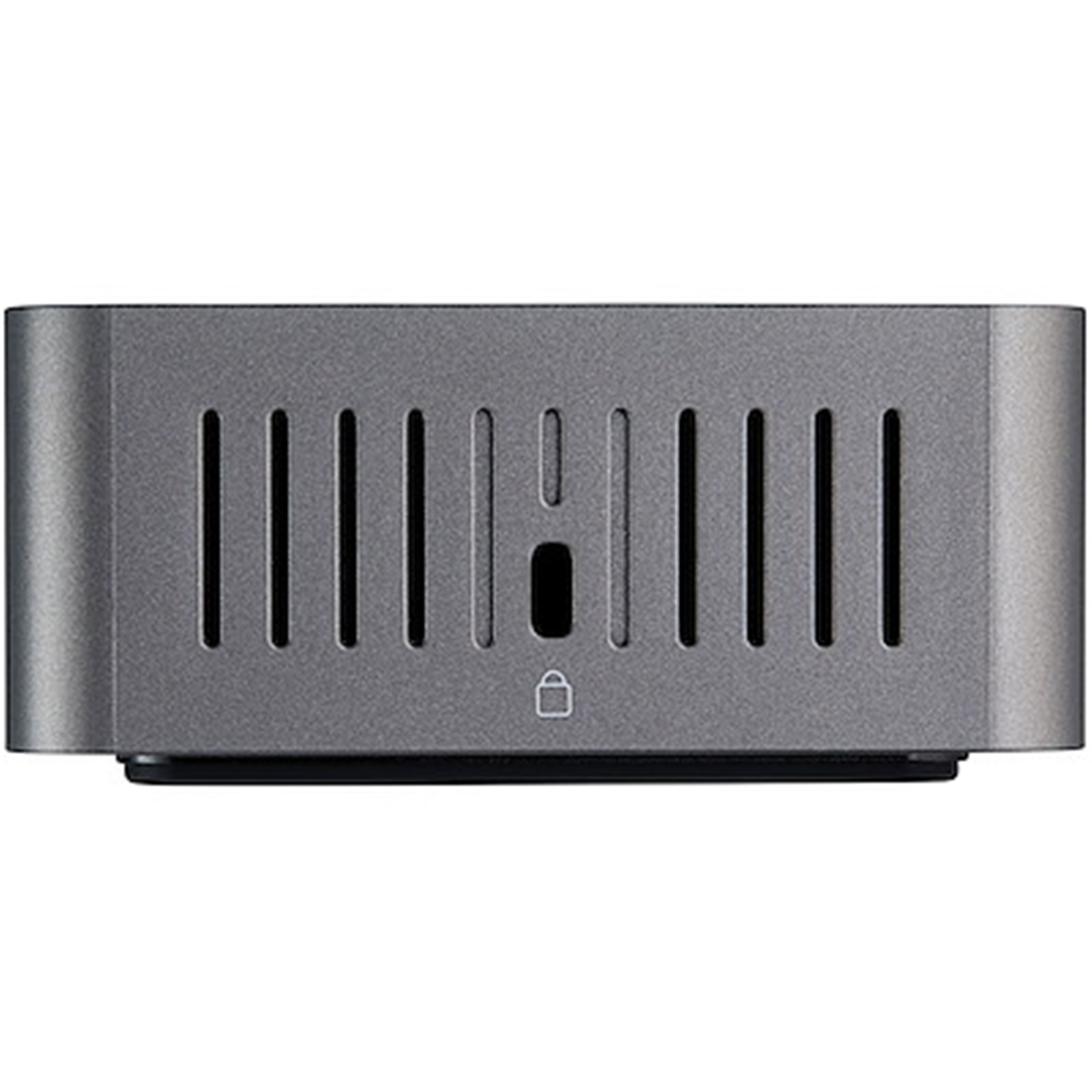

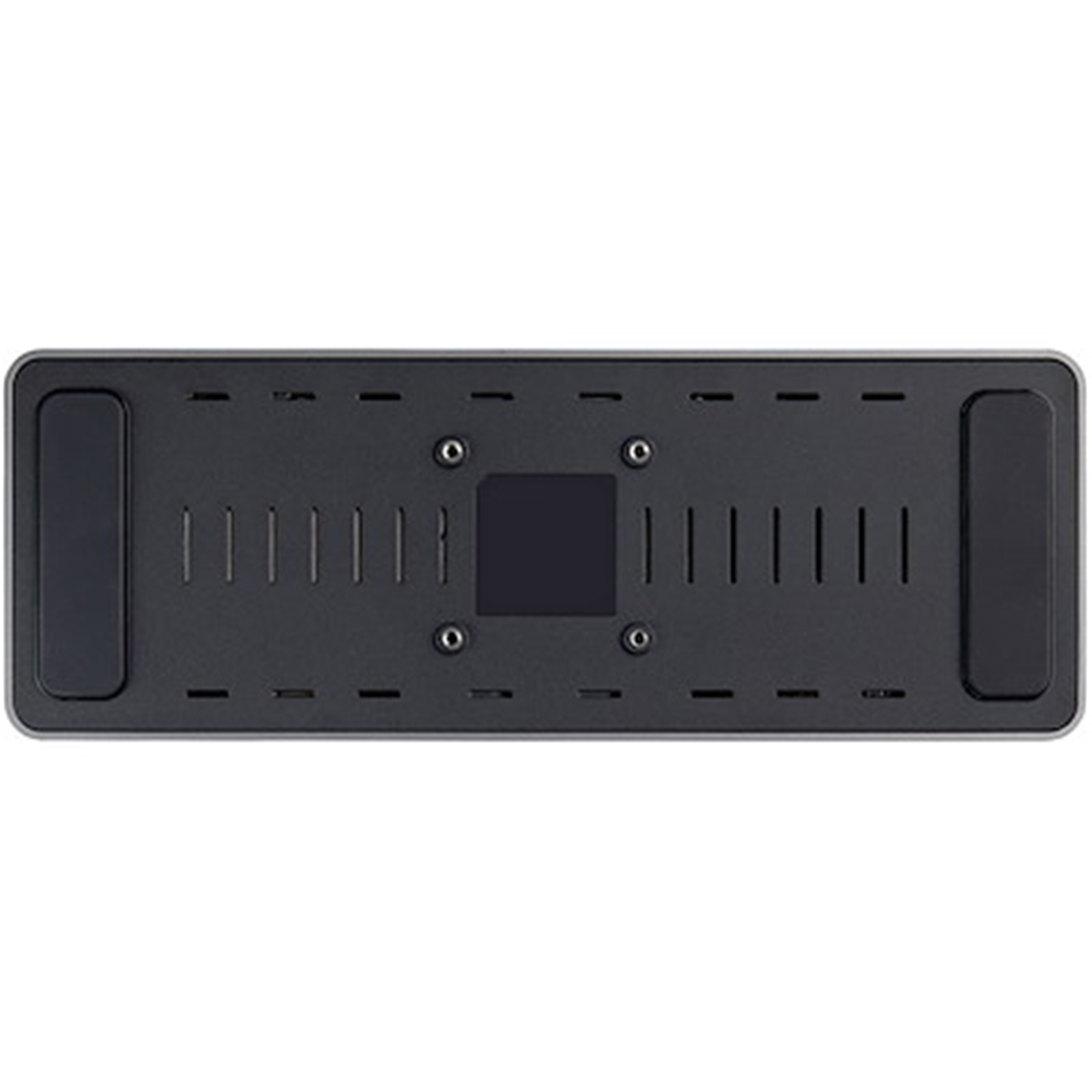

This USB-C/USB-A docking station comes with plenty of security features such as a screw-lock host port which includes a USB-IF Certified 1m 2-in-1 USB-C/USB-A screw-lock cable; a K-slot for a Kensington style laptop lock and holes to mount the dock on the desk or wall.

Connector(s)
3 - Connector Type(s)
HDMI
DisplayPort
1 - Connector Type(s)
Ethernet Gigabit
USB Type-C (24pin, Gen 2, 10Gbps)
USB 3.1 USB Type-A (9 pin, Gen 2, 10 Gbps)
USB Type-C (24 pin, 5Gbps)
USB Type-A (9 pin, 5 Gbps)
3.5mm Stereo Female 4 pos
2 - Connector Type(s)
USB 3.1 USB Type-A (9 pin, Gen 2, 10 Gbps)
1 - Host Connectors
USB Type-C (24 pin) USB 3.1 (10Gbps)
Environmental
Operating Temperature
0? to 50 ?
Storage Temperature
-20? to 70?
Humidity
0% to 95%
Hardware
4K Support
Yes
Fast-Charge Port(s)
Yes
Displays Supported
3
Ports
16
Audio
Yes
Interface
USB 3.2 Gen 2 - 10 Gbit/s
Bus Type
USB-C
USB-A
USB Pass-Through
Yes
Compatible Lock Slot
Kensington Standard Slot (K-Slot)
Chipset ID
Realtek RTS5423
Realtek RTS5411
Realtek RTS5412
Realtek RTS5451
Realtek RTD2142
DisplayLink DL6950
Packaging Information
Package Height
3.6 in [91.0 mm]
Package Length
10.0 in [25.3 cm]
Shipping (Package) Weight
3.8 lb [1.7 kg]
Package Width
6.8 in [17.2 cm]
Performance
Maximum Data Transfer Rate
5 Gbps (USB 3.0)
2 Gbps (Ethernet; Full-Duplex)
Maximum Analog Resolutions
1080p
Maximum Digital Resolutions
4K 60Hz
Type and Rate

USB 3.2 Gen 2 - 10 Gbit/s
USB 3.0 - 5 Gbit/s
UASP Support
Yes
Compatible Networks
10/100/1000 Mbps
PXE
Yes
Full Duplex Support
Yes
MTBF
40 841 hrs
Physical Characteristics
Color
Black & Gray
Product Height
1.5 in [37.0 mm]
Product Length
9.2 in [23.3 cm]
Weight of Product
14.2 oz [402.0 g]
Product Width
3.3 in [84.0 mm]
Material
Aluminum and Plastic
Cable Length
39.4 in [100 cm]
Power
Power Source
AC Adapter Included
Power Delivery
85W
Input Voltage
100 - 240 AC
Input Current
2.5A
Output Voltage
20V DC
Output Current
7.5A
Plug Type
M
Software
OS Compatibility

Windows 10
Windows 8.1
Windows 8
macOS v10.6 to macOS v10.12, 10.14 to 11.0
Ubuntu 18.04, 20.04
Chrome OS
Special Notes / Requirements

Note

DisplayLink docking stations and video adapters support more than one external display on Apple's M1-based Mac. Requires driver installation. Please contact StarTech.com support for a recommendation based on your specific setup.

What's in the Box

1 - Included in Package

Docking Station
USB-C Screw Lock Cable with USB-A Adapter
Universal Power Adapter (NA, JP, ANZ)
Quick-Start Guide
- MPN: DK31C3HDPD

GTIN: 065030881937
