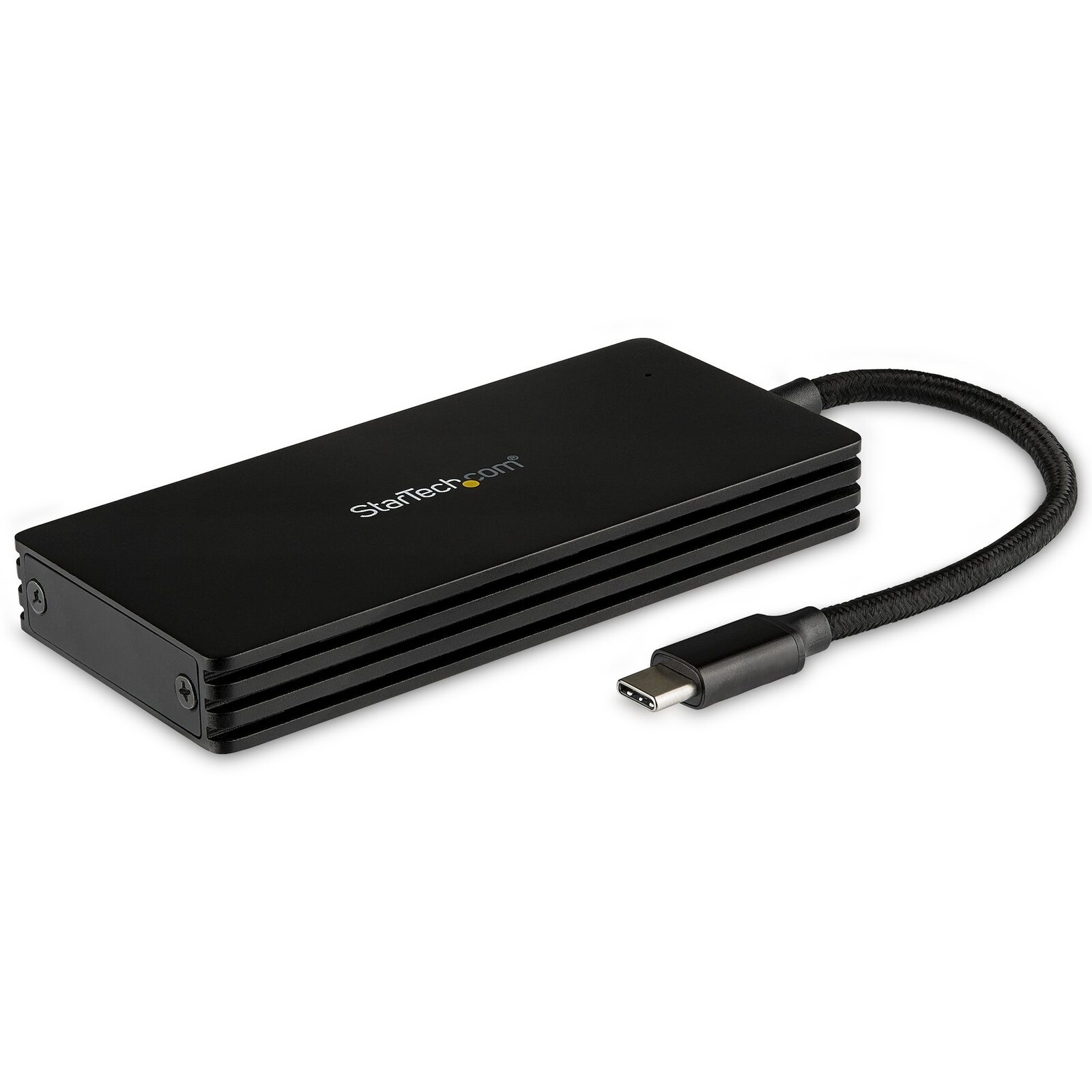

Star Tech M.2 SSD Enclosure for M.2 SATA Drives - USB 3.1 - USB C
Add high-performance external data storage to your USB-C laptop, tablet or desktop computer, with this SATA M.2 SSD enclosure. It lets you use your SATA M.2 drive as an ultra-fast external storage solution over a USB 3.1 Gen 2 connection. It’s ideal for your MacBook, Dell XPS, Chromebook Pixel or other USB Type-C device.

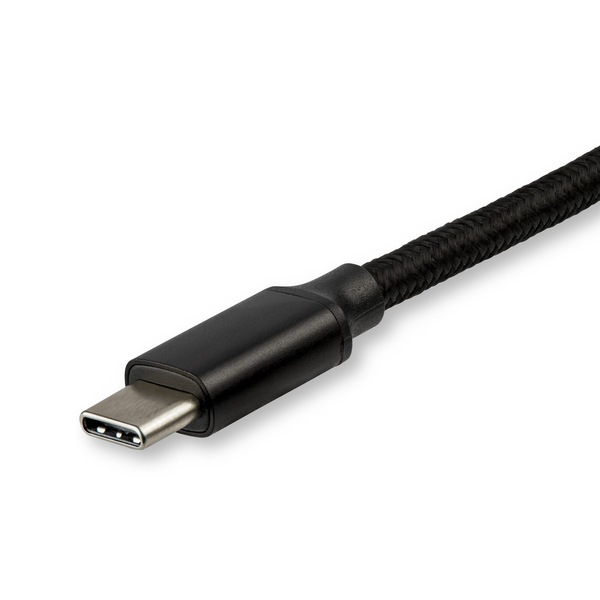

The compact M.2 SATA to USB adapter is easily portable and gives you high-speed access to your data, wherever you go. The integrated USB-C cable (6"/15.2 cm), means you’re always ready to plug it in, without having to remember to bring along a cable.

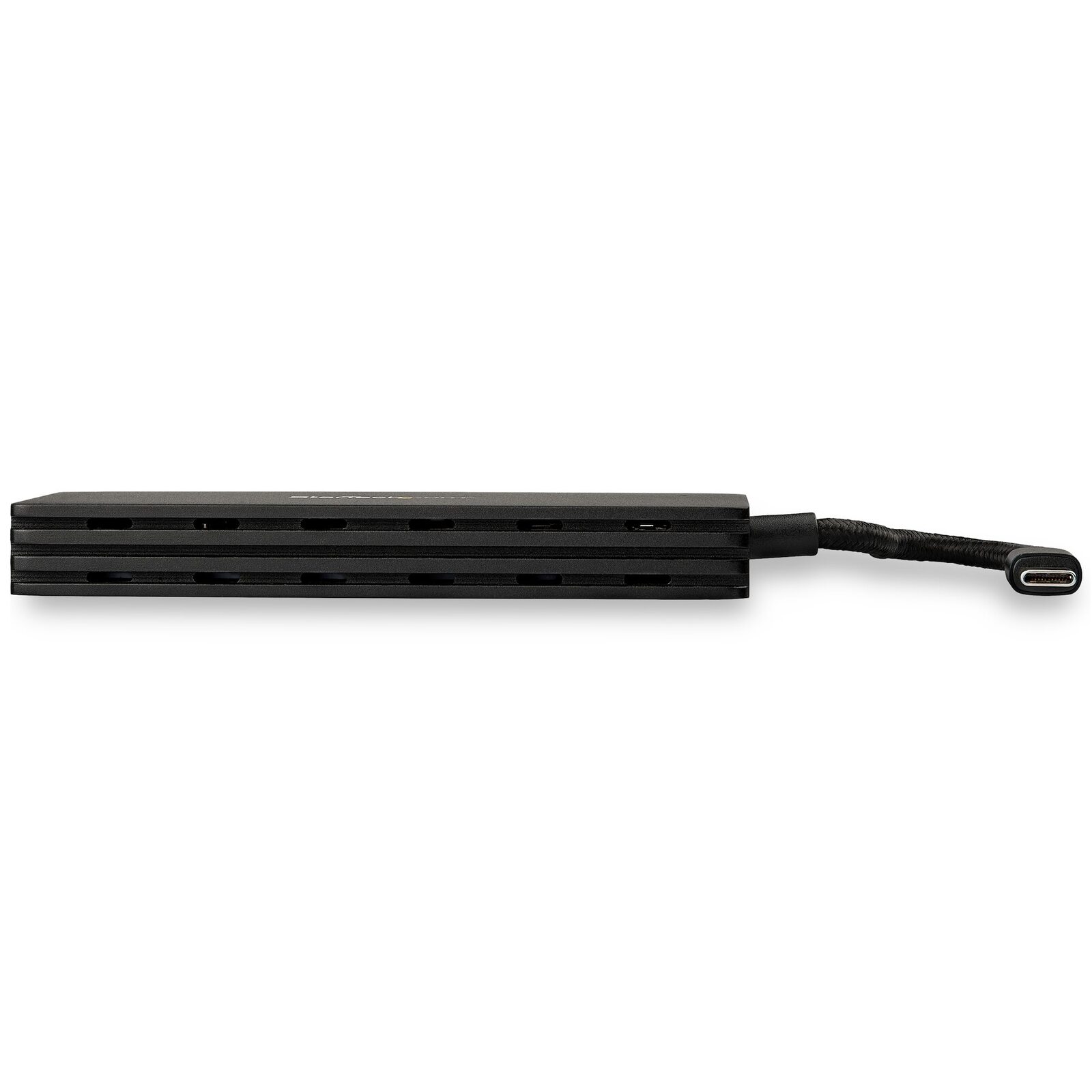

The sturdy aluminum and plastic enclosure encases your M.2 SATA SSD and features built-in ventilation that improve heat dissipation to help keep your drive at a suitable operating temperature.
Easily use your M.2 SATA drive as external data storage. This M.2 NGFF SSD enclosure provides a simple connection to your M.2 SATA SSD over USB 3.1 Gen 2. You can transfer files quickly, without bottlenecks, using a SATA M.2 SSD as your external drive.
The enclosure supports common M.2 SATA SSDs and multiple drive lengths, including: 42 mm (2242), 60 mm (2260), and 80 mm (2280). The USB to M.2 SATA enclosure works with USB-C host devices and is also compatible with Thunderbolt 3 USB-C ports.
Hardware
Supported Drive Height(s) : 2280
Indicators
LED Indicators : Power & Activity
Packaging Information
Package Height : 30 mm [1.2 in]
Package Length : 175 mm [6.9 in]
Package Width : 14.5 cm [5.7 in]
Shipping (Package) Weight : 0.2 kg [0.4 lb]
Performance
General Specifications : Not compatible with M.2 NVMe or AHCI PCI-Express SSDs
Maximum Data Transfer Rate : 6 Gbps
MTBF : 50,000 hours
TRIM Support : Yes
Type and Rate : SATA III (6 Gbps)
USB 3.1 Gen 2 - 10 Gbit/s
UASP Support : Yes
Physical Characteristics
Cable Length : 160 mm [6.3 in]
Color : Black
Material : Aluminum
Product Height : 1.3 cm [0.5 in]
Product Length : 110 mm [4.3 in]
Product Width : 5 cm [2 in]
Weight of Product : 105 g [3.7 oz]
Power
Power Source : USB-Powered
Prominence
Description CDW 75 - 1st Line : StarTech.com M.2 SSD Enclosure for M.2 SATA Drives - USB 3.1 - USB-C
Software
OS Compatibility : OS independent; No software or drivers required
Special Notes / Requirements
Note : Windows 7 and earlier Windows versions do not support TRIM with USB to SATA devices.
What's in the Box
Included in Package : Assembly Screws
M.2 SATA Enclosure with Integrated USB-C Cable
Quick-Start Guide
Screwdriver
Set of Drive-Mounting Hardware
Hardware
Supported Drive Height(s) : 2260
2242
Number of Drives : 1
Interface : USB 3.1 Gen 2
Drive Size : 22mm - M.2 SATA
Drive Installation : Fixed
Compatible Drive Types : M.2 SATA (NGFF, B+M-Key)
M.2 (SATA, B-Key, NGFF)
Chipset ID : JMicron - JMS580
Bus Type : USB 3.1 Gen 2
Environmental
Storage Temperature : -20°C to 50°C (-4°F to 122°F)
Operating Temperature : 5°C to 35°C (41°F to 95°F)
Humidity : 20% ~ 80% RH
Connector(s)
Host Connectors : USB Type-C (24 pin) USB 3.1 (10Gbps) Male
Drive Connectors : M.2 (SATA, B-Key, NGFF) Receptacle
This item comes with a 2 Years warranty
