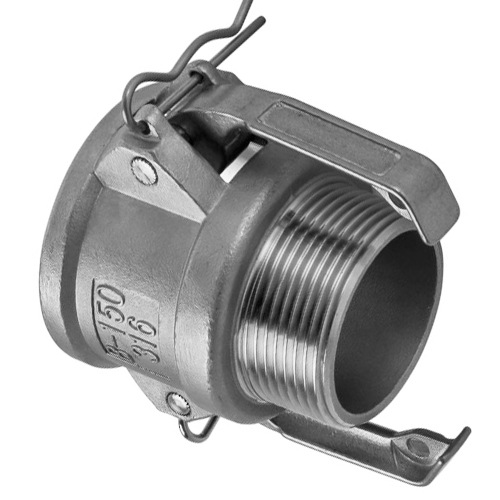

Stainless Steel 316 Camlock Coupling (Type B) - BSP Thread

Stainless Steel 316 Camlock Coupling (Type B) - BSP Thread

Hurry! 9 items left!

Price	From $10.31
	Collect 10 Everyday Rewards points Log in to MyDeal to link your card
Size	Choose... Please select an option
Shipping	Unable to calculate delivery for , please Contact Us Delivery unavailable to Change
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

Stainless Steel 316 Camlock. MIL A-A-59326A / MIL C-27487

The coupling is connected by simply opening the coupler arms and inserting the adapter into the coupler. The cam arms are then closed under normal hand pressure to complete the joint.
Manufactured to interchange with all product produced to Specs MIL A-A 59326 / MIL C-27487. (Size 1/2" (15mm) fittings are not covered by Mil Spec A-A 59326, this size is to manufactures specification only)
Reliable quick connect coupling for use on hose, pipe, tubing and tanks conveying a wide variety of liquids, dry bulk materials, oil, powder, cosmetics, foodstuffs, offshore, pumps, adhesives, dyes, pharmaceuticals, pellets, some hydrocarbon, chemicals and many more. Note: Not to be used for compressed air and steam application.
Standard Buna-N seal installed
Stainless steel 316 material

CAMLOCK COUPLINGS
TYPE	DESCRIPTION
Type A	Male Adaptor - Female BSP
Type B	Female Coupler - Male BSP
Type C	Female Coupler - Hose Tail
Type D	Female Coupler - Female BSP
Type DC	Dust Cap Female End Coupler
Type DP	Dust Plug Male End Adaptor
Type E	Male Adaptor - Hose Tail
Type F	Male Adaptor - Male BSP

Type B Camlock - Female Coupler x Male BSP - Stainless Steel
Part Number	Coupling Size (In)	Coupling Size (mm)	A (mm)	B (mm)	E (mm)	G (mm)	Thread Type	WEIGHT (kg)
6202.02.15	1/2"	13	14	48	32	53	BSPPT	0.14
6202.02.20	3/4"	19	14	53	32	53	BSPPT	0.18
6202.02.25	1"	25	24	62	40	60	BSPPT	0.25
6202.02.32	1. 1/4"	32	28	66	48	78	BSPPT	0.38
6202.02.40	1. 1/2"	38	35	71	49	85	BSPPT	0.44
6202.02.50	2"	51	51	77	54	96	BSPPT	0.68
6202.02.65	2. 1/2"	63	58	85	59	110	BSPPT	0.81
6202.02.80	3"	76	72	92	60	127	BSPPT	1.13
6202.02.94	4"	102	98	95	62	156	BSPPT	1.54
6202.02.96	6"	152	150	102	62	240	BSPPT	3.20
