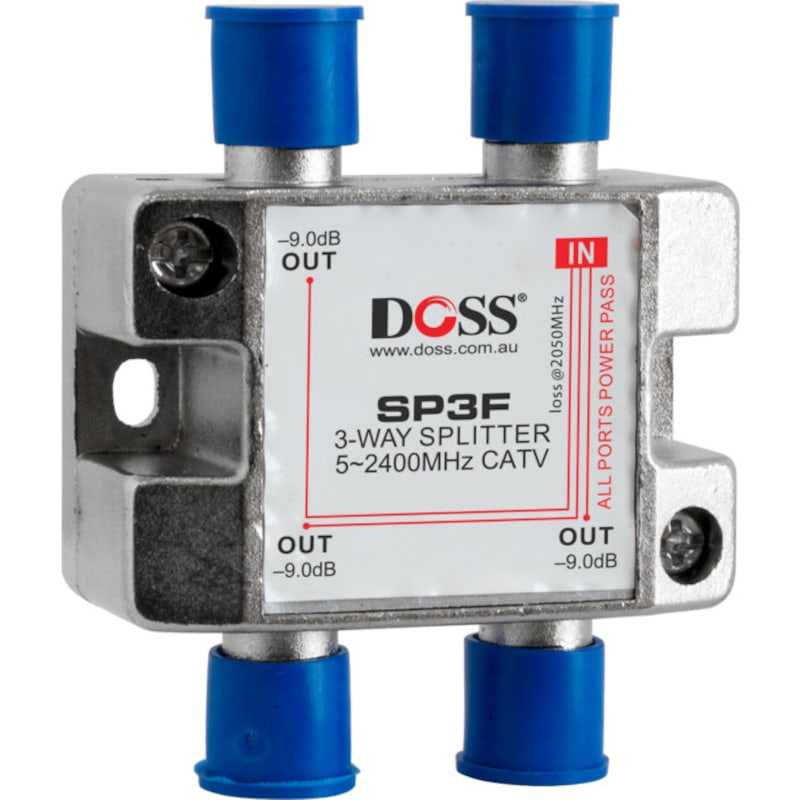

DOSS SP3F 3 Way 'F' Splitter or Combiner DC Pass Through 2.4Ghz High Quality Satellite & Cable

DOSS SP3F 3 Way 'F' Splitter or Combiner DC Pass Through 2.4Ghz High Quality Satellite & Cable

Price	$10
	Collect 30 Everyday Rewards points Score 3x points on every order Ends 11:59pm 03/12/2024. Exclusions & T&Cs apply Log in to MyDeal to link your card
Shipping	Unable to calculate delivery for , please Contact Us Delivery unavailable to Change
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

High quality satellite & cable TV compatible 75ohm splitters in zinc diecast housing.

""F"" type connections designedto operate from 2GHz down to 5 MHz permitting use in interactive systems
Nickel plated zinc die-cast housings
Tongue & groove housing design provides high RFI shielding for ?120 dB
Frequency response of 5-2400 MHz
High precision machine threaded F-ports
Power pass 12 V DC, 500 mA all ports
Usable for special channels and return channels
Impedance: 75
For both VHF and UHF frequencies
Built in grounding block
No IR passing
Can be used to combine
Output dB loss was tested @ 2050mHZ

_	_
_	_	2-WAY	3-WAY	4-WAY	6-WAY	8-WAY
_	Frequency Range (MHz)	Nominal (dB)	Nominal (dB)	Nominal (dB)	Nominal (dB)	Nominal (dB)
Insertion Loss	5 - 40	4.5	6.9	8.0	12.5	13.5
40 - 1000	4.5	7.0	8.5	13.6	13.6
1000 - 1750	5.5	8.5	9.8	14.7	16.0
1750 - 2300	7.2	11.0	12.6	16.5	18.0
_
Isolation	5 - 40	14	18	20	20	20
40 - 1000	20	21	22	22	20
1000 - 2300	20	22	21	21	22
_
Return Loss	5 - 40	14	12	12	9	9
40 - 1000	13	16	14	13	13
1000 - 2050	15	14	13	13	13
2050 - 2300	12	12	12	12	12

Color:#FFFFCC; padding: 7px"">

Note:
Doss splitters will also function as combiners.

When combining modulated signals, leave at least a 2 channel separation i.e. Channel 21 for the first channel and Channel 24 for the next etc.
It is also recommended that if you also have an antenna connected to the system, you use a when selecting the appropriate channels. The spectrum analyser function will display where there are the lowest levels of interference i.e. where the modulated should be placed in the radio spectrum.
