Hafele DBB Lock Morticer Jig 00167700 + LatchMate Carpentry Chisel 09350200

Hafele DBB Lock Morticer Jig 00167700 + LatchMate Carpentry Chisel 09350200

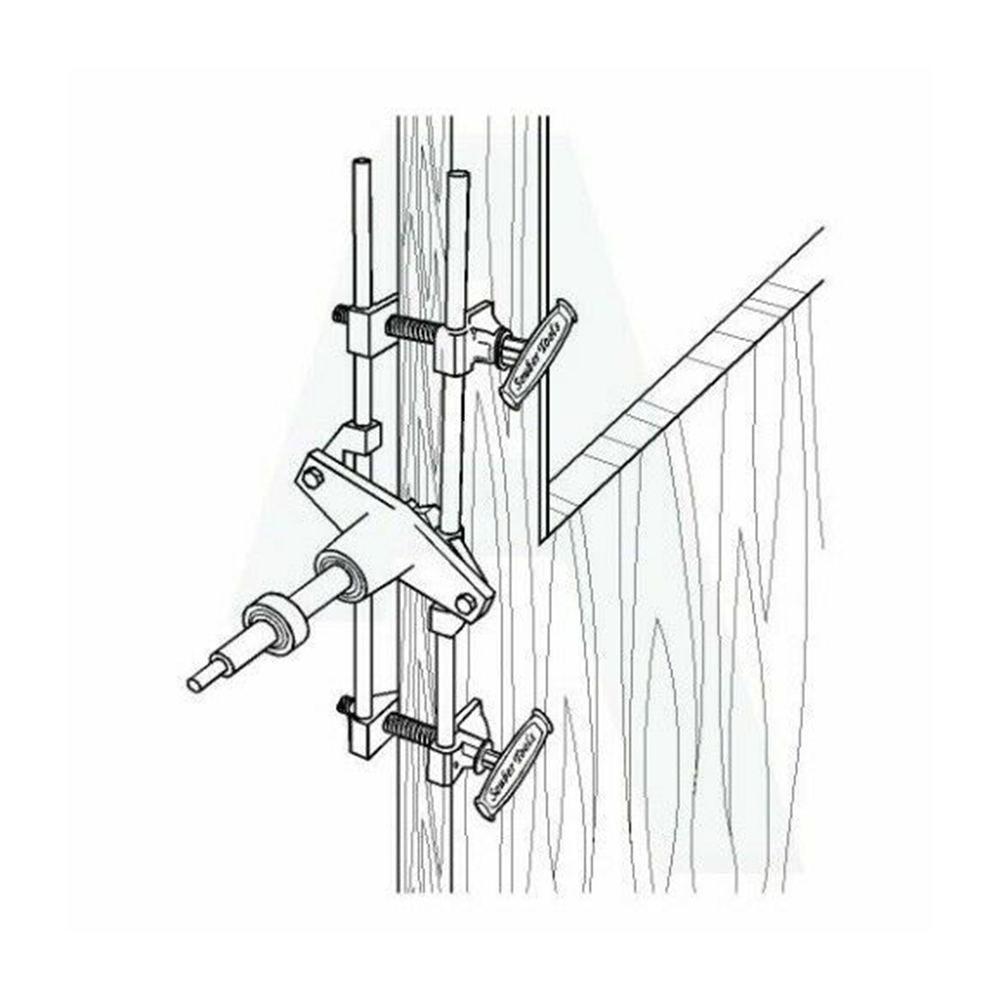

Morticer Jig is a tool that guides the machining tool.

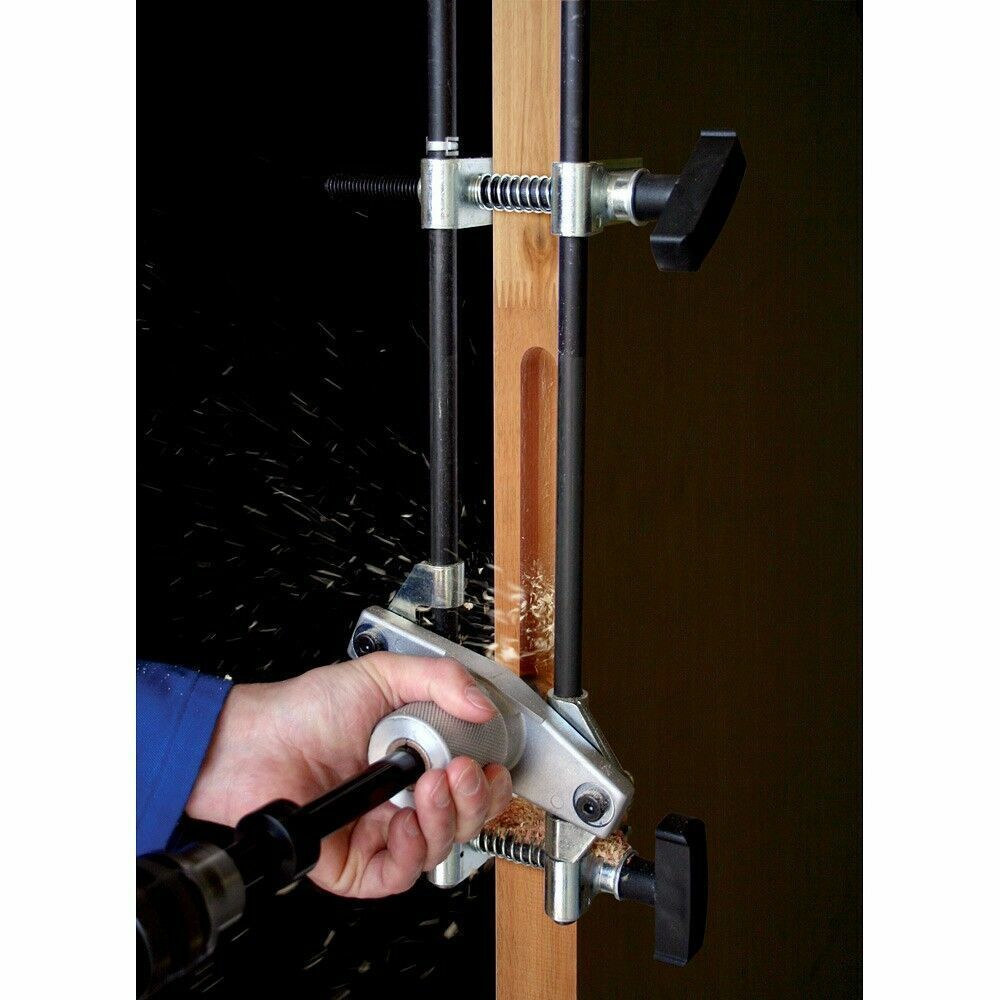

Morticer Jig Function - designed specifically to guide the drilling bit to cut mortices for door locks and their faceplates. It is quick and simple to set up, self centring and locks onto the door edge securely.

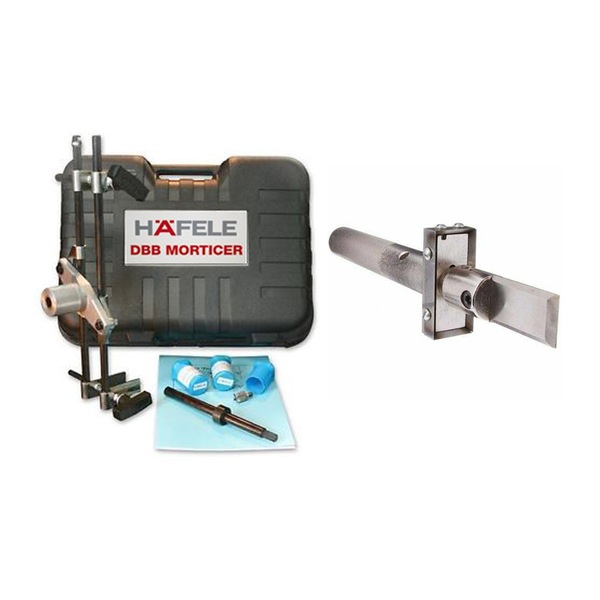

Includes:

• 1 x Hafele DBB Lock Morticer Jig (001.67.700)
• 1 x LatchMate Carpentry Chisel (09350200)

Hafele DBB Lock Morticer Jig
001.67.700

The maximin mortice depth cut is 180mm and the max vertical cut is 240mm.

Used and acclaimed by locksmiths and builders alike, the DBB morticer has proved itself an invaluable tool for anyone regularly fitting mortice locks.

Features:

• Cuts a mortice for the body and for the face plate.
• Fast and accurate on doors from 30mm - 85mm thick
• Can cut door hinges and also some strike plates and electric releases.
• includes faster carbide cutters for wood morticing.
• Uses vertical guides, height and depth stops to ensure you do not overrun the cut area.
• Wide range of accessories and special attachments.
• All parts are replaceable.
• Robust construction and precision manufacture.
• Supplied complete with operating manual and plastic carry case.
• Plunging cutters now available.

Specifications:

• Carbide Wood Cutters: 19mm, 22mm and 25mm
• Max. door thickness (standard housing): 55 mm
• Max. door thickness (special housing): 80 mm
• Max. vertical movement (average 45 mm thick door): 240 mm
• Door and frame with offset morticer max. 95 mm
• Material: Steel jig rods. Aluminium housing and clamps

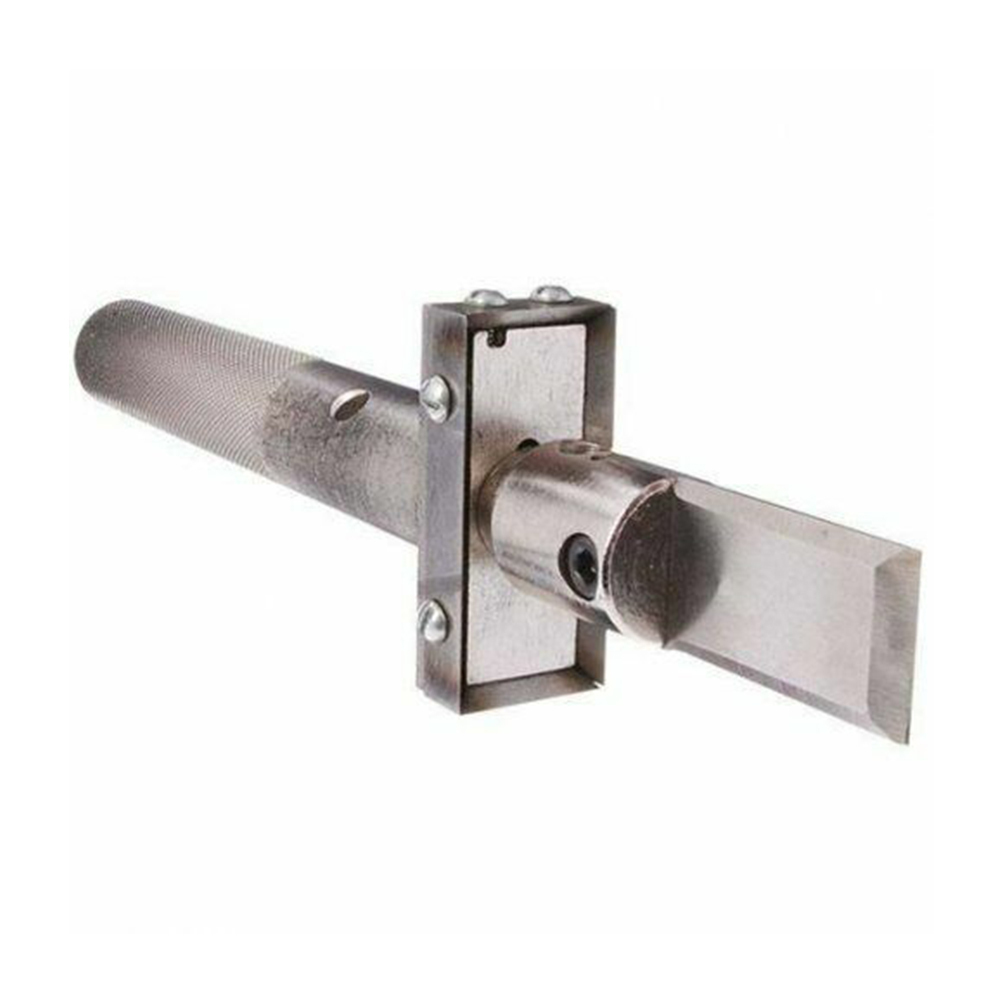

LatchMate Carpentry Chisel
09350200

The LatchMate is a combination tool that easily marks out and chisels latch holes in doors.

Features:

• Unique combination tool that easily marks out and chisels latch holes in doors
• Eliminates splitting and saves valuable time
• Consists of a chisel with a four sided border blade
• Can be used when either installing or repairing tubular latches
• Blade is easily removed for sharpening
• Cuts out the exact latch shape to the correct 3mm depth required
• Angled bottom and top blade run the full width of the chisel
• Suitable for use on both softwoods and hardwoods
• Simple and easy to follow instructions
• Manufactured from steel
• Supplied in a protective plastic clipped box
• Winner of the ABC's New Inventors People's Choice Award
