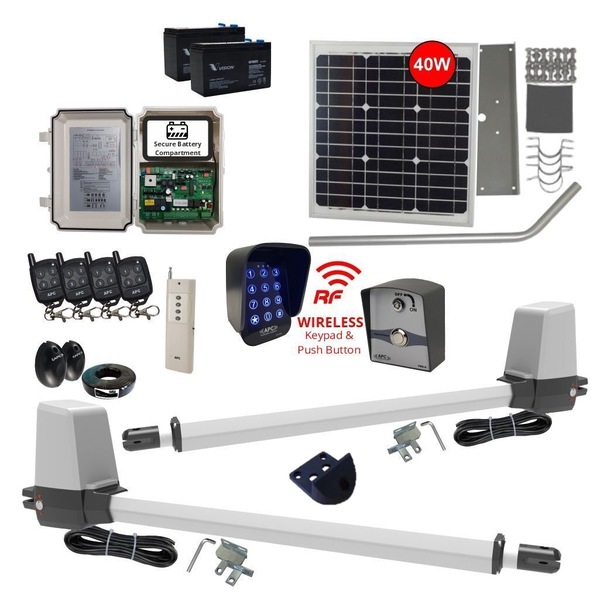

Kit Includes
- Actuator Kit Double Gate Automation Electric Motor(QTY: 2)
- Weatherproof Control Box with Built in Battery Compartment(QTY: 1)
- Four Button Keyring Remote(QTY: 4)
- Four Button Long Distance Remote(QTY: 1)
- 7aH High Capacity Battery(QTY: 2)
- Two Channel Wireless Keypad(QTY: 1)
- Wireless Double Push Button Switch with Key Isolation(QTY: 1)
- Gate Sensor | Photoelectric Gate Safety Sensor - Safety Beam Infrared Photocell Gate Sensor Detector(QTY: 1)
- 10m 4 Core Non Shielded Cable(QTY: 1)
- 65mm High Centre Driveway Rubber Gate Stop with Steel Base(QTY: 1)
- 24v 40 Watts Solar Panel(QTY: 1)
- Solar Panel Fence Post & Bracket for 40 Watt Solar Panels(QTY: 1)
Product Information
Heavy Duty Quick Operation Aluminum Telescopic Linear Actuator
Engineered to be Fast, Powerful, and Quiet. The Heavy Duty 24V actuator is comprised of an aluminum piston housing and a stainless steel piston with an elegant light grey powder coat for a neutral non-obtrusive feel.
Universal left and Right Side installation.
Simple 2 wire low voltage system making this motor a breeze to install for all skill levels.
The system can handle light and heavy gates up to 125kg maximum weight or up to 2.5m maximum length for each gate. (250kg maximum weight 5m maximum length for double gate)
Engineered to last
Perfect gear cuts allow for almost silent operation with no movement in the gear system.
Sealed bearings at each end of the gear set for a 100% smoothness and consistency every single cycle.
Ribbed casing for extreme rigidity and the ultimate holding strength with no flex whatsoever.
Emergency Clutch Override
The simplest of override systems simply slot in the key and turn towards the unlock icon to operate the gates manually. Once finished just turn back to the locked icon.
Actuator Specifications
| Gear Type | Metal Lead Screw, Mixed Composite |
| Motor Voltage | 24v DC |
| Manual override | Using Allen Key |
| Working temperature | -10° - 50° |
| Duty Cycle | 20% |
| Maximum stroke | 400mm |
| Gates size | 5m max |
| Gate weight | 250kg max |
Installation Geometry
Weatherproof Control Box
The CBSW24 series smart control panel is an easy to connect, simple to setup and feature rich control box vast amount of features as listed below:
Fully weatherproof with a seal
Pre Connected Weatherproof Glands for Wiring Connections
Hinged door with a padlock slot for added security
System Features
Standalone Solar System
High Capacity Battery System
Built In Solar Regulator
Automatic Setup Feature to learn the Ramp Up and Slow Down points of the gates
Automatic Feature Learning will learn all features of the remote with a simple pairing process
Ultra High Security Rolling Code remote system allows for the highest form of security for entry to your property
Adjustable Automatic Close time up to 3 minutes
Safety Features
Adjustable Over current adjustments
Safety Sensor connection input
Automatic Courtesy Light Output
Special Features
Party mode: The automatic closing can be cancelled using button 3 on the remote control buttons when expecting a visitor to arrive, reversing a trailer and numerous other uses.
Service Gate Function (12V 250mA max.). Using the second lock output will allow the user to power and control a second electric striker installed on a pedestrian access gate the second lock is powered from the control panel and controlled using button 4 on the remote. Wired and wireless Accessories can also be use to control the Lock 2 function.
Accessories Compatibility
Constant 24V DC Accessories Output
Switched 24V DC Output for closing direction (used for safety devices to conserve power, powered on when required)
Open/Stop/Close Inputs for Gate Operation
Smart Opening & Closing LED indicators: Green LED on during opening and Red LED on during the closing
Automatic Electric Lock Output
Controlling Options
Any or all of the following may be connected to operate the gate
Remote controls
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App Based Control)
GSM Control Systems (Mobile Call/SMS based Control)
24V 20 Watt Solar Panel (Upgradable to 20 Watt or 60 Watt options)
Mono Crystalline silicon solar cells with 3mm tempered glass and two sheets of tedlar-polyeaster-tedlar (TPT) and ethylene Vinyl acetate (EVA). This protects against moisture penetrating into the module. The solar panel is supplied with a fence mounting bracket system along with a pre-connected 5 metre cable (maximum cable distance is 20 metres), the solar panel is also fitted with a diode to prevent feed back from the batteries.
| Specifications |
| Maximuim Power | 20W/40W/60W |
| Optimum Operational Voltage | 36V |
| Open Circuit Voltage | 43.2V |
| 20W Panel Dimensions | 640 x 300 x 25mm |
| 40W Upgrade Panel Dimensions | 535 x 515 x 30mm |
| 60W Upgrade Panel Dimensions | 805 x 535 x 30mm |
24V 9aH Battery System
Supplied with the automation kit the 24V 9aH battery system will allow for continued use of the gate system wether in day or night. The system can operate for up to one week of regular residential use without any charge from the solar panel (winter months/wet season) and will automatically recharge from sun light. When the system batteries are fully charged it will continue to float charge to keep the batteries topped up ready for use. In a case of extended use requirments or higher duty there are upgrade options to 17aH and 33aH battery systems.
Remote Specifications
| Power Input | 20W 24V Solar Panel (Upgradable) |
| Regulator | Built In On Board Regulator |
| Motor Output Voltage | 24v DC |
| Battery System | 24V 9aH (Upgradable) |
| Working temperature | -10° - 50° |
| RF | Rolling code 433.92mhz |
| Lock Output (Primary) | 24V DC |
| Lock Output (Secondary) | 12V DC |
| Auxiliary Inputs | 0V Momentary Pulse |
| Accessories Voltage | 24V DC |
| Over current | 1A to 5A |
Long Distance Remote
The RC450S Long range remote is capable of achieving operating distances of up to 400 metres, coupled with the add on booster antenna it can reach up to 800 metres. With these distances you can operate the gate system from around the property, at the home or from the workshop. Multiple long range remotes can be used on the one system.
Wireless Keypad Features
- Up to 11 pin codes can be programmed
- Low Power Consumption only 18uA in standby.
- Easy to replace AA battery-powered system (supplied) with up to two years usage on general use.
- High strength tempered glass faceplate with an ultra-modern and highly reliable touch-sensitive operation.
- Blue Backlight illumination upon touch with an automatic timeout to return to standby.
- Two dedicated LED indicators indicating and accepted pin code (green) and also security lockout (red)
- IP53 Weatherproof rated and suited for outdoor and indoor environments.
- Built in Anti Tamper alarm and security lockout to help prevent theft and unauthorized usage.
- Pin code scramble allowing the user to input a series of random number before the pin code to prevent pin code theft.
Wireless Push Button with Isolation Key
The wireless push button switch is a simple and easy to use method to operate the gate. It is mounted in the general area of the gate and can be isolated by using the supplied keys without affecting the rest of the system, this is handy if you want to continue using the remotes or any other method of operation but wish to stop use of the push button itself.
The wireless push button communicates with the control board using the same rolling code 433mhz frequency as the remote thus eliminating the need for any extra add ons. If required the wireless push button can be upgraded to a wireless keypad for higher access security using pin number.
The push button can be used for over 50 metres in operating distance.
65mm Rubber Gate Stop
The supplied 65mm rubber gate stop with steel base is used to for the gate alignment and tension whilst they are in the closed position, it also allows the gates to be mounted up to 50mm off the ground.
Being that the minimum vehichle height from the ground is 100mm it will not interfere with the vehichle. In the case that the vehichle was lower than the typical minimum the stopper would not cause any damage as it is constructed from solid rubber but retains its general strength from the steel plate used at the bottom side contacting the driveway.
