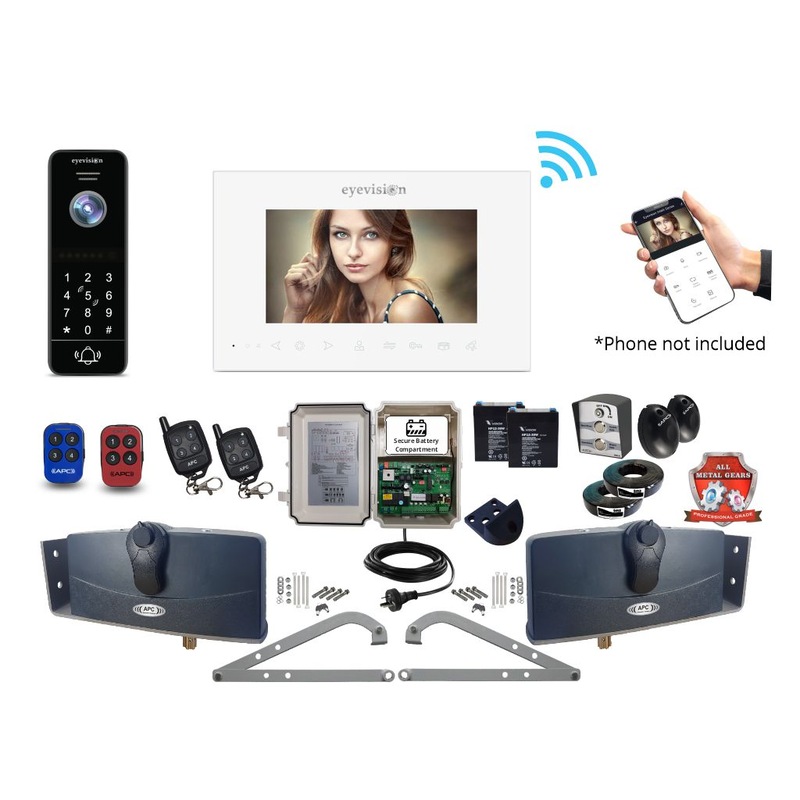

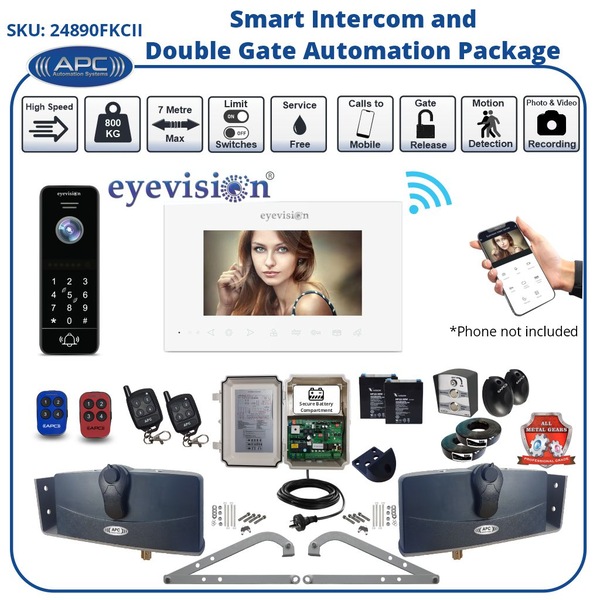

Gate Opener Kit Includes
- APC-790 Articulated Motor, Cover and Assembly Hardware (QTY: 2)
- Forward Mounting (FM) Bracket System (QTY: 2)
- APC-790 Adjustable Long Arm System (QTY: 2)
- APC Weatherproof Control Box with Built in Battery Compartment and 1.2m Power Cord (Ready to Plug In) (QTY: 1)
- APC Four Button Keyring Remote (QTY: 2)
- APC 4 Button Sunvisor Remote Controls(QTY: 2)
- 5aH Battery Backup (QTY: 2)
- APC Wired Double Push Button Switch with Key Issolation (QTY: 1)
- 5m 2 Core Non Shielded Cable (QTY: 1)
- Gate Sensor | APC Photoelectric Gate Safety Sensor - Safety Beam Infrared Photocell Gate Sensor Detector (QTY: 1)
- 10m 4 Core Non Shielded Cable (QTY: 1)
- 65mm High Centre Driveway Rubber Gate Stop with Steel Base(QTY: 1)
- Eyevision Intelli Keypad and IC Card Outdoor Station (2x IC Cards and Power Adapter Supplied) Intercom System (QTY: 1)
- Eyevision Intelli 7inch Smart 4 Wire indoor Intercom Monitor with Wi-Fi feature for smartphone APP (includes power adapter) (QTY: 1)
Product Information
Extra Heavy Duty High-Speed Articulated Arm System
Reliability, Durability Weatherproof
Designed in Australia the system is engineered and built to withstand the test of time, the Extra Heavy Duty unit is built only with the best and most reliable components giving it the capacity of 3.5m each gate or 300kg of weight each gate. Furthermore it is completely weatherproof and concealed to suit all weather conditions.
All Metal Gear Box (NO PLASTIC OR NYLON)
Six strong steel gears with one copper transfer gear along with six sealed bearings (two per gear stack) making it one of the most robust and smooth gear motors out there.
Limit Switches and Manual Override
Built in double-sided manual override shaft creating a universal motor for left or right side installations. Supplied with two lockout keys for security and an easy to use fixed on lever.
360° Adjustable limit cams to ensure a precise cut off for the open and closed positions and furthermore increase the motors life.
24V Extra Heavy Duty DC Motor
Strong DC motor with thick 15mm Output Shaft centered on a bearing at each end to ensure perfect alignment through all directions of operation.
Adjustable Long Span Powder coated Steel Arms
Over engineered 10mm thick steel arms are powder coated and customisable in length. The Primary and Secondary Arms which can span up to 1100mm towards the centre of the gate or be cut back to suit low clearance installations. Ball bush flexible joints allow for gates to continue to operate whilst gates are out of level and even operate tilting/rising gates up to 20°.
Forward Mount Bracket
Powder Coated Forward Mounting Bracket which can be used for post and pillar installations. 7mm thick and one piece (not welded) this bracket will not bend or break over time. 150mm in width but being a solid steel bracket additional mounting holes can be drilled to suit narrower posts (100mm).
Weatherproof Control Box
The CBSW24 series smart control panel is an easy to connect, simple to setup and feature rich control box vast amount of features as listed below:
Fully weatherproof with a seal
Pre Connected Weatherproof Glands for Wiring Connections
Hinged door with a padlock slot for added security
Pre-Wired and ready to plug into a regular 10A power point
System Features
Automatic Setup Feature to learn the Ramp Up and Slow Down points of the gates
Automatic Feature Learning will learn all features of the remote with a simple pairing process
Ultra High Security Rolling Code remote system allows for the highest form of security for entry to your property
Adjustable Automatic Close time up to 3 minutes
Pedestrian Function allows for only one of the gates to be operated, this can be toggled by remote, keypad or push button
Second Motor Delay Time, the second gate motor can operate simultaneously with the first gate motor or be delayed by 3 to 5 seconds.
Safety Features
Adjustable Over current adjustments
Safety Sensor connection input
Automatic Courtesy Light Output
Special Features
Party mode: The automatic closing can be cancelled using button 3 on the remote control buttons when expecting a visitor to arrive, reversing a trailer and numerous other uses.
Service Gate Function (12V 250mA max.). Using the second lock output will allow the user to power and control a second electric striker installed on a pedestrian access gate the second lock is powered from the control panel and controlled using button 4 on the remote. APC Wired and wireless Accessories can also be use to control the Lock 2 function.
Accessories Compatibility
Constant 24V DC Accessories Output
Switched 24V DC Output for closing direction (used for safety devices to conserve power, powered on when required)
Open/Stop/Close Inputs for Single Gate Operation and Double Gate Operation
Loop Detector Connection Input for an Open Only Toggle along with a return to open if closing
Smart Opening Closing LED indicators: Green LED on during opening and Red LED on during the closing
Automatic Electric Magnetic Lock Output
Controlling Options
Any or all of the following may be connected to operate the gate
Remote controls
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App Based Control)
GSM Control Systems (Mobile Call/SMS based Control)
Battery Back Up
Supplied with the automation kit the back up battery system will allow for continued use of the gate system for up to three days of regular use and will automatically recharge upon power restoration. Whilst the system is powered it will continue to float charge to keep the batteries topped up ready for use.
Specifications
| Power Input | 240V AC (Pre wired with 1.2m Cable) |
| Transformer | 24V AC |
| Rectification | On Board Bridge Rectifier |
| Motor Output Voltage | 24v DC |
| Battery Backup | 24V |
| Working temperature | -10° - 50° |
| RF | APC Rolling code 433.92mhz |
| Lock Output (Primary) | 12-30V DC (Depending on Configuration) |
| Lock Output (Secondary) | 12V DC |
| Auxiliary Inputs | 0V Momentary Pulse |
| Accessories Voltage | 24V DC |
| Over current | 1A to 5A |
APC-PE2000 Photoelectric Safety Sensor Set
The Safety sensor set is used to prevent the closing cycle occurring during the case of the sensor path being interrupted by vehicles, trailers or any other obstacles.
If the gate begins to close and the sensor path is interrupted then the gate will stop and return to the open position.
Both sensors (transmitter and receiver) are wired back to the control box of the gate system using the supplied cable roll, alternatively a reflective sensor upgrade is available which will only require wiring from the sensor mounted at the control box.
- Up to 15 Metres Infared beam operating distance
- Only powers on when the command is given to close the gates
- Alignment led to assist in the installation process
- Weather sealed with the supplied cover seals
- Easy screw down wiring termination
Wired Double Push Button with Isolation Key
The wired double push button switch is a simple and easy to use method to operate the gate for full gate operation and also pedestrian function.
It is mounted in the general area of the gate and can be isolated by using the supplied keys without affecting the rest of the system, this is handy if you want to continue using the remotes or any other method of operation but wish to stop use of the push button itself.
The push button is wired to the control board using the supplied cable roll. If required the button can be upgraded to a wired keypad for higher access security using pin number for either the full gate operation or pedestrian function.
65mm Rubber Gate Stop
The supplied 65mm rubber gate stop with steel base is used to for the gate alignment and tension whilst they are in the closed position, it also allows the gates to be mounted up to 50mm off the ground.
Being that the minimum vehichle height from the ground is 100mm it will not interfere with the vehichle. In the case that the vehichle was lower than the typical minimum the stopper would not cause any damage as it is constructed from solid rubber but retains its general strength from the steel plate used at the bottom side contacting the driveway.
Eyevision Intelli Series Intercom Systems
The eyevision Intelli Series intercom is a feature rich state of the art intercom system boasting every feature requested from an intercom syste (and much more...).
Any visitor calls can be recieved by the APP on your smartphone or table along with the monitor at the same time with a large feature set from the APP and also the indoor monitor. No extra modules are required to connect to the internet as the WF 7 slimline indoor monitor has built in Wi-Fi and is able to connect directly to your homes 2.4GHZ Wi-Fi connection.
Two oudoor stations can be connected for front gate/front door/back door (with motion detection recording) along with up to SIX monitors within the home allowing for the visitors call to be answered from any station and transfered to a diffrent station if required. Within the home you can selectivly intercom between any of the installed indoor monitors. All monitors connected into the system can view any of the installed CCTV camers (up to TWO can be connected into the system). If the CCTV cameras are interconnected with a seperate alarm sensor the system can have alarm recording events occur which can be saved directly to a micro SD card.
The intelli series can have a common release connected directly to the monitor allowing for simultaneous front gate - front door release making it easier than ever to let a guest in without having to switch between menus or running to the door.
System Capacity Capabilities - Supports up to TWO Outdoor Stations each with its own electric striker/gate release feature
- Supports up to SIX indoor Monitors
- Common independent electric striker/automatic gate release feature
- Supports up to Two CCTV Cameras (CVI,TVI,AHD or CVBS up to 1.3MP)
- Supports Motion Detection for Outdoor Stations (uses its own built in sensor)
- Supports Motion Detection/Alarm Function for CCTV using external PIR or Reed Switches
- Supports live video stream to a DVR
Indoor Monitor Base Features - Built-in WiFi to connect to your home internet connection
- Tempered Glass with Touch Sensitive Buttons
- Simple easy to use user Interface
- Free to use Tuya Smart APP for all modern mobile phones and tablets
- 11 Languages to choose from
- Ultra Slim 18mm Depth
- 7" TFT LCD Monitor 1024x600 HD Resolution
- Built in mute switch
- Intercom calls direct to Smart phone and Monitor Simultaneously
- Intercom internal call and Call transfer
- Calender screen (time and date) option before entering the main menu
- Anytime REALTIME monitoring of any connected outdoor station/cctv camera
- Set scheduled ring volumes for Morning, Afternoon, Evening and Night
- Can Enable/Disable Rigtone at the outdoor station
Special Features (Micro SD Required) - Automatic recording for Motion Detection and Alarm events
- Digital Photo Frame on Standby
- MP3 Player
- Away Voice Message (Voicemail System)
- Custom ringtones
Tuya App for Direct to Phone
Indoor Monitor Technical Specifications
| Screen Size | 7" 1024x600 AHD LCD Display |
| Power | 12-15V DC |
| Wi-Fi | Yes, 2.4GHZ |
| SD Card | Micro SD (Not Supplied) Class 10 up to 32GB |
| CCTV Input | Maximum 2 |
| Alarm Sensor Input | Maximum 2 |
| Outdoor Unit Input | Maximum 2 |
| Indoor Monitors | Maximum 6 |
Outdoor Station Features
- Ultra narrow 45mm Width fits onto any post, pier or fence
- 1.3MP AHD Camers
- 120° Lense
- 45° Wedge Bracket for best mounting direction
- Built in Keypad with common PIN CODE system
- Built in IC Tag/Card Reader
- Up to 100 Users when using IC Tags (allows for individual User ID's and PIN Codes
- Lockout feature after too many incorrect PIN/IC tag uses
- Supports Exit Buttons
- Supports Fail Secure and Fail Safe Electric Strikers
- Supports Automatic Gate Release
45° Angle Wedge
The supplied 45° angle mounting wedge allows for the best alignment
