Smart Access Control Sliding Gate Automation Kit. 800KG AC Sliding Gate Opener with Remootio 3 Smart Gate Access Control Using Wi-Fi, Bluetooth. Control Gate with Smartphone APP and Geo Location.

Smart Access Control Sliding Gate Automation Kit. 800KG AC Sliding Gate Opener with Remootio 3 Smart Gate Access Control Using Wi-Fi, Bluetooth. Control Gate with Smartphone APP and Geo Location.

Limited Stock!

Price	$875
	Collect 2625 Everyday Rewards points Score 3x points on every order Ends 11:59pm 03/01/2025. Exclusions & T&Cs apply Log in to MyDeal to link your card
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

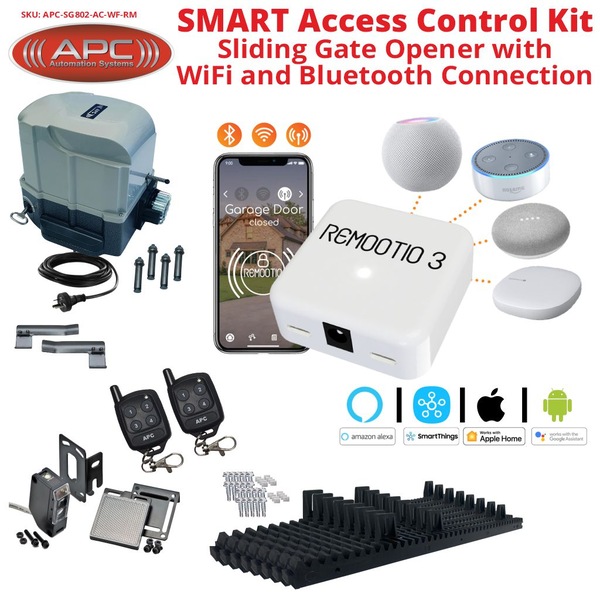

Kit Includes

APC Typhoon SG802 AC 800KG Sliding Gate Motor with Power Cord (Built in Control Board) (QTY: 1)
APC Four Button Keyring Remote (QTY: 2)
APC Retro Reflective Safety Sensor - for gate opening system safety Retro Reflective Gate Sensor (QTY: 1)
Remootio 3 Smart Gate Access Control Connecting WiFi, Bluetooth and Control Door/Garage/Gate with Smartphone APP| Remootio - Make your gates and garage doors smart! (QTY: 1)
Gear Rack Nylon Coated With Steel Core, Strong and Quiet - (1m Pack - 2 x 50 CM) Made in Italy by Stagnoli (QTY: 4)
Two FREE Sunvisor Remote Controls (Promotion) with every Electric Gate Automation Kit order. (QTY: 2)

Product Information

Typhoon 800 AC Sliding Gate Automation System with Soft Start & Soft Stop Feature

Strong & Durable

With its Soft Start/Soft Stop feature the APC Typhoon 800 brings the gate up to operating speed and down to a stop gently significantly increasing the motors operating life whilst decreasing the jolting movement incurred when the feature is not available.This feature can also simply be turned off if not required.

The 450W Internal motor allows for an 800kg capacity making it the ideal candidate for the majority of gate installations.

Ready to go the on board receiver will accept the entire range of current APC High Security wireless control systems and accessories such as wireless keypads, push buttons and an extensive range of remotes. Perfect for a simpler of no wiring needed installation.

All In One Motor Design

Ultra compact, sleek design and with some clever re-arrangement the APC Typhoon 800 is one of the smallest physical footprint systems on the market with zero compromise in the motor or gearbox size. The bottom cast alloy section is powder coated in a ultra durable hammer tone grey finish whilst the top cover sports a lighter gloss grey making it perfectly neutral and suited for any garden or driveway

With separate open and close inputs as well as an shared open/close input the APC Typhoon 800 will support just about any wired accessory and can be connected for a specific direction or to operate both. Perfect for Keypads, Push buttons, Induction Loops or Smart Devices such as Wi-Fi switches or GSM controllers.

Pre wired with the AC power cable and fitted with an on board low voltage transformer means the accessories connections are low voltage (18V DC) and safe to connect.

Manual Override System

Rest easy knowing that even if the power is out the gate can still be operated by using the secure key override, once overridden the gate can be easily opened and closed by hand, once re-engaged the gate is locked in and 100% secure.

Metal Pinion & Cast Casing

Only the best parts are used to ensure an incredibly strong build quality from the robust cast alloy casing all the way to the one piece solid steel pinion gear no corners have been cut.

Motor and Base Plate Dimensions Including Pinion Height

Suitability

Sliding gate not exceeding 800kg maximum (Telescopic Gates Supported up to 200KG PER gate)
Sliding gate not exceeding 6m width maximum (Telescopic Gates Supported up to 2m PER gate)
A power point is required at the gate (or can be hardwired by an electrician)
Level ground installations or minor gradients

Specifications

Rated Power	450W
Power supply	220V-240V
Maximum Weight of Gate	800kg (Telescopic Gates 200KG PER Gate)
Maximum Width of Gate	6m (Telescopic Gates 2m PER Gate)
The working temperature of the motor	-5° ~ +65° C
Open (Close) speed	12m/min
Maximum Pull	22Nm
Voltage output	18V DC, Only devices with a parameter of 12-24V DC operating range can be connected to the system
Light output	240V Light, 30 Watts or Less
Accessories input	Open Only Close Only Open/Halt/Close

FAQ

Can I operate this sliding gate motor manually?	YES	The motor is fitted with a manual override and supplied with a key to manually disengage the motor
Can I use this system to operate a large gate?	YES	This system can handle a sliding gate up to 6m wide and 800kg in weight.
Are the motor & control panel all in one?	YES	Both the motor and the control panel are housed under one casing making the motor easy to install and very neat & compact
Can I use push buttons to operate this system?	YES	Both wireless & wired push-button switches can be used to open/close the gate motor
Can I use keypads to operate this system?	YES	Both wireless & wired keypads can be used to open/close the gate motor
Can I connect a safety sensor to this system?	YES	Photoelectric and reflective safety sensors can be connected to this system to stop the gate from closing if there is a vehicle or person in the way of the gate
Can I connect an intercom system to this gate system?	YES	A range of different intercoms can be connected to this system allowing the intercom to unlock the gate motor from a monitor inside the house or via an app on your smartphone
Can I operate this gate system from a remote location?	YES	A GSM Receiver or Wi-Fi Receiver can be connected to the system allowing programmed users to open/close the gate system from a remote location.
Does this gate system automatically close?	YES	When the automatic close timer is enabled, and photoelectric safety sensors are installed the gate will automatically close
Can I connect a light to the system?	YES	The system has a 240V light output meaning a 240V light 30 Watts or less can be connected and will operate when the gate is opening/closing.

APC-RR-11 Retro Reflective Sensor

The retro-reflective Safety sensor set is used to prevent the closing cycle occurring during the case of the sensor path being interrupted by vehicles, trailers or any other obstacles.

If the gate begins to close and the sensor path is interrupted then the gate will stop and return to the open position.

The sensor ( which is the transmitter and receiver) is wired back to the control box of the gate system using the pre-connected cable. There is no requirement for wiring across the driveway using this type of sensor.

Up to 11 Metres Infrared beam operating distance
Only powers on when the command is given to close the gates
Alignment & Misalignment led to assist in the installation process
Resin filled for the ultimate weatherproofing

This Remootio 3 package includes:

Remootio 3 device (Bluetooth and Wi-Fi enabled device for controlling and monitoring gates and garage doors)
Sensor (for detecting if your gate is open or closed)
Power adapter (5V) (for powering Remootio 3 from a wall socket).
Power cable for the 5V power adapter
Double-sided tapes
Cable for connecting Remootio to your gate or garage door
Installation manual

Key features:

Remootio 3 has two output relays which makes it compatible with gate/garage door openers that have separate trigger inputs for opening and closing
Remootio 3 works with a 5V power supply (standard USB charger)
Remootio 3 also works from 5-32V DC and 12-24V AC voltages, so it can be powered from the control board of most gate openers, making installation very easy
Remootio 3 has two accessory input terminals (e.g. sensor and doorbell button)

Please use the compatibility checker to make sure that Remootio 3 is compatible with your gate or garage door opener.

Connection methods:

	Bluetooth (also works when there is no Wi-Fi / Internet access)
	Wi-Fi (local network)
	Internet (via Wi-Fi)

Smart Home Integrations:

	Apple Home
	Amazon Alexa
	Google Assistant
	Samsung SmartThings

Control via:

	iOS and Android Smartphones
	Apple Watch
	Open API

Features :

	256-bit end-to-end encryption
	Alerts & notifications
	Automatic opening
	Open / Close status sensor
	20 virtual keys & easy key sharing
	Automations
	Customizable app
	Logging (history)
	&

Specifications:

Kit Includes

APC Typhoon SG802 AC 800KG Sliding Gate Motor with Power Cord (Built in Control Board) (QTY: 1)
APC Four Button Keyring Remote (QTY: 2)
APC Retro Reflective Safety Sensor - for gate opening system safety Retro Reflective Gate Sensor (QTY: 1)
Remootio 3 Smart Gate Access Control Connecting WiFi, Bluetooth and Control Door/Garage/Gate with Smartphone APP | Remootio - Make your gates and garage doors smart! (QTY: 1)
Gear Rack Nylon Coated With Steel Core, Strong and Quiet - (1m Pack - 2 x 50 CM) Made in Italy by Stagnoli (QTY: 4)
Two FREE Sunvisor Remote Controls (Promotion) with every Electric Gate Automation Kit order. (QTY: 2)

SKU: APC-SG802-AC-WF-RO
