Simplecom SA207 mSATA + M.2 (NGFF) to SATA 2 In 1 Combo Adapter

Simplecom SA207 mSATA + M.2 (NGFF) to SATA 2 In 1 Combo Adapter

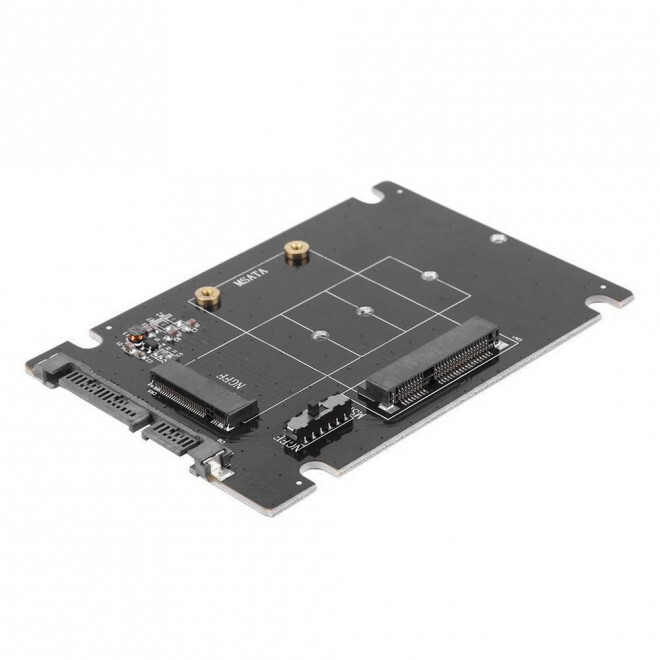

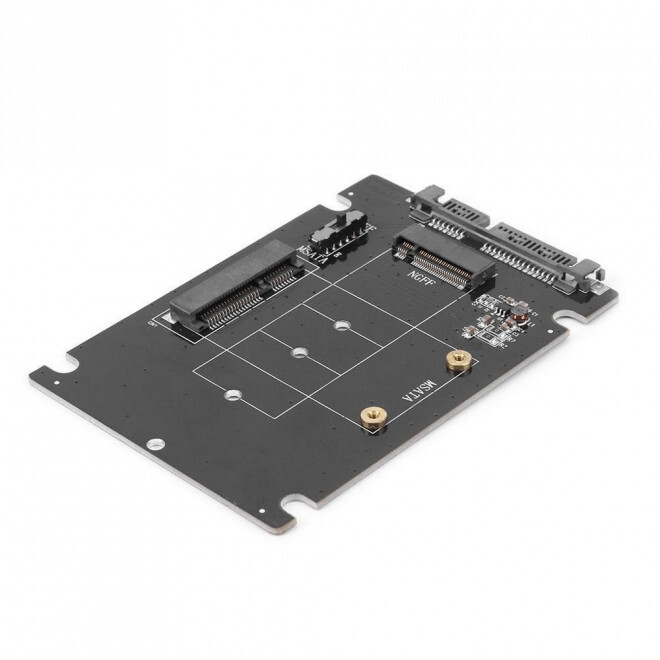

SA207 is a 2 in 1 Combo Adapter for both M.2 and mSATA SSD to SATA interface. With this adapter, you can easily access M.2 or mSATA SSDs via standard SATA port on PC, also you can install this adapter into an external SATA enclosure. It’s an ideal solution for data backup and migration.

Features

• mSATA + M.2 SSD 2 in 1 Combo Adapter
• Convert a mSATA or M.2 SSD to SATA 3 interface
• On board mSATA and M.2 Switch
• Plug and play, no drivers required

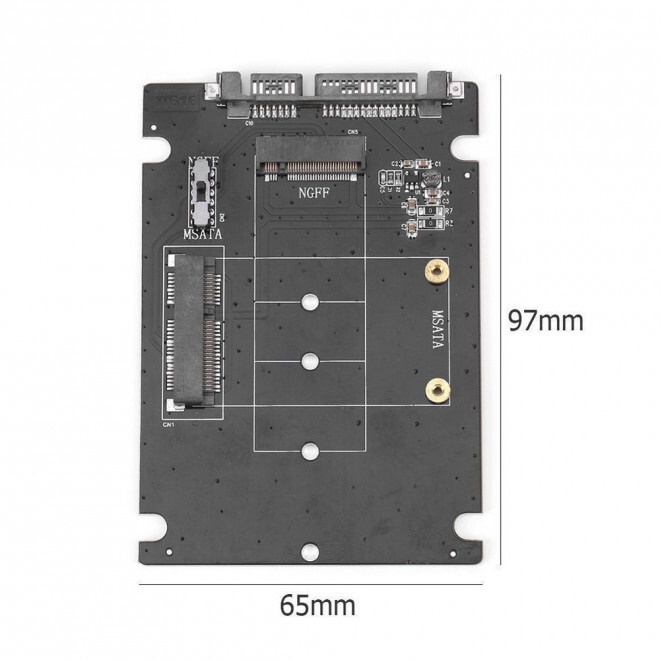

• Circuit board Size: 97x65x5mm
• Support following form factor M.2(NGFF) SSD:
  Type 2230-D2-B-M: 30mm(L) x 22mm(W)
  Type 2242-D2-B-M: 42mm(L) x 22mm(W)
  Type 2260-D2-B-M: 60mm(L) x 22mm(W)
  Type 2280-D2-B-M: 80mm(L) x 22mm(W)
• Support following form factor mSATA SSD:
  Full size mSATA : 50.95mm(L) x 30mm(W)

Package Contents

• 1x mSATA + M.2 SSD to SATA 2 in 1 Combo Adapter
• 1x Screw driver
• Screw with Washer

Important Note:

*NOT Designed for NVMe PCIe M.2 SSD, will not fit M Key Only SSD Module. Compatible with SATA protocol based mSATA and M.2 (B Key Only or B+M key) SSD only.
