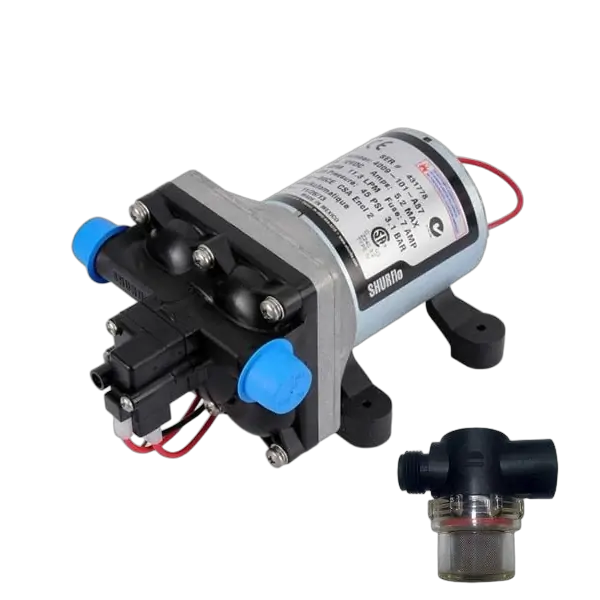

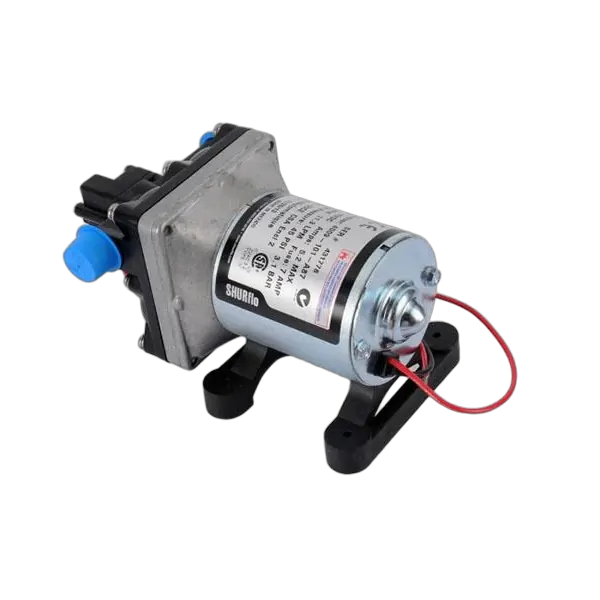

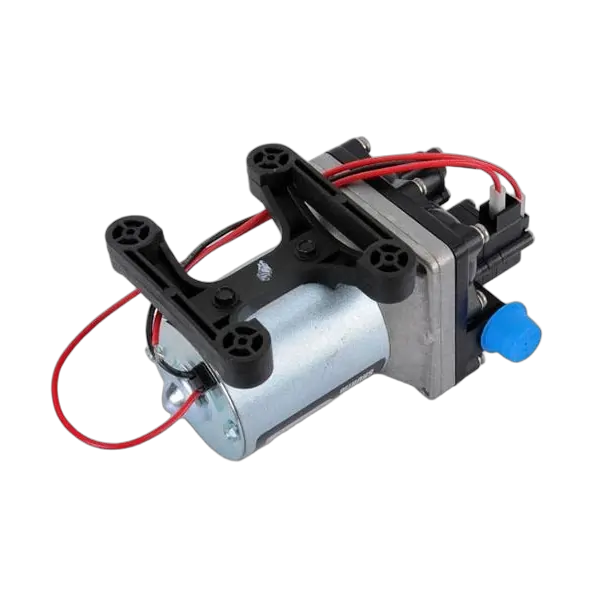

If you plan on having running water in your camper or motorhome, then you’ll need a reliable 12-volt water pump. The Shurflo 4009 series water pump design is created with a one-piece diaphragm and internal by-pass ensuring a long life and max performance. Constructed for high flow demand, this updated Shurflo 4009 water pump has low noise emissions and no rapid cycling. Meaning, when the pressure switch turns on and off very quickly, it can lead to premature water pump failure. The Shurflo 4009 is designed to last years without this ever being the case and can also run dry without any damage to the motor.

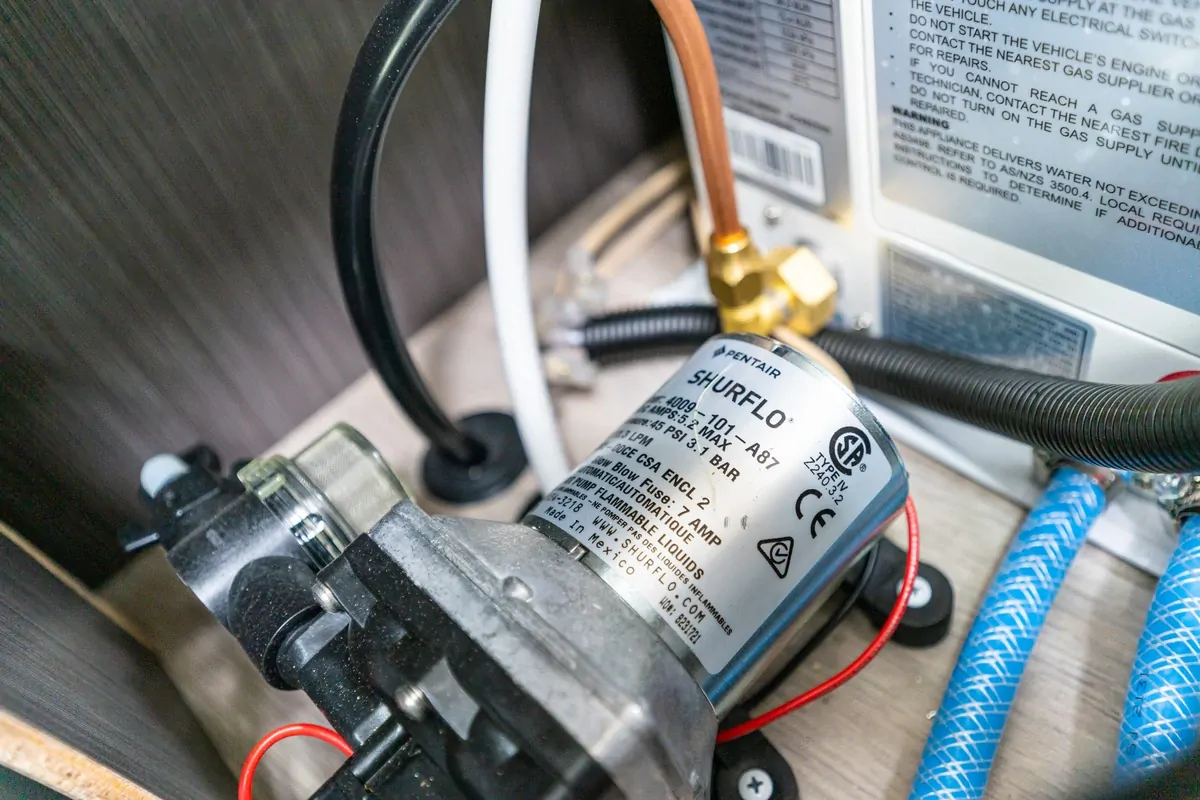

Shurflo have rapidly become the most popular supplier of affordable 12-volt water pumps on the market, ideal for boats, caravans, motorhomes and campers. This powerful device provides a running water source for sinks, washing machines and showers. It’s easy, low-profile design can be easily mounted in any position to the inside of cabinetry and storage areas. It’s designed with a ½ inch BSP male thread, compatible with any twist on ½ inch female water director (usually for 13mm tubing). It’s important to note that the pulling power of the Shurflo 4009 water pump is designed to be placed near the water source so bare this in mind when mapping out a plumping system in your camper. Absolutely anyone can follow the simple installation steps when setting up the Shurflo 4009 water pump, for a quick solution to all the dirty dishes piling up in the sink.

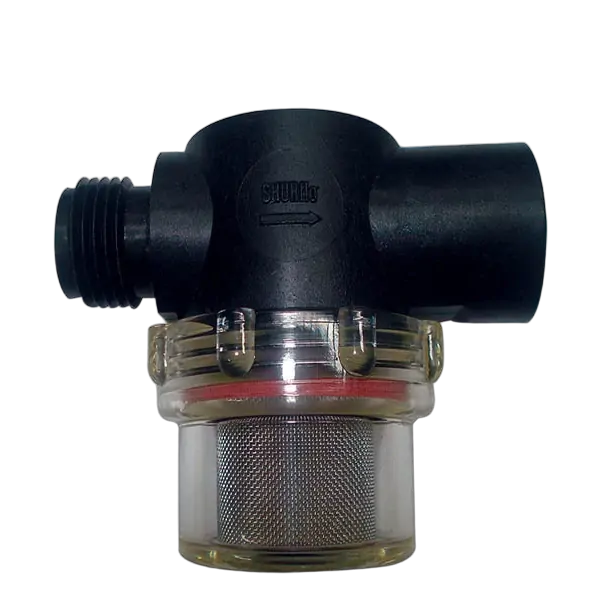

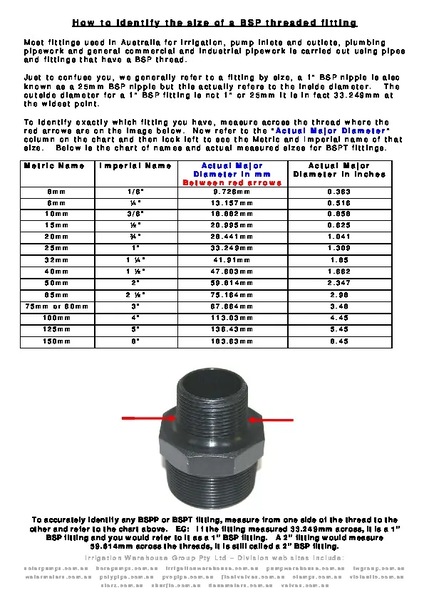

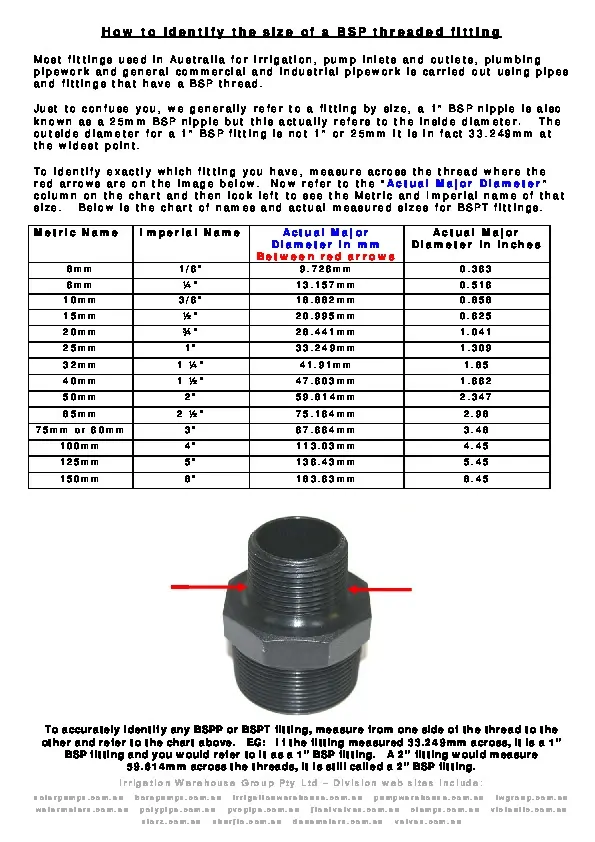

IMPORTANT: The fitting on the Shurflo 4009 it is TAPERED and needs a TAPERED fitting like the shurflo swivel hubs we sell here. You must install a Shurflo filter pack BEFORE the pump (water tank side) and DO NOT USE THRED TAPE or it will void warranty. Please see PDF images above for more information on tapered fittings and BSP/NPT threads.
Four Independent Pump Chambers - The pump is super quiet and smooth operation
Adjustable Pressure Shut Off - Fine tuning for customer specific application
Self priming up to 1.8 meters (6 feet) vertical
O-ring Check Valve Design - Long life and consistent performance
Adjustable Bypass - Eliminates need for accumulator tank
Run Dry Capability - Long life consistent performance
CE & C-Tick compliant
Must be used with a filter before the pump
Must not use plumbing tape
Not warrented for commercial applications
Not warrented for outside use
Not warrented against dust ingress
Pressure switch adustment tampering voids warranty
For intermittant external applications see Aqua king pump 005656-A

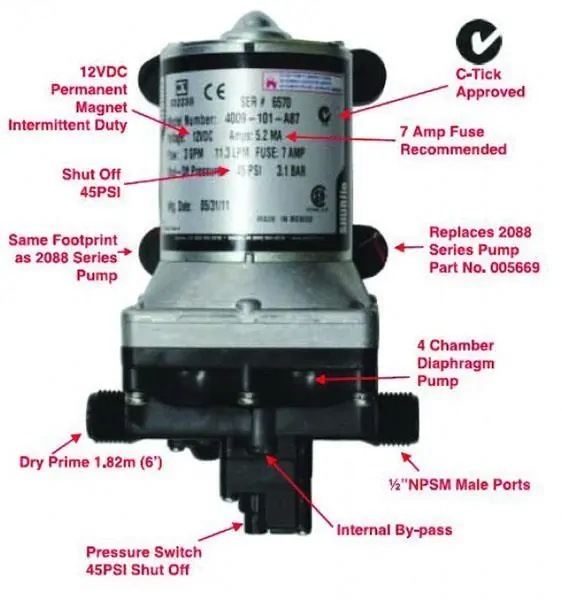

Pump:
Type: 4 Chamber Diaphragm Pump
Ports: 1/2” - 14 NPSM-Male
Inlet PSI: 30Psi (2.1Bar) Max
Shut Off Pressure: 45Psi
12MM BSP fittings can be used
Electrical:
Motor: 12V DC Permanent Magnet, Intermittent Duty
Protection: Thermal Overload, Automatic Restart
Fuse: 7A Recommended
Materials:
Housing: Polypropylene
Hardware: Stainless and Zinc Plated Steel
Net Weight: 2.3kg
Dimensions (mm): 205L x 125W x 111H
