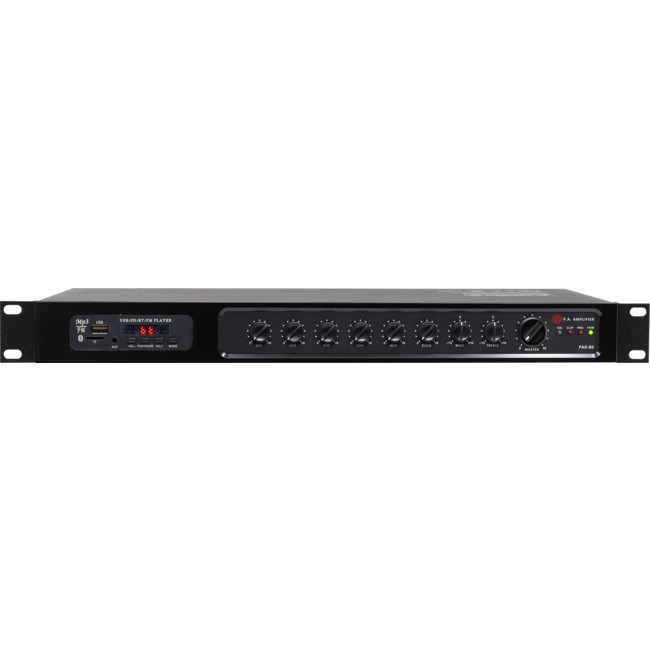

SHOW PAX60 Rms 60W Class D PA Amplifier 4Ohm or 100V Output Mp3 Bt FM

SHOW PAX60 Rms 60W Class D PA Amplifier 4Ohm or 100V Output Mp3 Bt FM

Price	$456
	Collect 456 Everyday Rewards points Log in to MyDeal to link your card
Shipping	Unable to calculate delivery for , please Contact Us Delivery unavailable to Change
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

The PAX series offers three models of mixers/amplifiers designed for commercial applications. All models include a multi-source player, five input mixers, and a power amplifier module of 60W, 120W, or 240W driving low and high-impedance lines._

Thanks to Class-D technology, the sources, mixing, and amplification are contained in one 1U rack unit. The devices can be used in small control rooms or low-ventilation environments, making them an ideal solution for bars, restaurants, retail stores, office buildings, and other applications where paging and background music are required.

Four mono inputs are available on the combined balanced XLR / TRS 6.35 mm connectors. A switch on each input selects a line or microphone signal level with a 24 V phantom power option._

For the Aux stereo input, both channels are added to a monaural signal. The microphone connected to input 1 can automatically mute other sound sources; the function is activated by a microphone signal. Signal priority can also be activated by a potential-free contact or an external test/alarm signal._

The PAX series is equipped with an MP3 USB-SD player for BGM or recorded messages. The BGM module also includes an FM and Bluetooth FM tuner. We can connect a load with an impedance of 4 to the output power part, but it is also possible to connect a high-impedance load requiring a voltage of 70 V and 100 V. It can also work with a 24 V DC supply voltage, eg from a backup source.

Features:

Pristine audio quality and ultra-high efficiency
Compact 1U design
60 watt (RMS) commercial mixer amplifier
Microphone paging with priority override
On-board Blue Tooth, FM Tuner, MP3 player plays music files from USB memory sticks or SD/MMC cards, front panel stereo 3.5mm AUX input
Adjustable digital ECHO can be applied to the mic inputs for voice effects

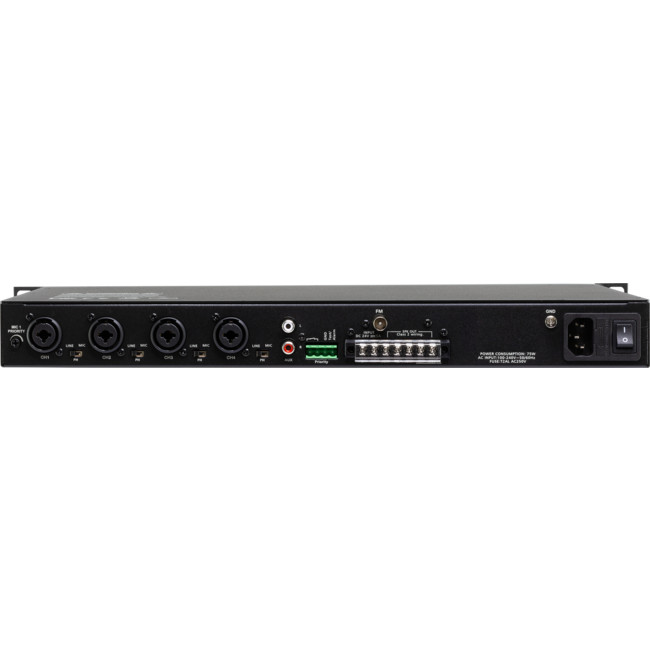

Four Mic/Line inputs on XLR/1/4" combo jacks
Mic/Line input 1 and TEL with priority automatic override
Individually switchable phantom power on all mic inputs
RCA AUX back panel input
Master MUTE contacts
24V DC emergency operation
4ohm, 70V and 100V speaker level outputs
Automatic reset protection circuity

Specifications:

AC Input Voltage 100-240V 50HZ/60HZ_
DC Input Voltage 24VDC_
Amplifier Type Class D
RMS Power @ 4ohms – 60W
RMS Power @ 70V – 60W
RMS Power @ 100V 60W
Frequency Response (+/-3dB) 80Hz – 16kHz
T.H.D.: Phantom: ≥65dB
Input Sensitivity Mic: -52dBV balanced
Input Sensitivity Line: -10dBV unbalanced
Input Sensitivity Aux: -10dBV unbalanced
Input Sensitivity Phantom voltage: -52dBV/18V balanced
Input Sensitivity Test/Alarm: -10dBV balanced
S/N Ratio: MIC ≥ 65dB , Line ≥ 75dB, AUX ≥ 75dB
Equalizer controls: BASS: ±10dB (at 100HZ), TREBLE: ±10dB (at 100HZ)_
Controls: 4 INPUT volume, 1 AUX volume, 1 Echo level, 2 Treble / Bass, 1 MASTER volume, Priority level
Output Connectors – Terminal Block screw type
BGM Module: MP3 USB-SD player / FM tuner / Bluetooth
Output (ohm): 4 ohm
Output (V): 70V, 100V
Dimensions (W x D x H): 483 x281 x44 mm (19.02"x 11.06" x1.73")
Net Weight: 4.1kg (9.04lbs)

Weight: 12
