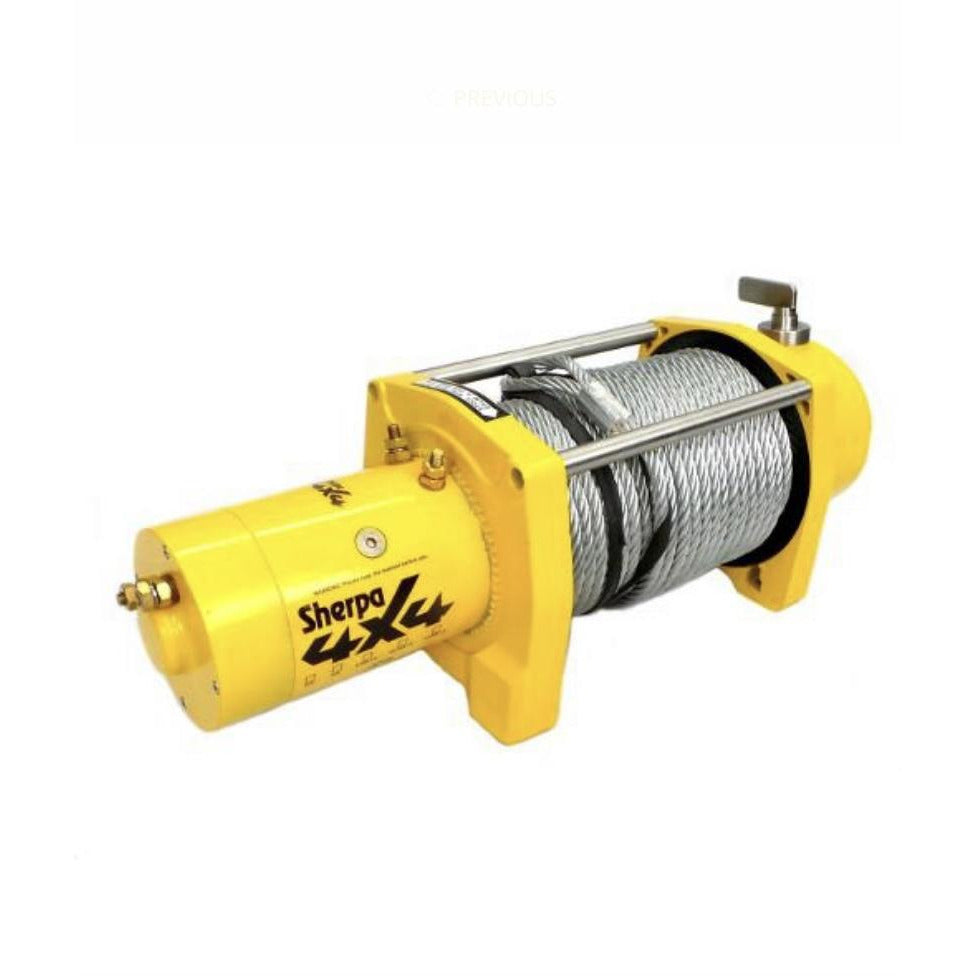

20,000LB ELECTRIC TOW TRUCK WINCH

Designed specifically for people wanting a hoist style of winch suited to loading equipment on and off trailers and trucks. These winches are built with advanced features to ensure the best performance for this type of application.

Specifications	Value
Rated Line Pull	20,000lb (9,090kg)
Motor	6.6hp in 12V or 24V options
Gearbox	3 Stage Planetary
Rope/Cable	28m of 10mm synthetic rope rated to 23,760lb MBS (Minimum Breaking Strength) 28m of 10mm steel cable rated to 19,400 Lb MBS Note: Rope or cable is supplied loose shipped for user to install after winch has been installed. Users may wish to further shorten the rope/cable to suit the length of the trailer/truck application and maximise the winch performance.
Mounting Bolt Diameter	11.2mm
Drum Size (Dia x Length)	64mm x 224mm
Mounting Bolt Pattern	254mm x 114.3mm
Weight	45kg
Dimensions	570 X 145 X 225 mm
Clutch	180 degree turn, free spooling, slide ring gear
Brake	Automatic in motor

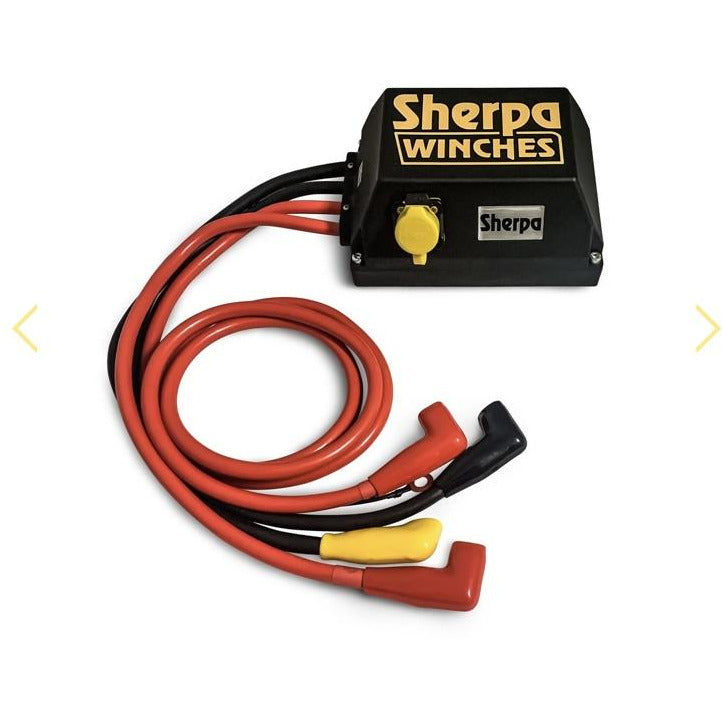

Solenoid	Albright International Heavy Duty
Duty Cycle	Intermittent
Fairlead / Hawse	Cable (4 way roller fair lead) \| Rope (polished aluminium hawse)
Battery Leads	1.8m long

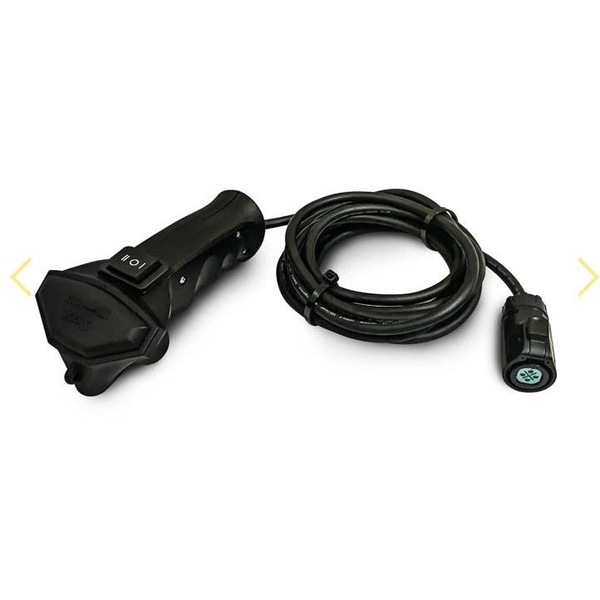

Hand Remote Lead	3.5m long
Water Ingress Rating	IP66
Warranty	5 Years

12V WINCH PERFORMANCE DATA

Line Pull (Lb)	Line Speed (m/min)	Motor Current (A)
0	5.7	65
1500	4.8	80
3,000	3.8	120
6,000	3.0	155
9,000	2.5	190
12,000	2.1	225
15,000	1.8	265
18,000	1.6	300
20,000	1.5	400

24V WINCH PERFORMANCE DATA

Line Pull (Lb)	Line Speed (m/min)	Motor Current (A)
0	5.9	35
1500	5.1	40
3,000	4.0	60
6,000	3.2	80
9,000	2.8	95
12,000	2.3	115
15,000	2.1	140
18,000	1.8	155
20,000	1.7	200
