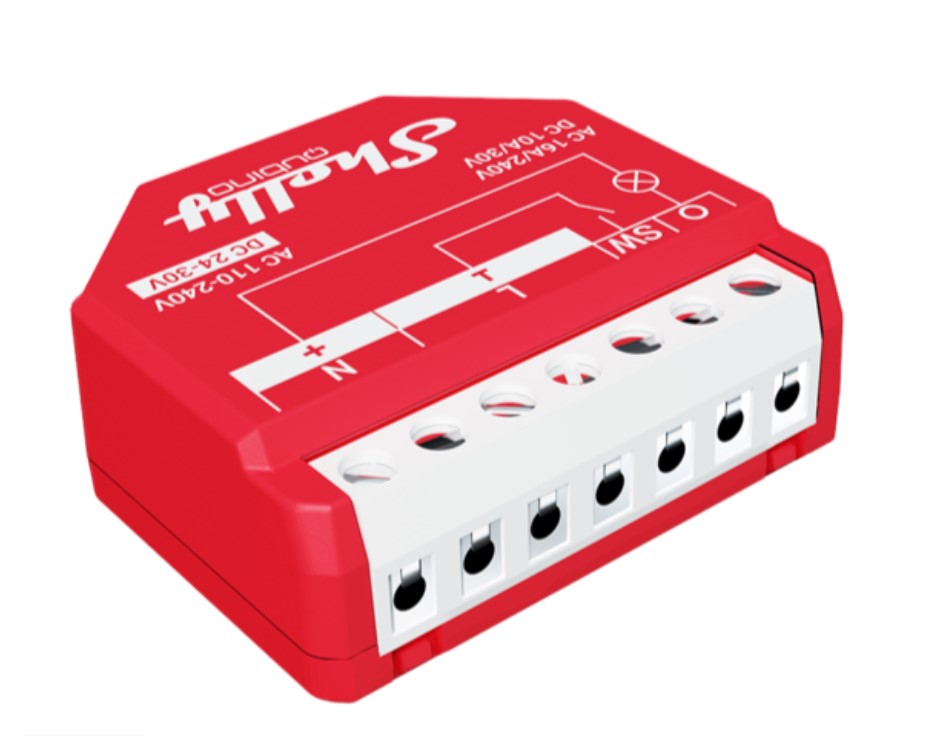

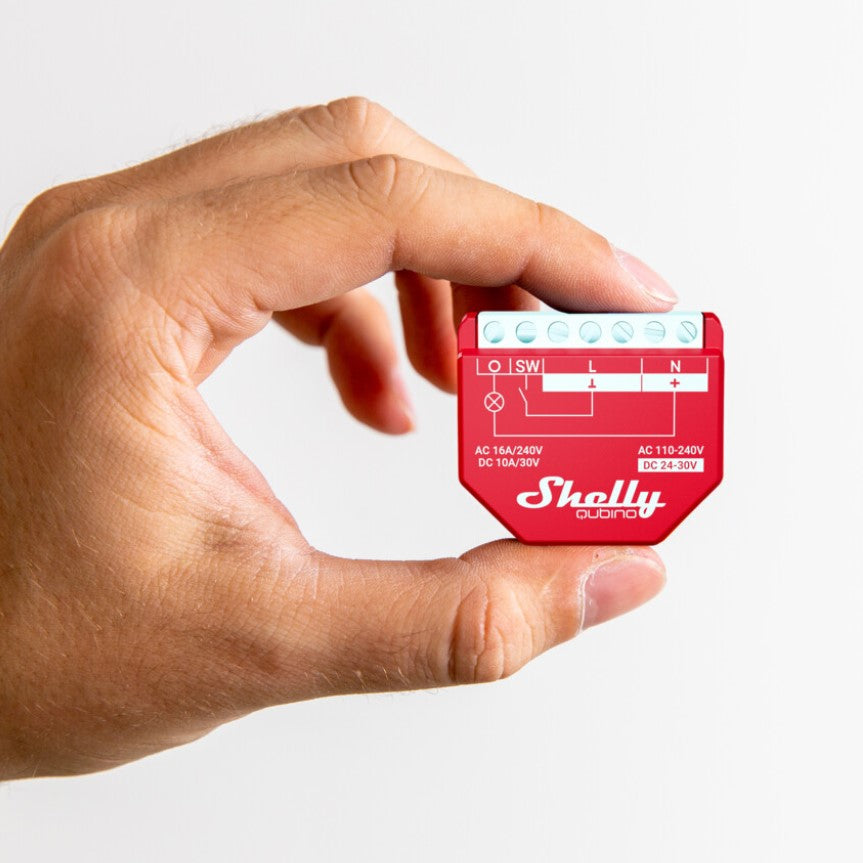

Shelly Wave 1PM (Z-wave)
Introducing the Shelly Qubino Wave 1PM, a versatile Z-Wave(TM) smart switch designed to empower you with precise control and power monitoring capabilities. With a single channel supporting up to 16 A, this device allows you to effortlessly manage and monitor power consumption for a variety of home appliances and office equipment, including lights, security systems, heaters, water heaters, and more, all from the convenience of your smartphone or tablet.
Key Features:

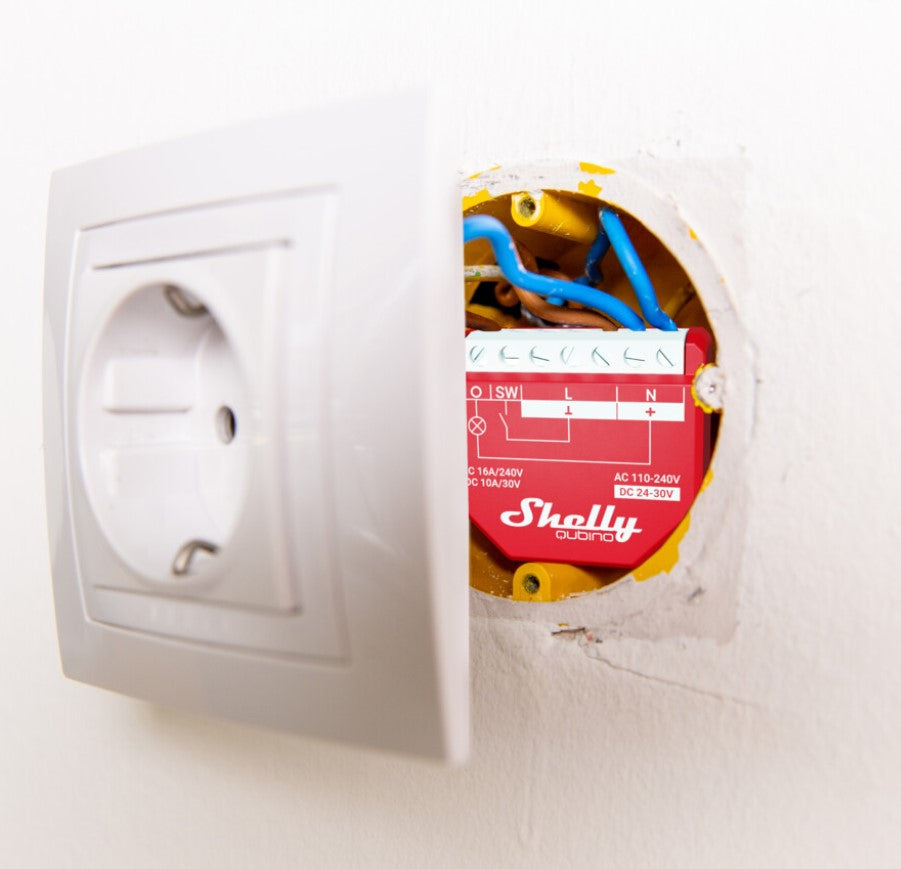

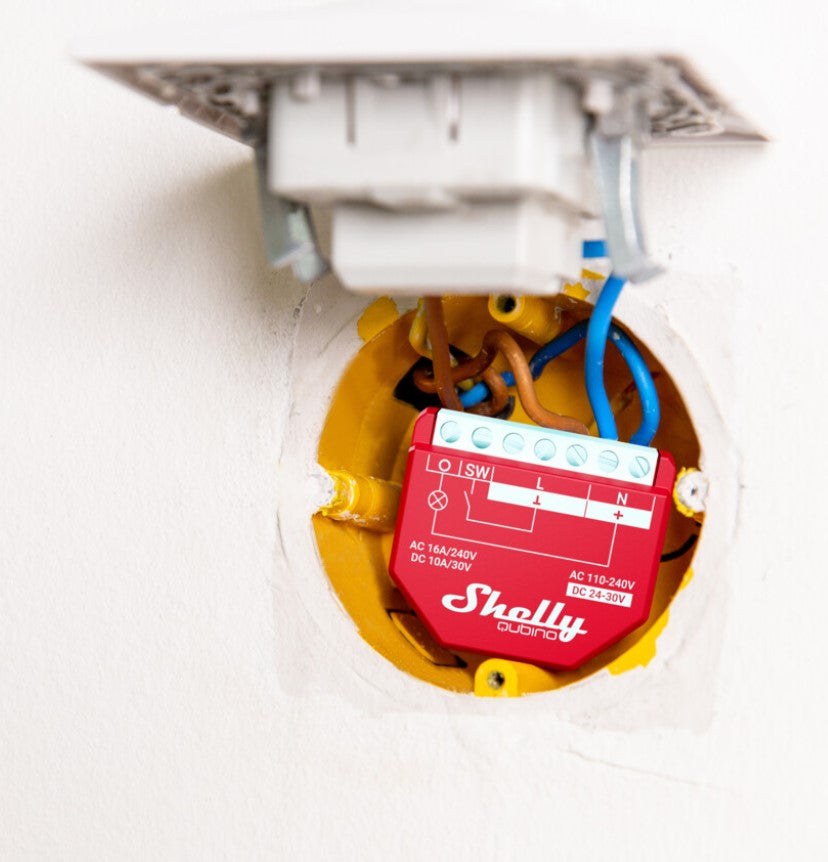

Installation and Compatibility: The Wave 1PM is designed for seamless retrofitting behind any standard switch or socket, instantly transforming it into a smart device. Once installed, simply integrate it into your Z-Wave network via a compatible gateway to enjoy remote control of connected appliances from anywhere.
Functionalities:
Use Cases:
Experience the convenience, efficiency, and tailored control that the Shelly Qubino Wave 1PM brings to your everyday life, and elevate your smart home experience effortlessly.
Power supply | 110-240 V AC / 24-30 V DC |
---|---|
Power consumption | < 0.3 W |
Power measurement (W) | Yes |
Max switching voltage AC | 240 V |
Max switching current AC | 16 A |
Max switching voltage DC | 30 V |
Max switching current DC | 10 A |
Overheating protection | Yes |
Overload protection | Yes |
Distance | Up to 40 m indoors (131 ft.) (depends on local condition) |
Z-Wave(TM) repeater: | Yes |
CPU | Z-Wave(TM) S800 |
Z-Wave(TM) frequency bands: | 919,8 MHz |
Maximum radio frequency power transmitted in frequency band(s) | < 25 mW |
Size (H x W x D) | 37x42x16 0.5 mm / 1.46x1.65x0.63 0.02 in |
Weight | 27 g / 0.95 oz. |
Mounting | Wall console |
Screw terminals max. torque | 0.4 Nm / 3.5 lbin |
Conductor cross section | 0.5 to 1.5 mm2 / 20 to 16 AWG |
Conductor stripped length | 5 to 6 mm / 0.20 to 0.24 in |
Shell material | Plastic |
Color | Red |
Ambient temperature | -20oC to 40oC / -5oF to 105oF |
Humidity | 30% to 70% RH |
Max. altitude | 2000 m / 6562 ft. |
