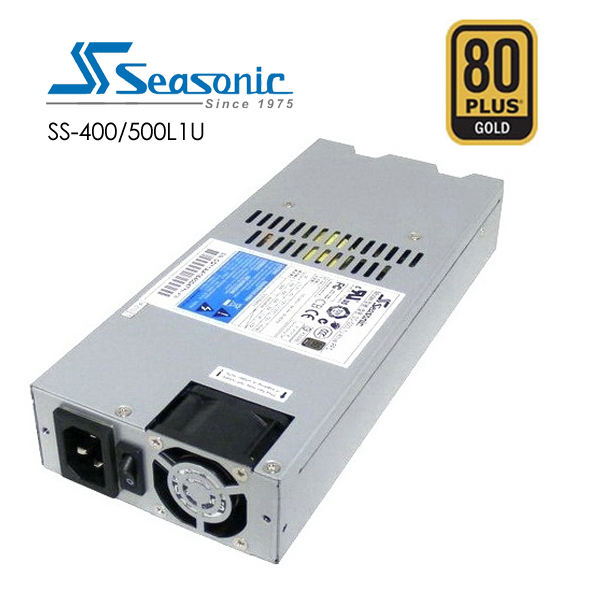

SeaSonic 500W Active PFC F3 1U PSU (SS-500L1U)

SeaSonic 500W Active PFC F3 1U PSU (SS-500L1U)

Price	$355.25
	Collect 1065 Everyday Rewards points Score 3x points on every order Ends 11:59pm 16/02/2025. Exclusions & T&Cs apply Log in to MyDeal to link your card
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

Specifications:

Switch Mode Power Supply - Intel EPS 12V- SS-400/500L1U Active PFC

Features:

Specification compliance: Intel EPS 12V

DC to DC converter design

High efficiency and reliability

Low THD

Low ripple noise

Super low noise fan control

Short circuit protection on all outputs

Over voltage protection

Over power protection

100% hi-pot test

100% burn in, high temperature cycled on/off

DC Outputs:

Model: SS-500L1U Active PFC

DC Outputs:

+3.3V
+5V
+12V(Combined)
-12V
+5Vsb
20A
20A
40A
0.3A
2.5A
100W*
480W
3.6W
12.5W
(Remarks: * Combined +3.3VDC +5V DC maximum power)

Total Power: 500W

Input Type: Full range

Electrical Specifications:

Input frequency: 47/63 Hz

Inrush current, cold start: 100A max.

Efficiency, at normal input voltage: > 87%

Line regulation: +/-1% typical

Load regulation: +/-5% typical

Cross regulation: +/-5% typical

Ripple / noise: 1%

MTBF, full load: >100K hours (Excluding the DC fan)

Power Factor Correction: Active PFC 99% typical

Certifications:

Satety: CUL, UV, CB

EMC: CE, Fcc, C-Tick

Specifications:

Dimension: L235 x W100 x H40mm

Connectors: Customized modular cables

Package contents:

1x SeaSonic 500W Active PFC F3 1U PSU (SS-500L1U)

SKU: V28-PSUSEA500L1U80G
