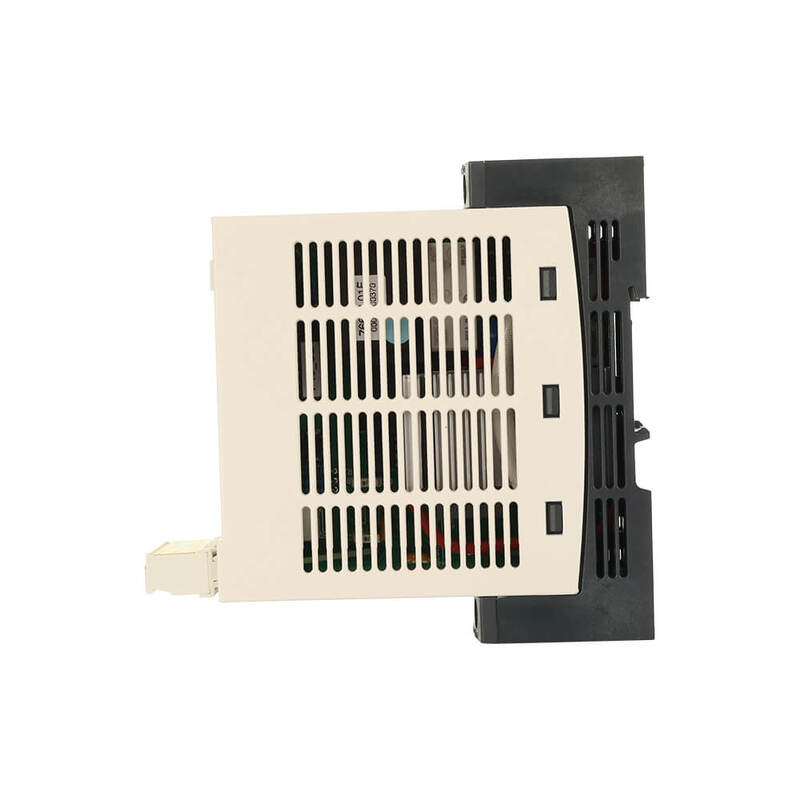

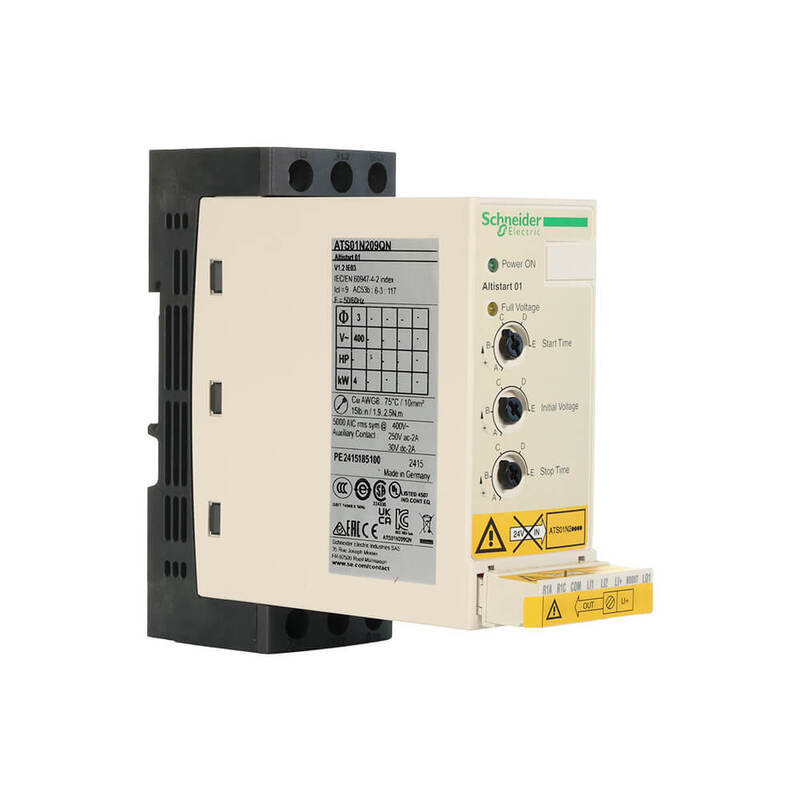

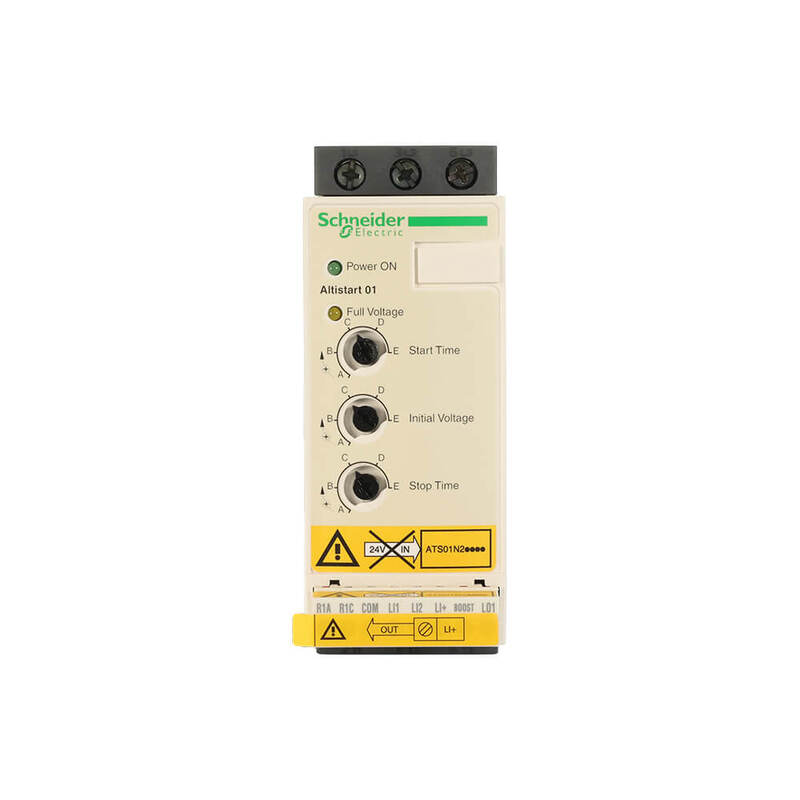

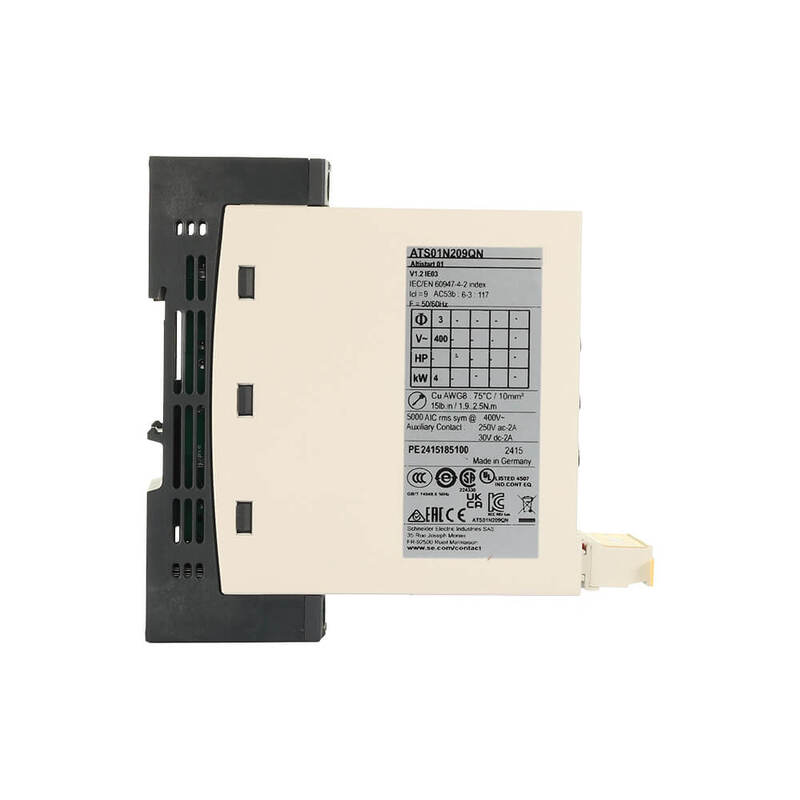

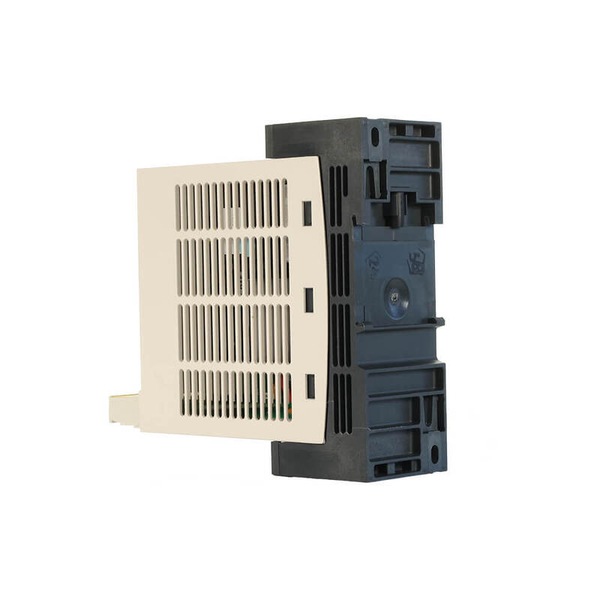

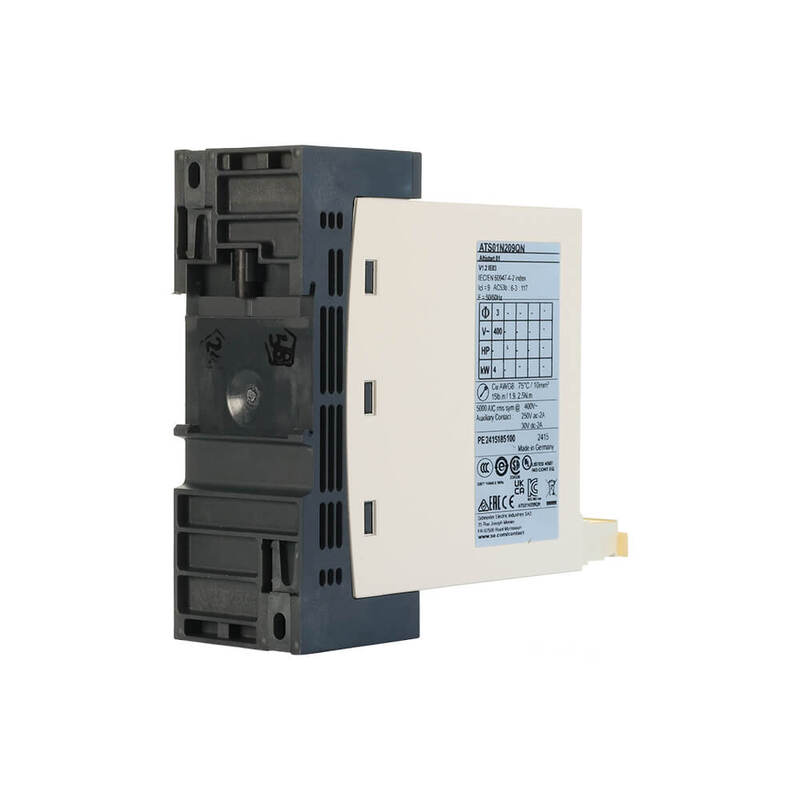

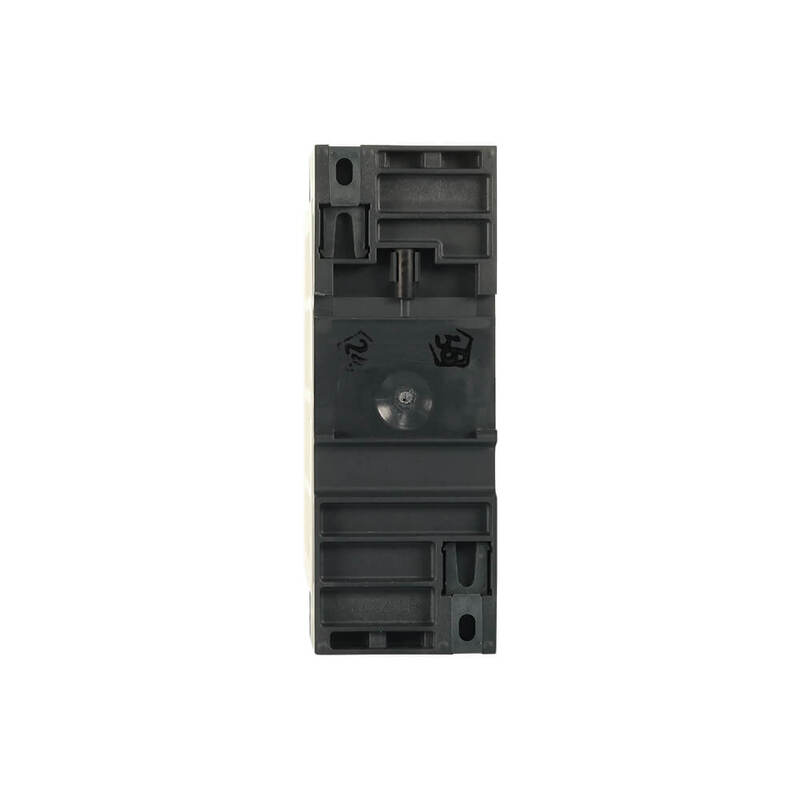

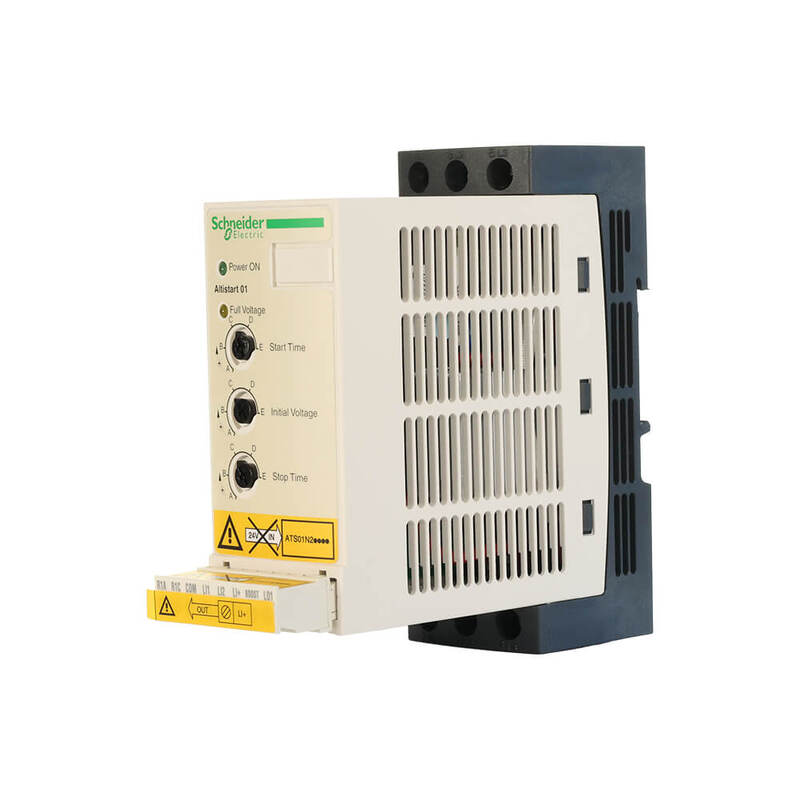

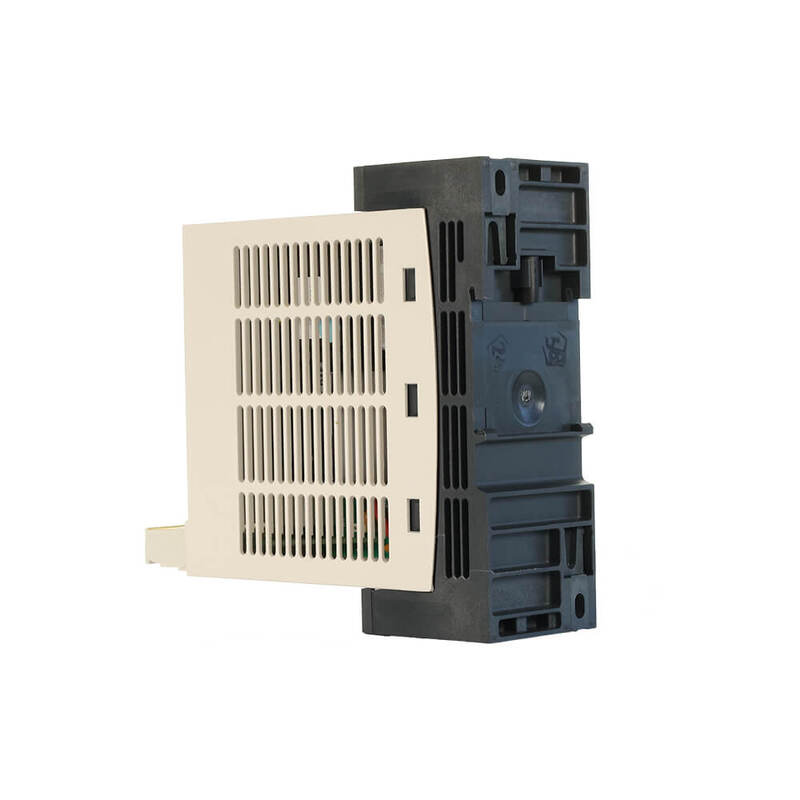

Schneider Electric ATS01N209QN | Altistart Soft Starter 9A 380-415V 4KW

Description:

The Schneider Electric ATS01N209QN Altistart Soft Starter is a compact and reliable solution for electricians. This soft starter is designed for DIN rail mounting and can feed 3-phase asynchronous motors with a rating of up to 9A. It is an ideal choice for a wide range of applications, including simple machines such as conveyors, pumps, fans, compressors, automatic doors, gates, small cranes, and belt-driven machinery.

The ATS01N209QN is suitable for motors with a rated power of up to 4kW or 2hp for 3-phase (200V to 240V AC). This soft starter provides a smooth start, reducing mechanical stresses and extending the service life of the machinery. Additionally, its progressive start feature limits the starting and stopping noise of motors, contributing to a more comfortable work environment.

Measuring only 45mm in width, the ATS01N209QN is one of the smallest soft starters on the market, allowing for easy installation in almost any space. Its integrated bypass reduces noise and heat dissipation, further enhancing operational efficiency.

The device is simple to set up, requiring only two settings which makes the setup process easier and quicker. This ease of use makes it an accessible and practical solution for various settings.

Features:

Versatile Motor Control: Suitable for motors up to 9A, 4KW power.
Compact Design: One of the smallest in the market, easy to install.
Noise Reduction: Integrated bypass for quieter operation.
Simple Setup: User-friendly with only two required settings.
Enhanced Equipment Lifespan: Smooth starts to minimize wear and tear.

FAQ:

Q: What type of motors is this soft starter suitable for?
A: It's designed for 3-phase asynchronous motors up to 9A.

Q: How easy is it to install?
A: Its compact size and straightforward setup make it easy to install.

Q: Does it reduce operational noise?
A: Yes, it features an integrated bypass that reduces motor noise and heat.

Specifications:

Specifications	Details
Range	Altistart 01
Product or component type	Soft Starter
Device application	Asynchronous motors
Product Specific Application	Simple machine
Network Number of Phases	3 Phase
[Us] Rated Supply Voltage	380...415 V - 10...10 %
Motor Power Kw	4 kW, 3 phases at 380...415 V
Icl Starter Rating	9 A
Utilisation category	AC-53B conforming to EN/IEC 60947-4-2
Current Consumption	45 A at nominal load
Type of Start	Start with voltage ramp
Power Dissipation In W	94 W in transient state 4 W at full load and at end of starting
Complementary
Assembly Style	With heat sink
Function Available	Integrated bypass
Supply Voltage Limits	342…456 V
Supply Frequency	50...60 Hz - 5...5 %
Network Frequency	47.5...63 Hz
Output Voltage	<= power supply voltage
[Uc] Control Circuit Voltage	Built into the starter
Starting Time	1 s / 100 5 s / 20 10 s / 10 Adjustable from 1 to 10 s
Deceleration Time Symb	Adjustable from 1 to 10 s
Starting Torque	30...80 % of starting torque of motor connected directly on the line supply
Discrete Input Type	Logic (LI1, LI2, BOOST) stop, run and boost on start-up functions <= 8 mA 27 kOhm
Discrete Input Voltage	24...40 V
Discrete Input Logic	Positive LI1, LI2, BOOST at State 0: < 5 V and 13 V, >= 0.5 mA
Discrete Output Current	2 A DC-13 3 A AC-15
Discrete Output Type	Open collector logic LO1 end of starting signal Relay outputs R1A, R1C NO
Discrete Output Voltage	24 V (voltage limits: 6...30 V) open collector logic
Minimum Switching Current	10 mA at 6 V DC for relay outputs
Maximum Switching Current	Relay outputs: 2 A at 250 V AC cos phi = 0.5 and L/R = 20 ms inductive load Relay outputs: 2 A at 30 V DC cos phi = 0.5 and L/R = 20 ms inductive load
Display Type	1 LED (green) for starter powered up 1 LED (yellow) for nominal voltage reached
Tightening Torque	0.5 N.m 1.9…2.5 N.m
Motor Power Range Ac-3	4…6 kW at 380…440 V 3 phases
General
Standards	EN/IEC 60947-4-2
Product Certifications	CSA GOST C-Tick UL CCC B44.1-96/ASME A17.5 for starter wired to the motor delta terminal
IP Degree Of Protection	IP20
Vibration Resistance	1 gn (f= 13…150 Hz) conforming to EN/IEC 60068-2-6 1.5 mm peak to peak (f= 3…13 Hz) conforming to EN/IEC 60068-2-6
Shock Resistance	15 gn for 11 ms conforming to EN/IEC 60068-2-27
Relative Humidity	5…95 % without condensation or dripping water conforming to EN/IEC 60068-2-3
Ambient air temperature for operation	-10…40 °C (without derating) 40…50 °C (with current derating of 2 % per °C)
Dimensions (Height x Width x Depth)	124 x 45 x 131 mm
Weight	0.42 kg
