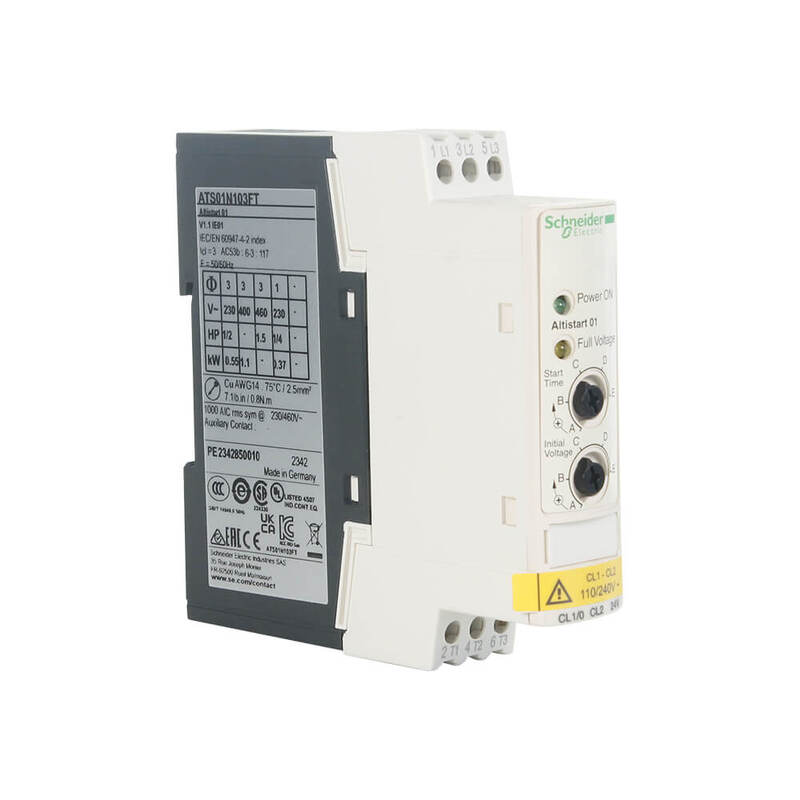

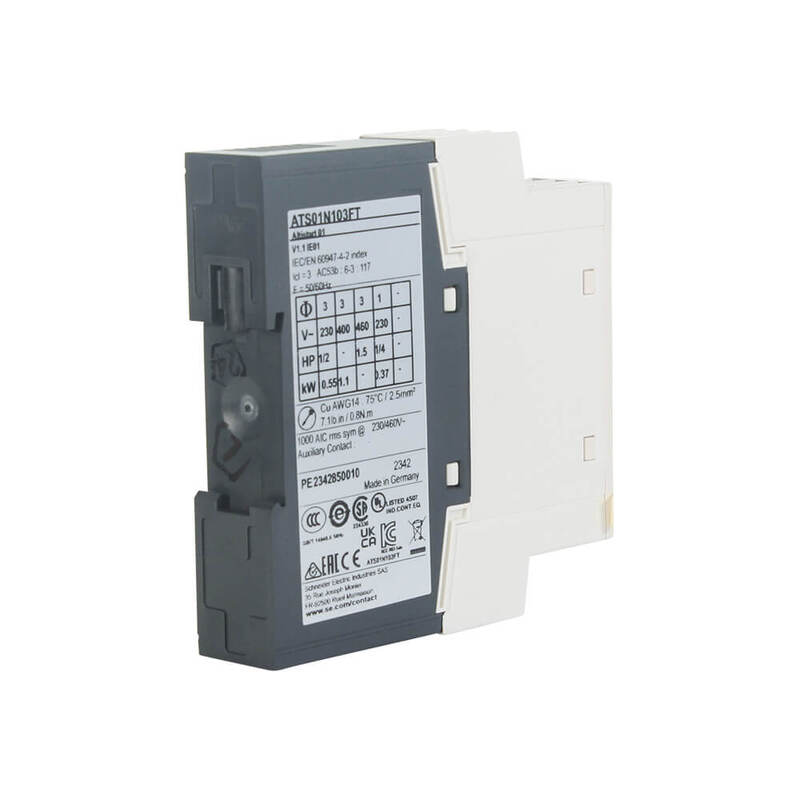

Schneider Electric ATS01N103FT | Altistart Soft Starter 3A 110-480V 0.55-1.1KW

Description:

The Schneider Electric ATS01N103FT Altistart Soft Starter is a sophisticated solution, ideal for electricians who need reliable motor control in various applications. This soft starter, suitable for DIN rail mounting, effectively feeds single or 3-phase asynchronous motors with a rating of up to 3A, making it versatile for a range of industrial and commercial uses.

Designed to handle motors with a power rating of up to 1.1kW or 1.5hp for 3-phase (110V to 480V AC) and up to 0.37kW for single-phase (110V to 230V AC), the ATS01N103FT is perfect for simple machines such as conveyors, pumps, fans, compressors, automatic doors, gates, small cranes, and belt-driven machinery.

At only 22.5mm wide, this soft starter is one of the smallest on the market, allowing for installation in nearly any setting. It features an integrated bypass, reducing noise and heat dissipation and ensuring a quiet and efficient operation.

The ATS01N103FT offers a progressive start, which limits the starting and stopping noise of motors, reducing hearing discomfort for operators on the work floor. It also provides smooth starting for machinery, avoiding mechanical stresses and extending service life. Its simple setup, requiring only two settings, makes it user-friendly and accessible, even for non-specialists.

Features:

Versatile Motor Control: Suitable for 3A, 110-480V motors.
Compact Design: One of the smallest soft starters, easy to install anywhere.
Integrated Bypass: Reduces noise and heat for efficient operation.
Simple Setup: Only 2 settings required, ideal for various applications.
Smooth Operation: Ensures progressive start and extended machinery life.

FAQ:

Q: What types of motors can this soft starter control?
A: It's designed for single or 3-phase asynchronous motors up to 3A.

Q: Is it easy to install and configure?
A: Yes, its compact size and simple two-setting configuration make it user-friendly.

Q: Does it help in reducing operational noise?
A: Absolutely, it features a progressive start that limits motor noise.

Specifications:

Specifications	Details
Range	Altistart 01
Product or component type	Soft Starter
Device application	Asynchronous motors
Product Specific Application	Simple machine
Network Number of Phases	1 Phase
[Us] Rated Supply Voltage	110...480 V - 10...10 %
Motor Power Kw	0.37 kW, 3 phases at 230 V 0.55 kW, 3 phases at 230 V 1.1 kW, 3 phases at 400 V 0.37 kW, 1 phase at 230 V
Motor power Hp	0.5 hp, 3 phases at 230 V 0.5 hp, 3 phases at 460 V 1.5 hp, 3 phases at 460 V
Icl Starter Rating	3 A
Utilisation category	AC-53B conforming to EN/IEC 60947-4-2
Current Consumption	15 A at nominal load
Type of Start	Start with voltage ramp
Power Dissipation In W	19 W in transient state 4 W at full load and at end of starting
Complementary
Assembly Style	With heat sink
Function Available	Integrated bypass
Supply Voltage Limits	99…528 V
Supply Frequency	50...60 Hz - 5...5 %
Network Frequency	47.5...63 Hz
Output Voltage	<= power supply voltage
[Uc] Control Circuit Voltage	110 V AC +/- 10 % at 30 mA 24 V AC/DC +/- 10 % at 25 mA 240 V AC +/- 10 % at 65 mA
Starting Time	1 s / 100 5 s / 20 Adjustable from 1 to 5 s
Starting Torque	30...80 % of starting torque of motor connected directly on the line supply
Discrete Output Current	2 A DC-13 3 A AC-15
Tightening Torque	0.8 N.m
Motor Power Range Ac-3	0…0.5 kW at 200…240 V 1 phase 0…0.5 kW at 200…240 V 3 phases 0.55…1 kW at 200…240 V 3 phases 1.1…2 kW at 380…440 V 3 phases
General
Standards	EN/IEC 60947-4-2
Product Certifications	CSA GOST C-Tick UL CCC B44.1-96/ASME A17.5 for starter wired to the motor delta terminal
IP Degree Of Protection	IP20
Vibration Resistance	1 gn (f= 13…150 Hz) conforming to EN/IEC 60068-2-6 1.5 mm peak to peak (f= 3…13 Hz) conforming to EN/IEC 60068-2-6
Shock Resistance	15 gn for 11 ms conforming to EN/IEC 60068-2-27
Relative Humidity	5…95 % without condensation or dripping water conforming to EN/IEC 60068-2-3
Ambient air temperature for operation	-10…40 °C (without derating) 40…50 °C (with current derating of 2 % per °C)
Dimensions (Height x Width x Depth)	100 x 23 x 100 mm
Weight	0.16 kg

Warranty starts from Invoice Date

Domestic Use: 18 Months
Commercial Use: 18 Months
Warranty Method: Return to Sparky Direct

GTIN: 3389110667134
