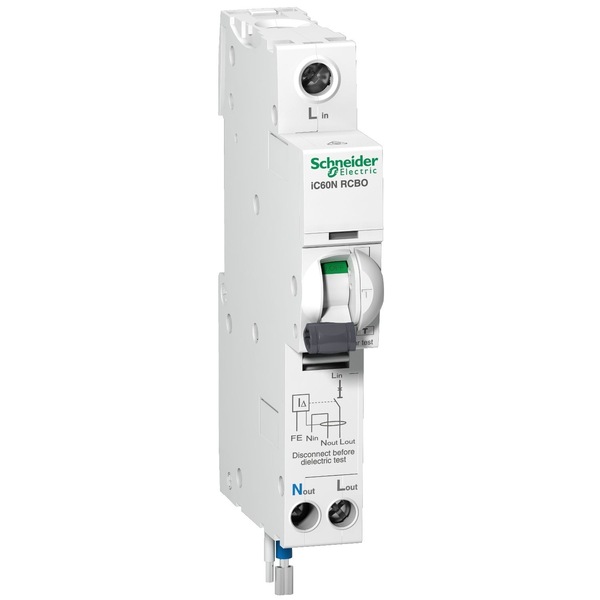

Schneider Electric Acti 9 iC60 RCBO Ic60N - Earth Leakage Circuit Breaker - 1P + N - C Curve - 32 A - 30 Ma - 240 V - A9D61832

Schneider Electric Acti 9 iC60 RCBO Ic60N - Earth Leakage Circuit Breaker - 1P + N - C Curve - 32 A - 30 Ma - 240 V - A9D61832

Hurry! 9 items left!
Price
$66.12
Collect 66 Everyday Rewards points
Log in to MyDeal to link your card
Shipping
$15.00 Australia-wide

24-48 hour dispatch
FREE SHIPPING when you spend over $495
Exclusive to products sold by Direct Wholesale Supplies
Quantity
Maximum item limit (9) has been reached.

This Acti9 iC60 is a modular residual current breaker with overcurrent protection (RCBO). It is a 1P+N circuit breaker with 1 protected pole and 32A In rated current and C tripping curve. The earth leakage protection class is A type with a sensitivity of 30mA. The earth-leakage protection time delay is instantaneous. The Icn rated short circuit breaking capacity is up to 6000A according 0 standard. Its unique Visitrip indicator reduces intervention time by showing the faulty circuit. Its Visisafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. Its fast closing mechanism independent of manual operation improves its service life. This product is compliant with IEC 61009-1 and AS/NZS 61009.1 standard. It has an electrical endurance going up to 5000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 400VAC. The Uimp rated impulse withstand voltage is 4kV. The frequency is 50Hz. It is DIN rail mountable. The width in 9mm pitches is 2. The product color is white (RAL9003). The dimensions are (W) 18mm x (H) 110mm x (D) 77.5mm. The weight is 205g. It has an IP20 degree of protection. It becomes IP40 once in modular enclosure according to IEC/EN 60529 standard. The operating temperature is from -15oC to 60oC. The storage temperature is from -40oC to 85oC.
GTIN: 3606480558276

Estimated Delivery Time Frame: 1-7 business days
