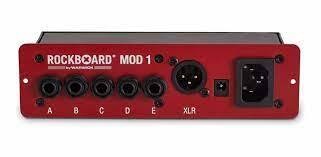

Rockboard Module 1 XLR

The improved RockBoard® MODs V2 are simple all-in-one patchbays for RockBoard pedalboards with a new, refreshed design, and compact housing. Utilising the MOD slot on all new RockBoards® (except the DUO series), they provide various cable connections to fit a wide variety of needs as a convenient patchbay. With the RockBoard® MODs you can permanently connect your pedals underneath your board and organise all connections to and from your effects setup in one convenient module.

The RockBoard® MODs provide a central access point from your instrument to your amp, as well as your power supply via IEC, and a 2.1 x 5.5 barrel thru power connector. The RockBoard® MOD 1 V2 is a pass-thru box especially designed for guitar and bass players. It can also be used to run several pedals from your board through the effects loop of your amp, or as a central access point to your pedalboard via its 4x TRS thru connections. The XLR thru connection can be used as signal output from your pedalboard to the console or PA.

• All-in-one patchbay for pedalboards
• Fits MOD slots in RockBoard pedalboards
• Compatible with a wide variety of other pedalboards
• Acts as central access point to your effects setup
• Establishes clean cable paths to and from the pedal board
• Detachable front plate for mounting on top or underneath pedalboards
• 5 x 6,3 mm / ¼" TRS thru
• 1 x XLR thru (male front / female back)
• 1 x DC 2,1 x 5,5 mm barrel thru
• 1 x AC IEC thru (male front / female back)
• All connections mirrored on backside
• Dimensions with front plate (W x D x H) 175 x 85 x 47 mm / 6 57/64" x 3 11/32" x 1 27/32"
• Dimensions without front plate (W x D x H) 160 x 85 x 33 mm / 6 19/64" x 3 11/32" x 1 19/64"
• Weight 450 g / 0.99 lbs
• Includes mounting screws, counter nuts and TX wrench
