Renogy New Edition Voyager 12/24V 20A PWM Waterproof Solar Charge Controller

Renogy New Edition Voyager 12/24V 20A PWM Waterproof Solar Charge Controller

Be the first to review this product

Limited Stock!

Price	$69
	Collect 207 Everyday Rewards points Score 3x points on every order Ends 11:59pm 03/12/2024. Exclusions & T&Cs apply Log in to MyDeal to link your card
Shipping	Free shipping to select areas Unable to calculate delivery for , please Contact Us Delivery unavailable to Change
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

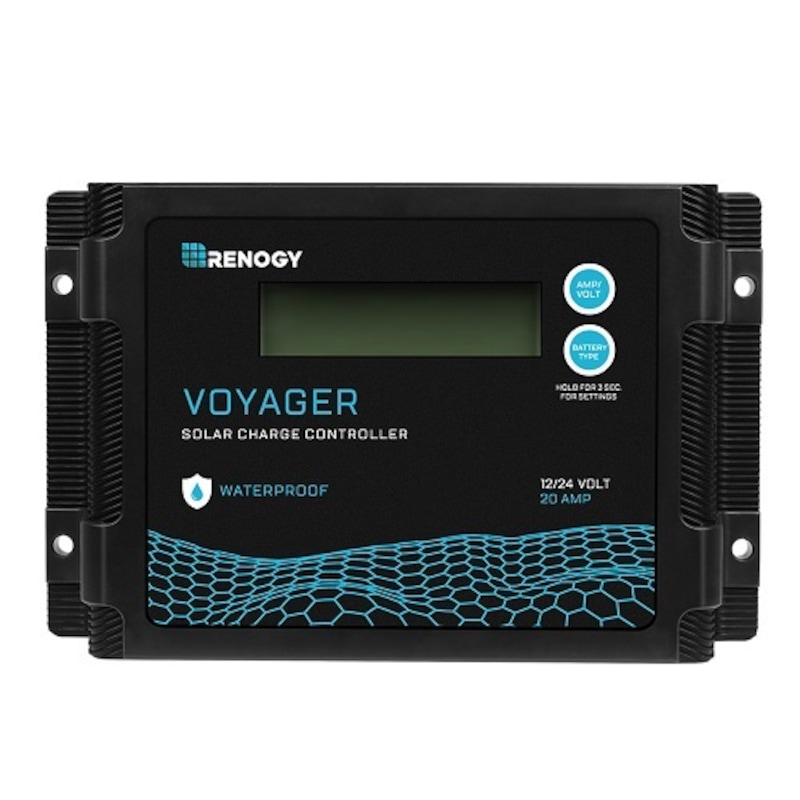

Renogy New Edition Voyager 12/24V 20A PWM Waterproof Solar Charge Controller

The Voyager 20A is a class-leading 20-amp charge controller with an IP67 rating. It is perfect for outdoor use and can withstand water spray, rain, and condensation. Equipped with advanced PWM technology, it supports both 12V and 24V off-grid applications and is compatible with 4 different battery types, including Lithium Iron Phosphate. The Voyager 20A also ensures your system's longevity with solar panel, battery, and controller protections.

Features:

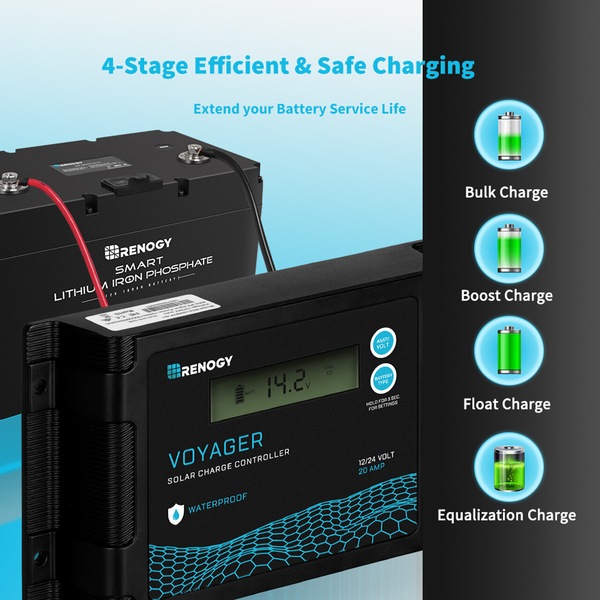

4-STAGE PWM Technology

The Voyager controller is equipped with advanced smart PWM technology with high charging efficiency. It provides 4-stage charging (Bulk, Absorption, Float and Equalization) in order to protect the battery.

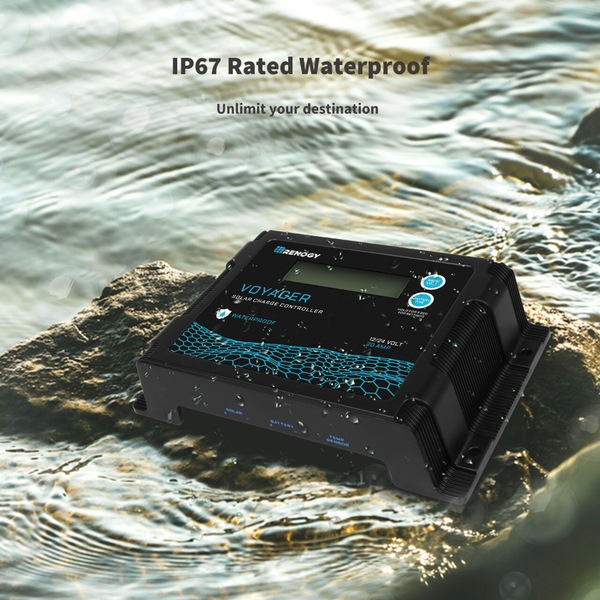

IP67 Rated Waterproof

With an IP67-rated waterproof design, the Voyager controller is suitable for outdoor use and will remain fully operational when exposed to water spray, rain, or condensation.

Multiple Protections

The Voyager controller has multiple intelligent protections against reverse polarity, overcharge, short-circuit, reverse current, overload, and over-discharge, keeping your battery fully protected.

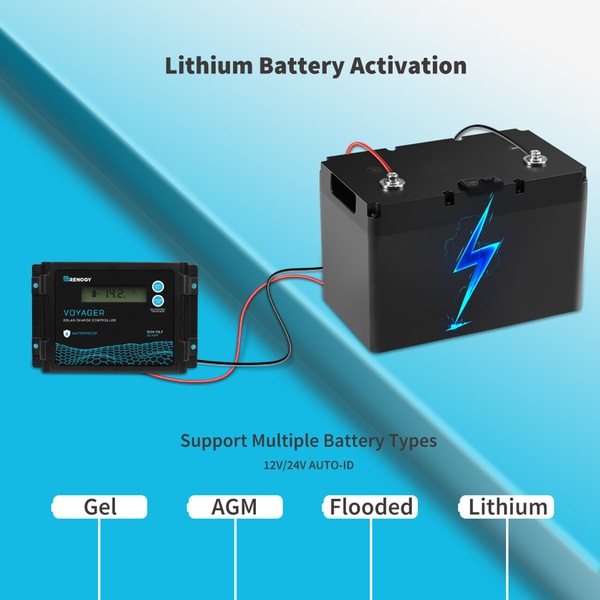

Support Multiple Battery Types

The Voyager controller can automatically sense 12V or 24V system voltage when paired with Gel, AGM, or Flooded batteries. It also comes with a Lithium activation feature.

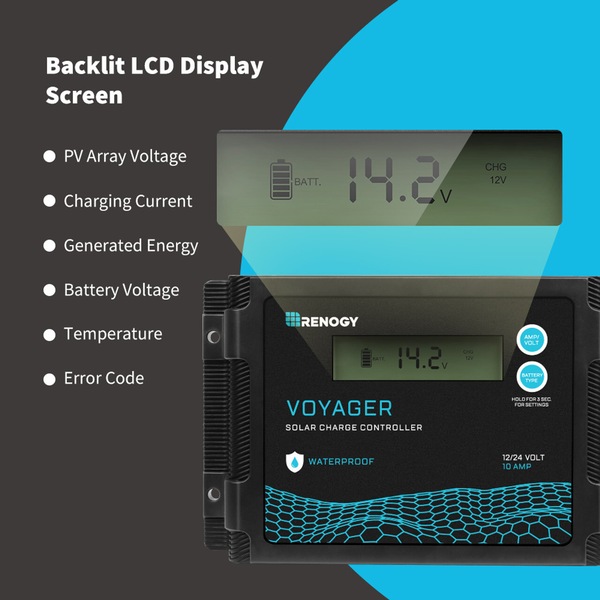

Backlit LCD displaying system

The Voyager comes with an LCD display showing accurate and timely information including charging current, generated energy, temperature, battery voltage, and error codes that allow users to monitor and control charging.

Specifications:

Nominal System Voltage: 12V/24V Auto-Detect
Rated Charge Current: 20A
PV Input Voltage Range：15V-55V
Max. PV Open Circuit Voltage：12V@25V 24V@55V
Max. PV Input Power：12V @ 260W / 24V@520W
Max Battery Voltage：32V
Power Consumption：12V @ 0.24W / 24V@0.74W
Battery Types： SLD/AGM, GEL, FLD, LI
Protection Level： IP67
Operating / Storage Humidity：10%-90%, No Condensation
Operating Temperature Range： -31°F - 113°F
Temperature Compensation：-3mV / C / 2V excludes LI
Storage Temperature Range： -31°F - 167°F
Dimensions: 1544 x 97 x 36mm
Weight: 0.25kg

GTIN: 00810009713524
