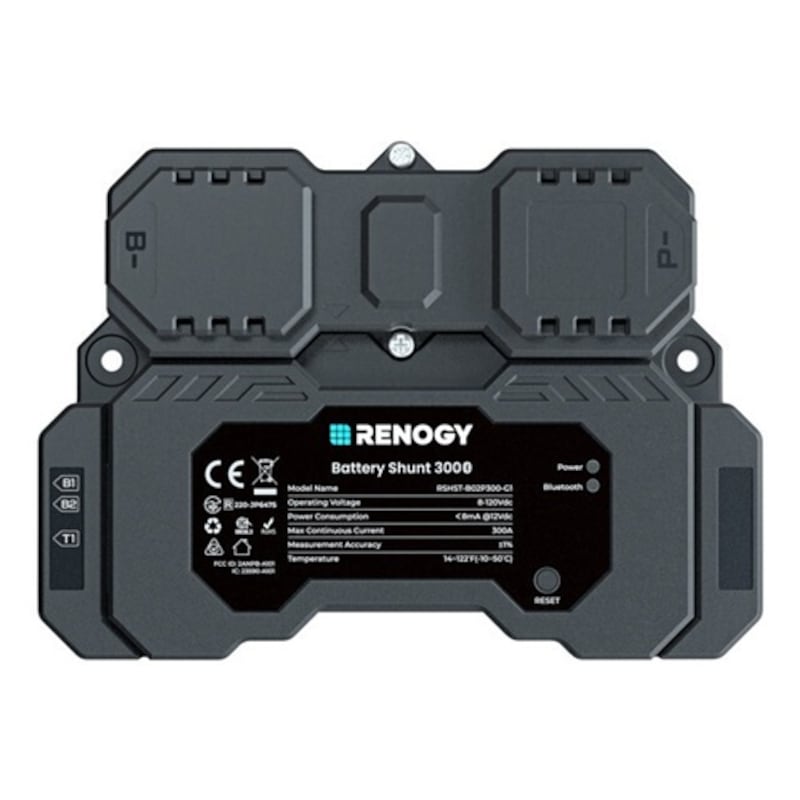

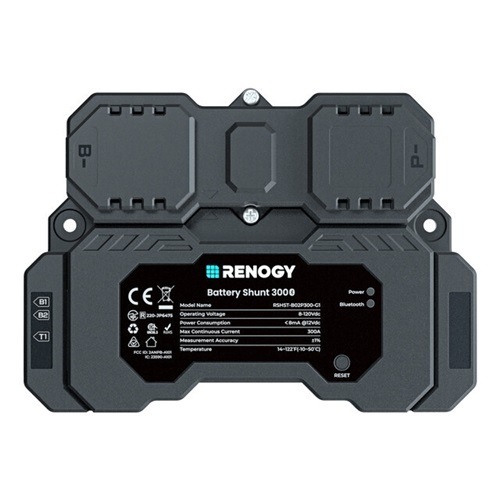

Renogy Battery Shunt 300

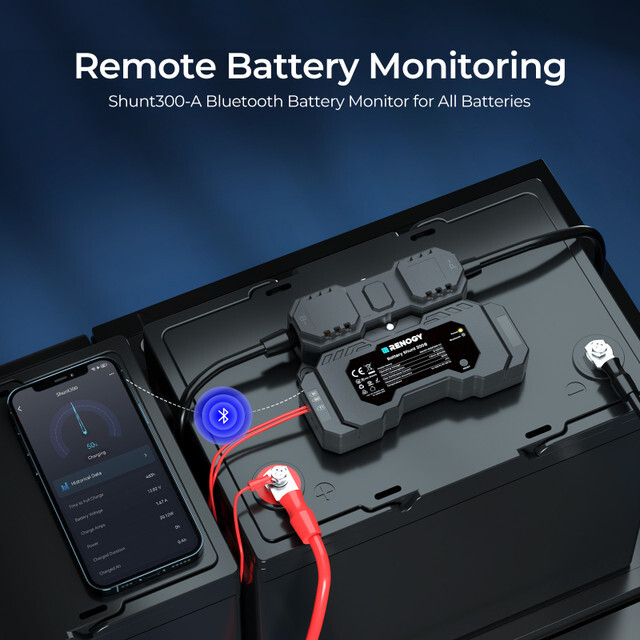

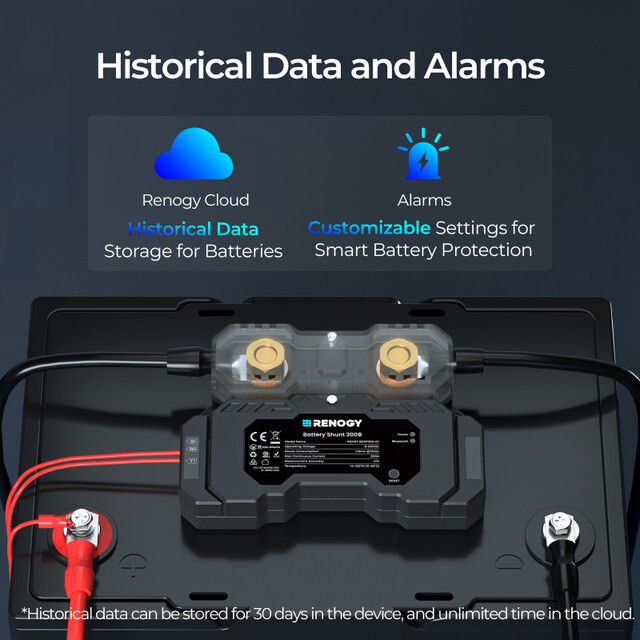

Track Battery Data Performance Over Time. In addition to real-time data monitoring, Battery Shunt 300 also helps record historical data via Renogy ONE Core and DC Home App, allowing you to make reasonable decisions about your entire power system.

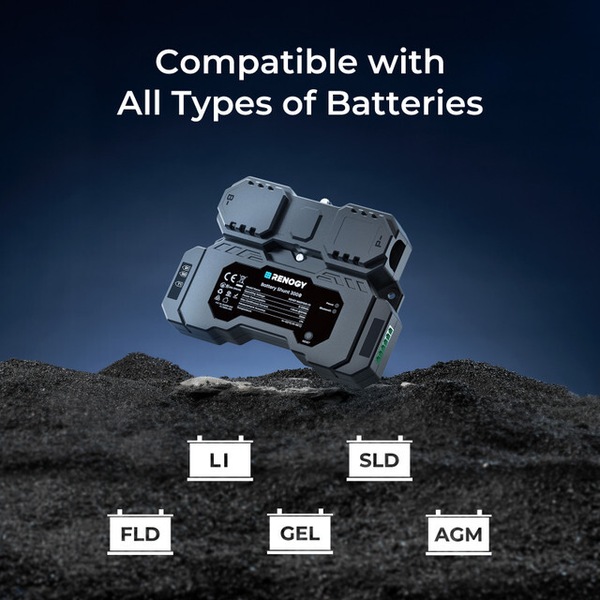

Compatible With All Types of Batteries. The Battery Shunt 300 is compatible with all your starter battery and main batteries, including lead acid (AGM, GEL), lithium iron phosphate, lithium-ion and nickel-metal hybrid.

Certified Performance. The Battery Shunt 300 has undergone comprehensive testing to not only meet but also surpass exceptionally high standards of excellence.

Battery Temperature Sensor. Temperature sensors for batteries are indispensable for safety, longevity, efficiency, and data-driven decision-making in various applications.

Effortless Installation in 5 Minutes. It can be placed on top of the battery or securely mounted on the wall with screws. The connection points feature protective covers to effectively safeguard against any loosening caused by various movements.

Fast Connection in 4 Steps. When paired with Renogy ONE Core and DC Home, the Battery Shunt 300 provides a seamless real-time data display experience.

Quick Setup Involves Simple Operations to Get Started. The initial steps for a quick setup are designed to be user-friendly and straightforward, ensuring that users can get started with ease.

Features:

• Remote monitoring and control via Renogy ONE/DC Home App.
• Compatible with various batteries：Lead Acid, LFP, Li-ion, and Ni-MH.
• Displays State of Charge, temperature, and starter battery voltage.
• Records historical data and issues alerts via DC Home app.
• Not compatible with ONE M1 currently. Actual package may vary.

Specifications:

• Power Supply: 8 - 120 VDC
• Power Consumption: <0.1 W
• Communication: Bluetooth LE and BLE Mesh
• Max continuous current: 300A
• Max peak current: 500A(<10s)
• Current accuracy: ±1%
• Current Resolution: 0.01 A
• Battery Capacity: 1 - 6500Ah
• Voltage Input Range: 8 - 60V
• Voltage input resolution: 10 mV
• Temperature sensor range: -20~80℃
• Temperature sensor accuracy: ±1%
• Operating Temperature: -20 ℃ to 50 ℃
• Operating Humidity: 0% to 95% RH
• Operating Altitude: Less than 2000m above sea level
• Installation: mounted on the wall
• Battery connection: M10 bolts
• Weight: 260g

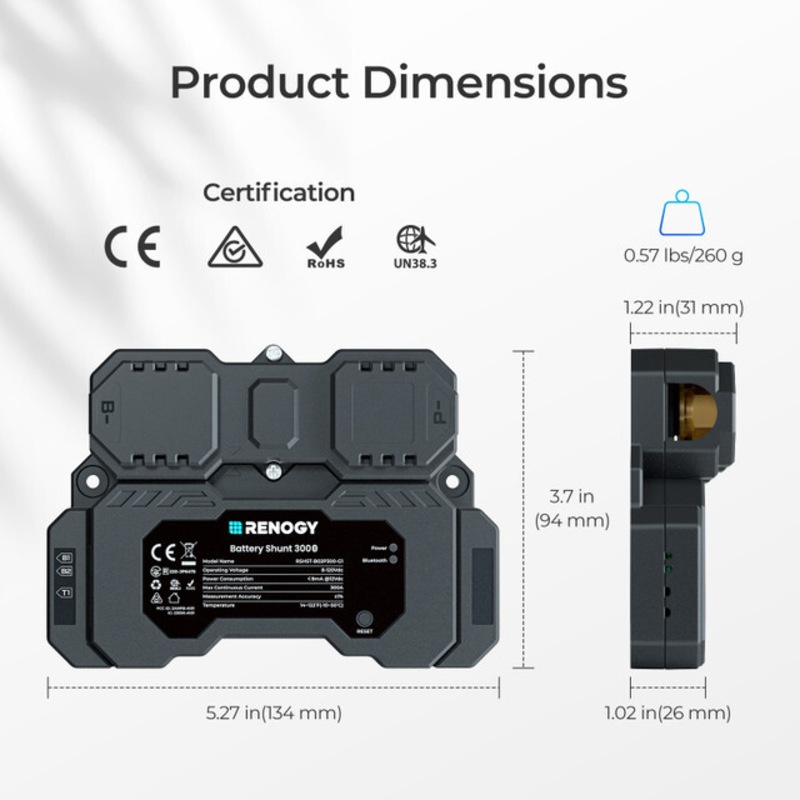

• Dimensions: 134 x 97 x 31 mm
• Warranty: 1 year
• Certifications: CE, FCC ID,IC ID,RCM,TSCA, RoHS,UN38.3,TELEC
