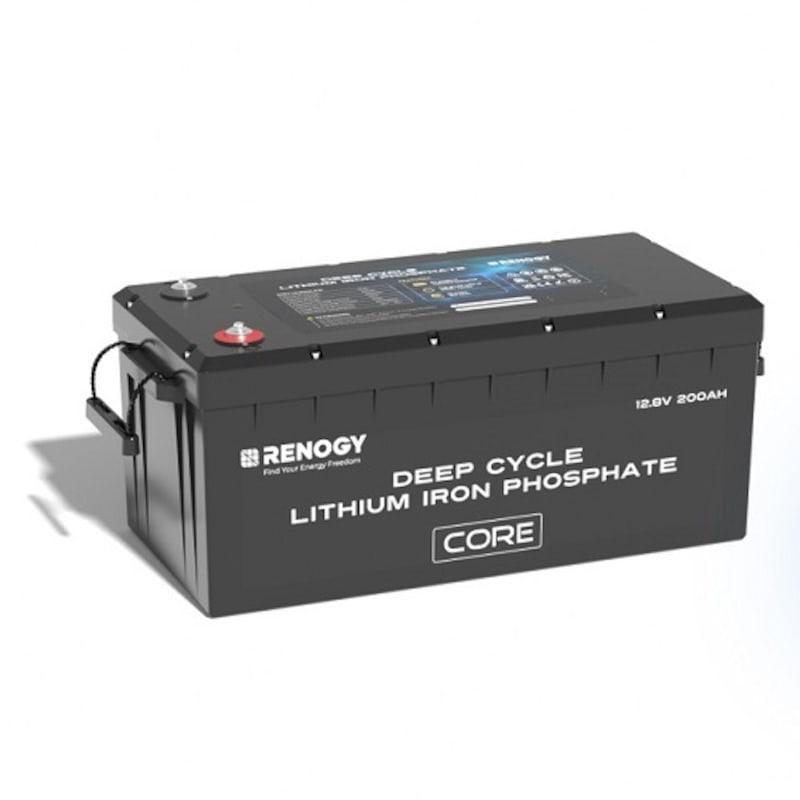

Renogy 12V 200Ah Core Series Deep Cycle Lithium Iron Phosphate Battery

Meet Renogy 12V 200Ah Core Series Battery, your trusted, one-stop solution for upgrading from Lead to Lithium. Compatible with Renogy's solar panels, solar charge controllers, and inverters, this battery delivers a seamless upgrade experience without any compatibility issues.

With a positive capacity tolerance of up to 6%, the Core series batteries provide extra power beyond their rated capacity, ensuring that you're covered during outages, hurricane season, and other emergencies. Connect multiple batteries in series-parallel to keep your system running longer and it can be used in trolling motor.

Off-grid living can be challenging, but the Renogy 12V 200Ah Core Battery offers a true 200A battery management system (BMS), low-temp cut-off (for charging), and IP65 protection, giving you the confidence to tackle any obstacles.

Whether you are planning an upgrade from old lead-acid batteries, or starting to build your first-ever off-grid power system, the Renogy 12V 200Ah Core LiFePO4 Battery is your go-to option to get your project done right in an easier & faster way.

Features:

• True All-Round BMS Protection. Built in with a reliable 200A battery management system (BMS) for regulating high discharge current of up to 200A. The included low-temperature cut-off makes for safer charging in winter and consistent performance in the long run.
• One-Stop Upgrade Solutions. Get solar panels, solar charge controllers, inverters, and accessories while upgrading from lead-acid batteries here at Renogy. No more worries about compatibility between each component. Have your system built up easier & faster in one go.
• Max. 6% More Capacity. Renogy 12V 200Ah Core Series Battery provides max. 6% more power compared with the rated capacity, ramping the usable capacity up to 212Ah.

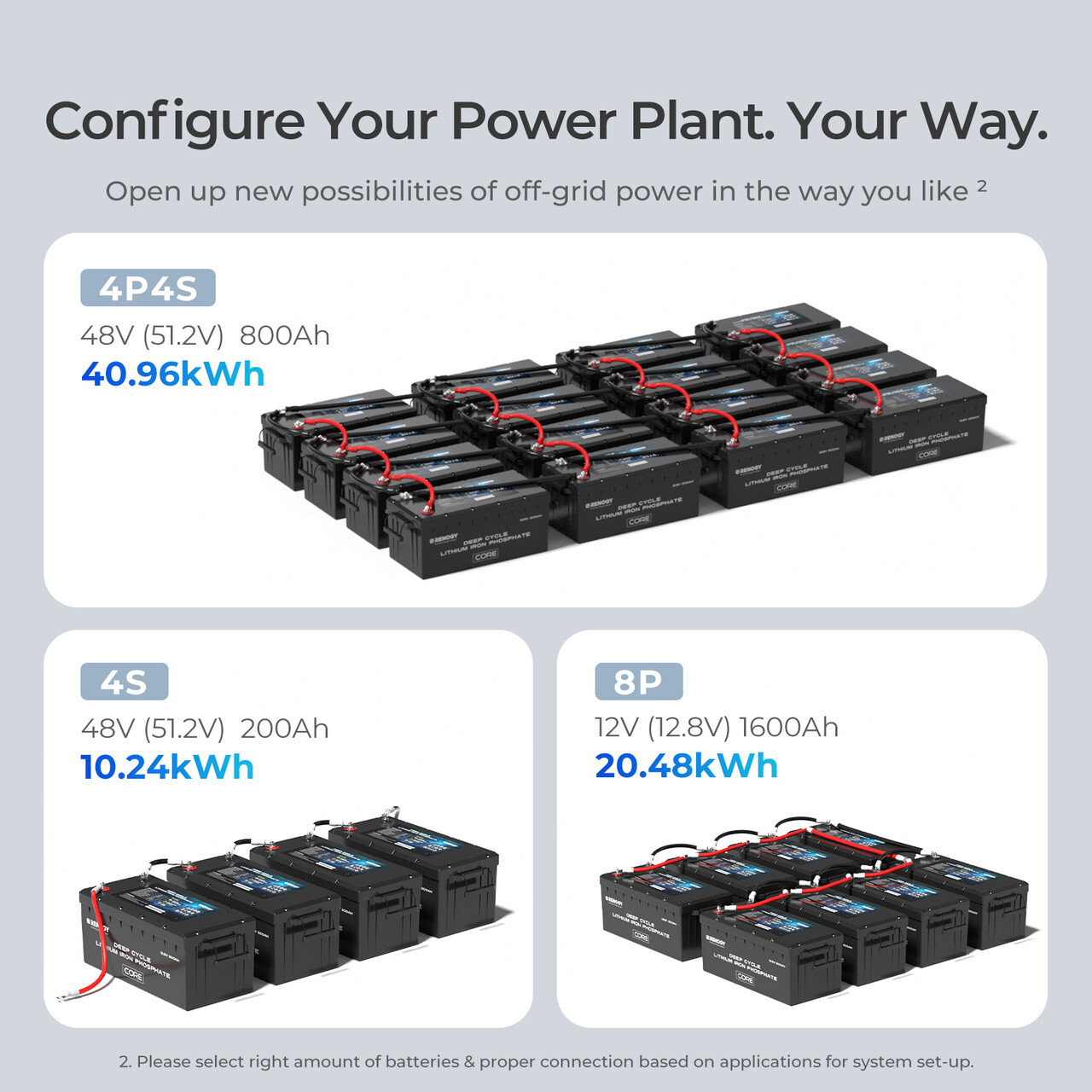

• Versatile & Seamless Connection. Set up your system in the way you want, be it series, parallel, or series-parallel connection. Expandable up to 16 in series-parallel for maximum power up to 40.96kWh (4P4S, 51.2V 800Ah).
• True All-Round BMS Protection. Built in with a reliable 200A battery management system (BMS) for regulating high discharge current of up to 200A. The included low-temperature cut-off makes for safer charging in winter and consistent performance in the long run.
• Find Your Spot in Our Community. Register your products, share experiences, learn new knowledge, and connect with like-minded people all in one place-Renogy Power Plus Community. More benefits await your exploration.

Specifications:

• Rated Capacity (0.5C, 25°C): 200 Ah
• Operation Temperature Range Charge: 0°C to 55°C
• Nominal Voltage: 12.8 V
• Operation Temperature Range Discharge: -20°C to 60°C
• Energy: 1280Wh
• Storage Temperature Range: -13°F to 149°F / -25°C to 65°C
• Cycle Life(0.5C/1C, 25℃): 5000 Cycles (80% DOD 80% EOL)Operation Relative Humidity: 10% to 95%
• Charge Voltage: 14.4 V
• Protection Rating: IP65
• Maximum Continuous Charge Current: 100 A
• Maximum Continuous Discharge Current: 200 A
• Dimension (L x W x H): 522 x 240 x 219mm
• Weight: 21.45 kg
