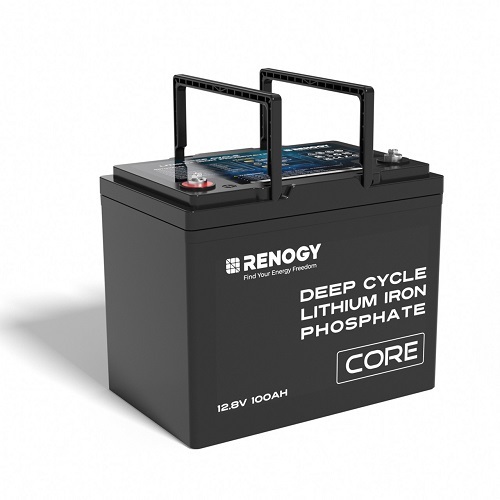

Renogy 12V 100Ah Core Series Lithium Battery

Meet Renogy 12V 100Ah Core Series Battery, your trusted, one-stop solution for upgrading from Lead to Lithium. Compatible with Renogy's solar panels, solar charge controllers, and inverters, this battery delivers a seamless upgrade experience without compatibility issues.

With a positive capacity tolerance of up to 6%, the Core series batteries provide extra power beyond their rated capacity, ensuring that you're covered during outages, hurricane season, and other emergencies. Connect multiple batteries in series-parallel to keep your system running longer and it can be used in trolling motor.

Off-grid living can be challenging, but the Renogy 12V 100Ah Core Battery offers a true 100A battery management system (BMS), low-temp cut-off (for charging), and IP65 protection, giving you the confidence to tackle any obstacles.

Whether you are planning an upgrade from old lead-acid batteries, or starting to build your first-ever off-grid power system, the Renogy 12V 100Ah Core LiFePO4 Battery is your go-to option to get your project done right in an easier & faster way.

Features:

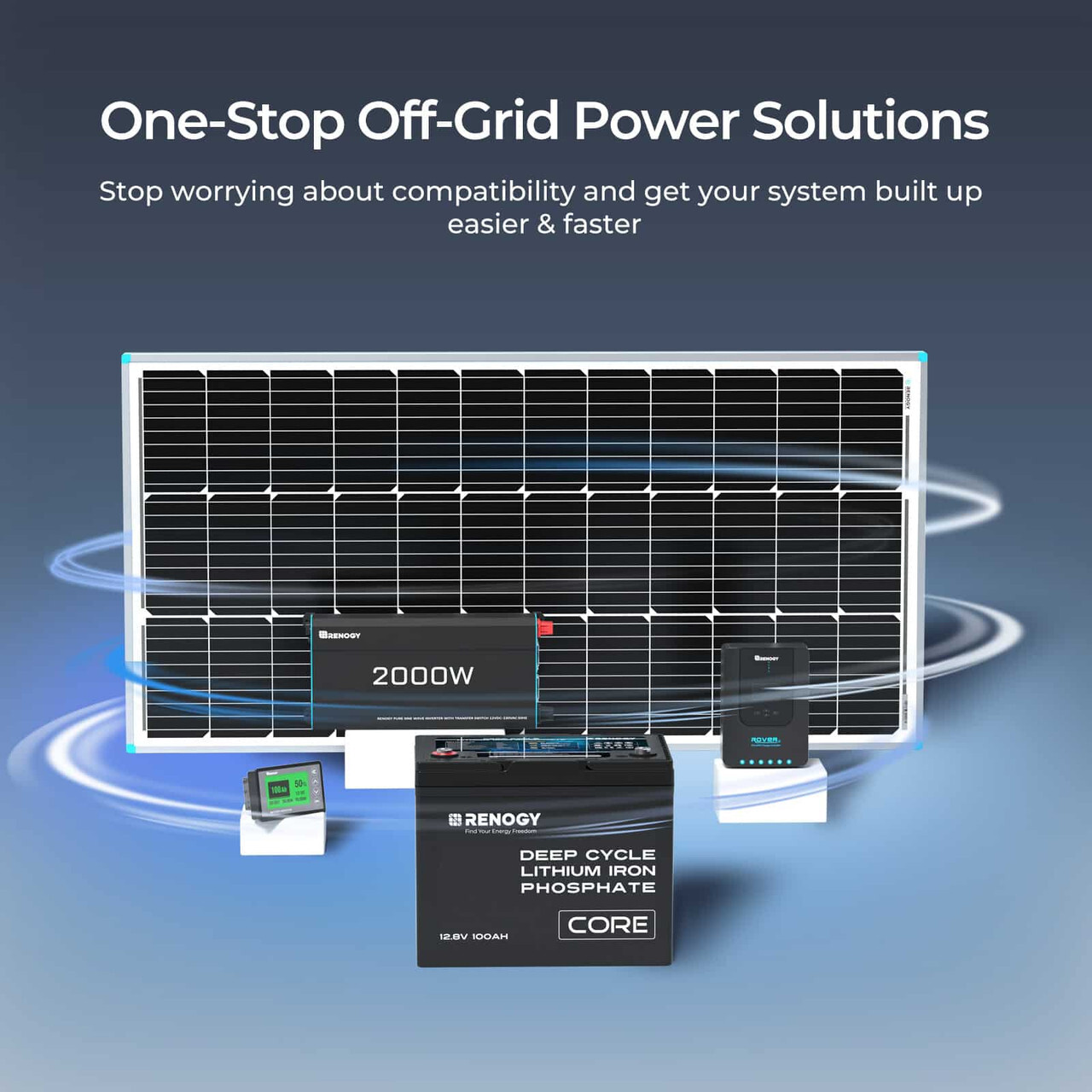

• One-Stop Upgrade Solutions: Get solar panels, solar charge controllers, inverters, and accessories while upgrading from lead-acid batteries here at Renogy. No more worries about compatibility between each component. Have your system built up easier & faster in one go.
• Max. 6% More Capacity: Renogy 12V 100Ah Core Series Battery provides max. 6% more power compared with the rated capacity, ramping the usable capacity up to 106Ah.

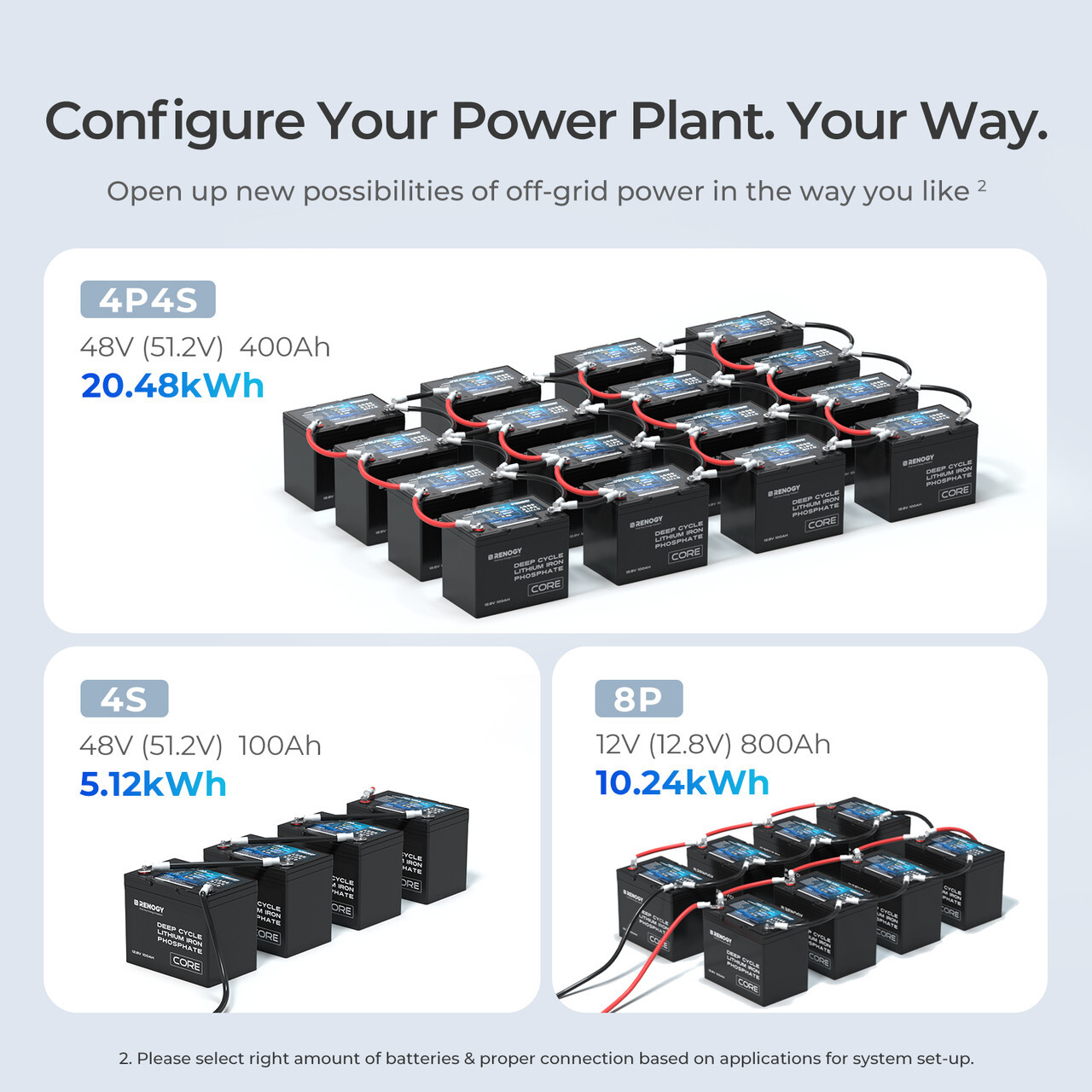

• Versatile & Seamless Connection: Set up your system in the way you want, be it series, parallel, or series-parallel connection. Expandable up to 16 in series-parallel for maximum power up to 20.48kWh (4P4S, 51.2V 400Ah).

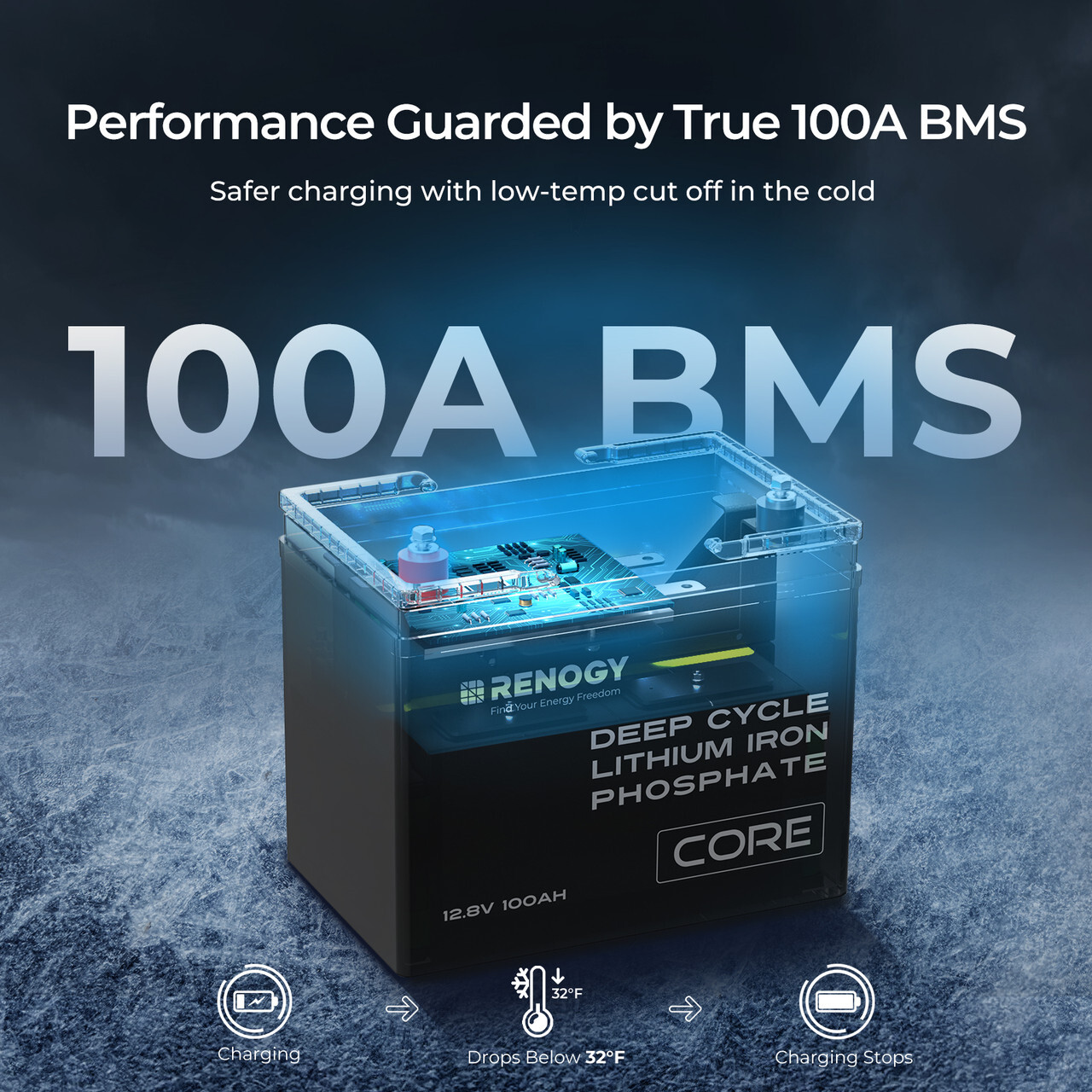

• True All-Round BMS Protection: Built-in with a reliable 100A battery management system (BMS) for regulating high discharge current of up to 100A. The included low-temperature cut-off makes for safer charging in winter and consistent performance in the long run.
• Responsive Customer Support: Whether you need help with sizing, installation tips, or any other support, we strive to have you covered with timely assistance in 24 hours. The Renogy 12V 100Ah Core Series Battery comes with a 5-year limited warranty.

Specifications:

• Rated Capacity (0.5C, 25°C): 100 Ah
• Operation Temperature Range Charge: 0°C to 55°C
• Nominal Voltage: 12.8 V
• Operation Temperature Range Discharge: -20°C to 60°C
• Energy: 1280Wh
• Storage Temperature Range: -25°C to 65°C
• Cycle Life(0.5C/1C, 25℃): 5000 Cycles (80% DOD 80% EOL)Operation Relative Humidity: 10% to 95%
• Charge Voltage    14.4 V
• Protection Rating: IP65
• Maximum Continuous Charge Current: 100 A
• Dimension (L x W x H): 260 x 169 x 211 mm
• Weight:    10.5 kg
