| Specifications |
| Warranty |
2 Years |
| Input (Operating) Voltage |
12V/24V |
| Output Current Rating (Cont.) |
10A |
| Length (mm) |
75 |
| Width (mm) |
30 |
| Height (mm) |
24 |
| Weight (kg) |
0.07 |
Features
User adjustable 1- 60 seconds/minutes
Change over type relay
Standard automotive relay base
Fully customisable upon request
TIM05 is suitable for instances where a delayed turn-off or temporary output at turn on is required, such as cabin lights, exhaust fans and switching inverters.

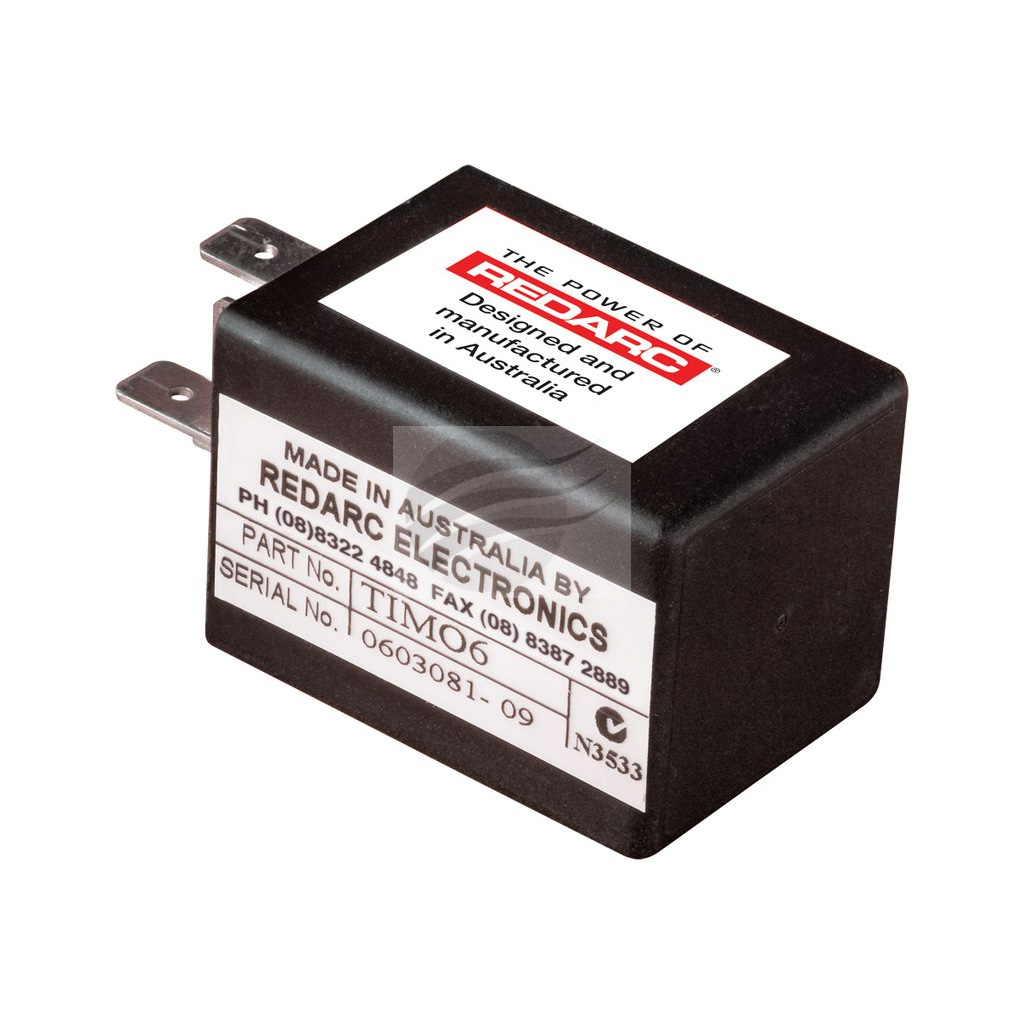

Tim06 is suitable for instances where a delayed turn-on or temporary output at turn off is required, such as thermo delays and courtesy lights.

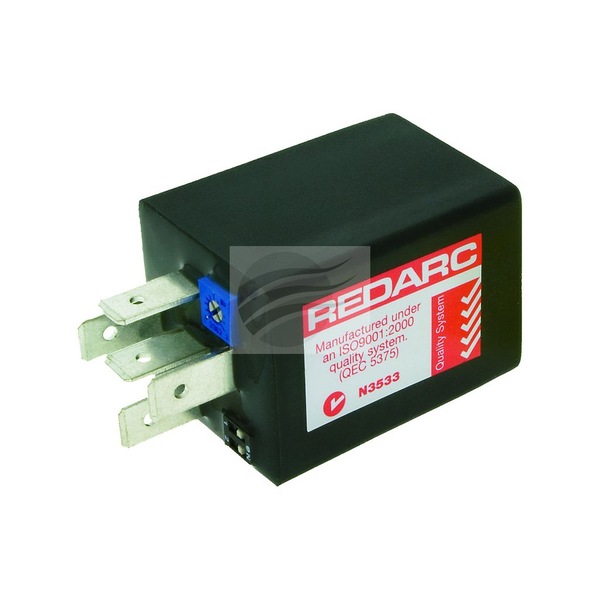

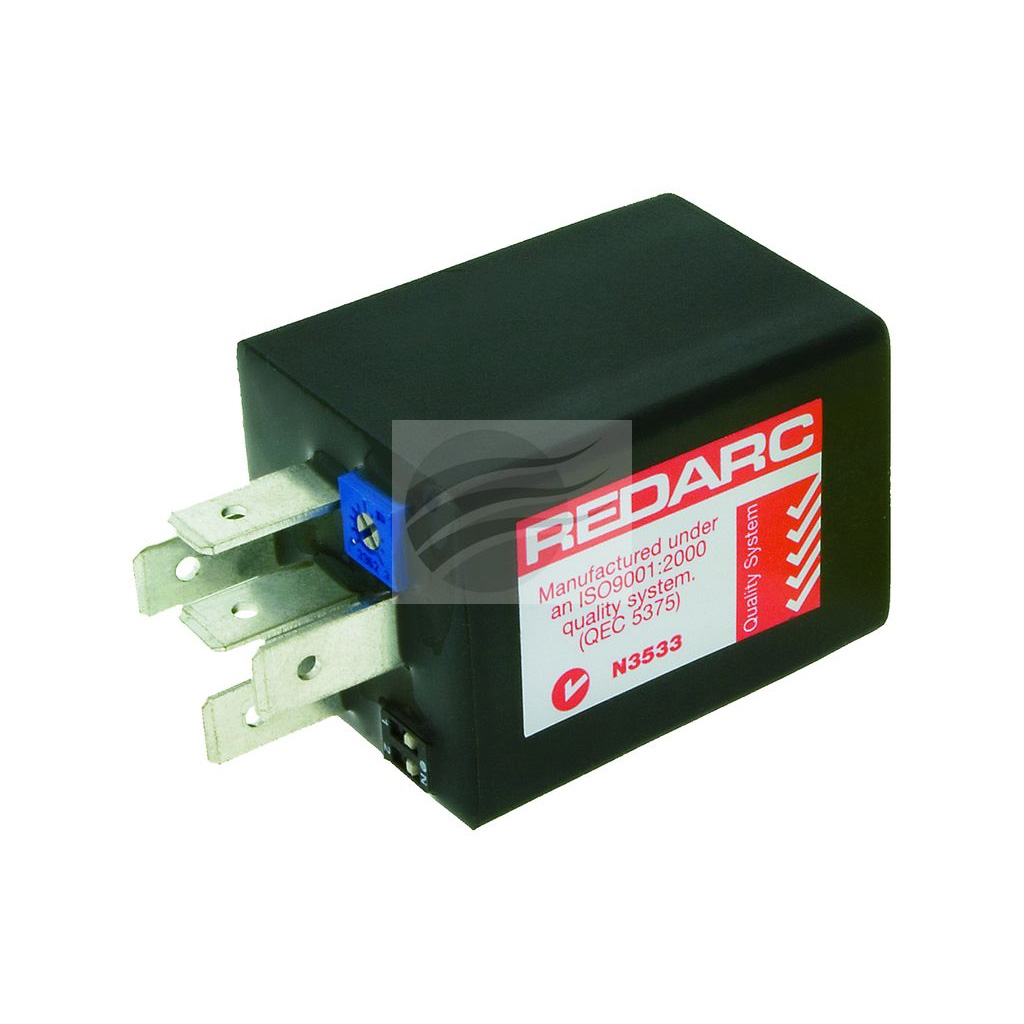

Redarc Relay Timer Delayed On/Off Temp Output @ Turn on/off
| Specifications |
| Warranty |
2 Years |
| Input (Operating) Voltage |
12V/24V |
| Output Current Rating (Cont.) |
10A |
| Length (mm) |
75 |
| Width (mm) |
30 |
| Height (mm) |
24 |
| Weight (kg) |
0.07 |
Features
User adjustable 1- 60 seconds/minutes
Change over type relay
Standard automotive relay base
Fully customisable upon request
TIM05 is suitable for instances where a delayed turn-off or temporary output at turn on is required, such as cabin lights, exhaust fans and switching inverters.
Tim06 is suitable for instances where a delayed turn-on or temporary output at turn off is required, such as thermo delays and courtesy lights.
The REDARC Multi Function Timer (TIM05) is a timer relay for 12 volt and 24 volt applications. Suitable for mobile and stationary installations, they feature customisable time and switching mode settings.
The TIM05 & TIM06 timers can be used in a 12V or 24V negative ground automotive system, are designed to plug into a standard automotive relay base and have the same pin numbers as a standard automotive relays (underside shown on diagram). Contacts operate in a similar way to a changeover relay.
The timer switches the internal relay to provide output on PIN 87. (Positive output only)
The timer is started by switching pin PIN 86 ON or OFF (depending on Switch 1).
Use Switch 2 to select time range between SECONDS and MINUTES.
Use the potentiometer to adjust time (increasing in clockwise direction).
The TIM05 & TIM06 can supply a maximum current of 10 AMPS.
