QTC2080i- High Intelligibility Ceiling Monitors
[6" x 1"- 80W]
Clear sound and low visual profile;
The QTC2080i is the high fidelity solution where full range commercial audio is required.
Sound designers and installers will like the versatility of the QTC2080i.
It is a handy audio tool when applied to the broad requirements of today's sophisticated commercial sound environments.
The QTC2080i can be wired as a 16 low impedance speaker or a 70/100 volt installation with selectable wattage tapings.
_
_
A Closer look
The objective for the QTC2080i is to give high fidelity and enhanced voice intelligibility in an easy to install ceiling speaker format.
The appearance of the installed speaker is clean and follows the aesthetic ideal of minimal visual distraction.

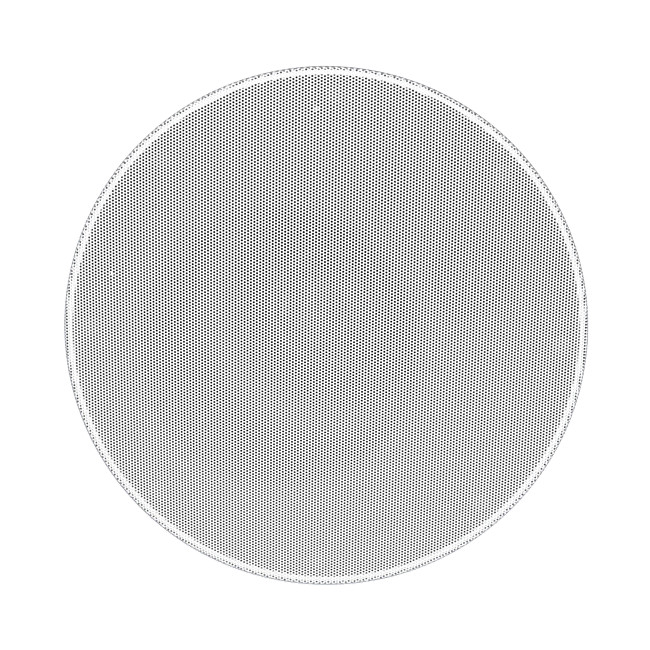

The magnetic grill design means that there is a very neatfinish to the finished installation.
The result is a refined appearance that fits visually into any environment, high fidelity music and speech in a package that is easy to install.
The QTC2080i is a premium quality ceiling speaker with a wide range of installation and wiring possibilities.
As a 16 loudspeaker up to four units can be connected to achieve a 4 load to an amplifier.
This allows for up to eight speakers to be connected toa stereo amplifier with the result being a very high fidelity distributed system.

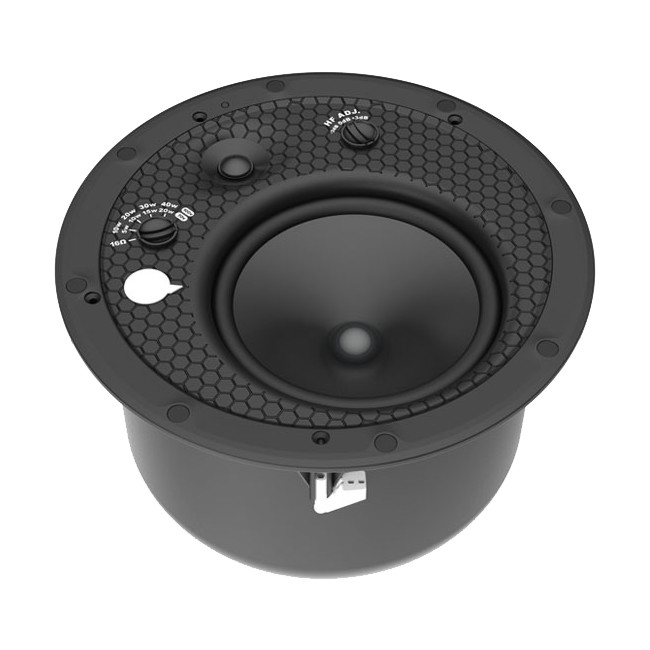

Multiple 70/100 volt tapings and an EQ contour can be selected from the front baffle of an installed speaker.
This allows for fine tuning after installation if desired.

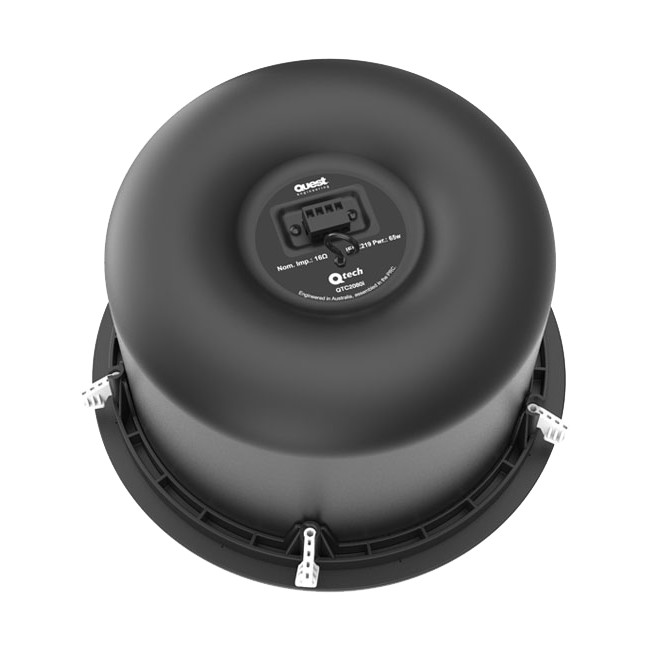

The aluminium fire resistant casing is acoustically damped and contains a suspension ring on the top of the casing for hanging installation or strain relief.
The drivers and internal electronics are custom designed specifically for the QTC 2000 series.
For enhanced bass response, the QTC2080i contains a completely new type of woofer design.
Quest has designed a combination driver and passive resonance circuit to simulate the action of a reflex port, but with a more extended frequency range.
The lightweight of the cabinet and components mean thatthe weight stress on ceiling tiles is low and reinforcing bars are not required.
Installers will also like the Quest custom ceiling cut-out masking tool supplied with every speaker.
The QTC2080i is the high quality commercial audio solution that makes both commercial sense.
_
Specifications*
| Maximum SPL (calculated) | 105dBSPL |
| Frequency Response | ±2dB 90Hz - 20kHz |
| Sensivitivty | 90dB 1W @ 1m |
| Power | 65W rms |
| Impedance | 16 |
| Transformer Taping | 100V line: 10W / 20W / 30W / 40W |
| 70V line: 5W / 10W / 15W / 20W |
| Cutout Size | 254mm |
| Dimensions *W x D | 276mm x 160mm |
| Net Weight | 2.6 kg |
* Quest Engineering reserves the right to make changes in specifications, or products without prior notice.
** The figures shown above are ‘real world', usable specifications and are conservative as a result. Quest Engineering does not believe in portraying misleading or exaggerated specifications. Specifications
