The all new QuickFit coaxial series of ceiling speakers features 3 new models, each model comprises a 2 way coaxial driver producing high SPL and intelligibility.
The frameless grills provide a modern sleek look sure to please end users, consultants and architects alike.
If you require a black ceiling speaker it's as easy as changing the grill.
A black grill for each model can be purchased separately as an accessory.
The QFC5CS, QFC6CS and QFC8CS series of QuickFit ceiling speakers are the perfect choice for situations demanding high intelligibility and SPL.
Recommended for function rooms, school halls, retail spaces, boardrooms, place of worship, RSL's, clubs, rubs, Restaurants and many other commercial applications.

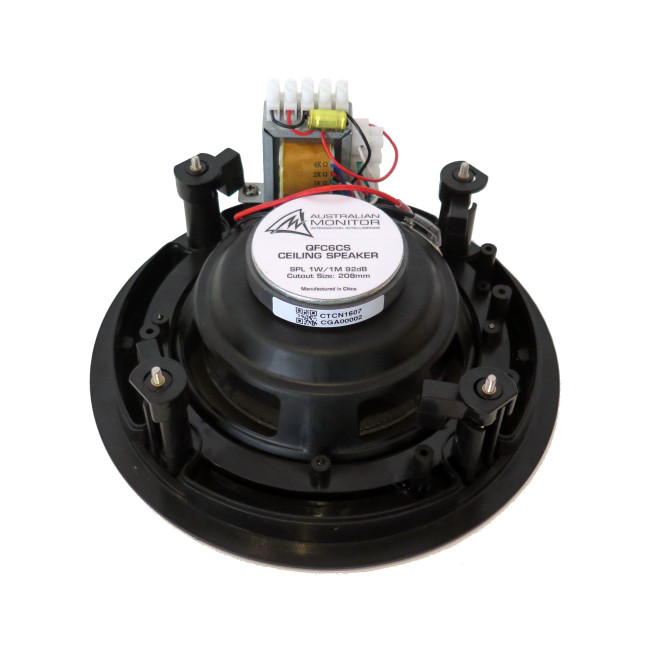

Each model also features a supervisory capacitor as standard to allow for evacuation system integration.
EASE®GLL files simulation files are available for QuickFit ceiling speakers. EASE®is a registered trademark of AFMG Technologies GmbH

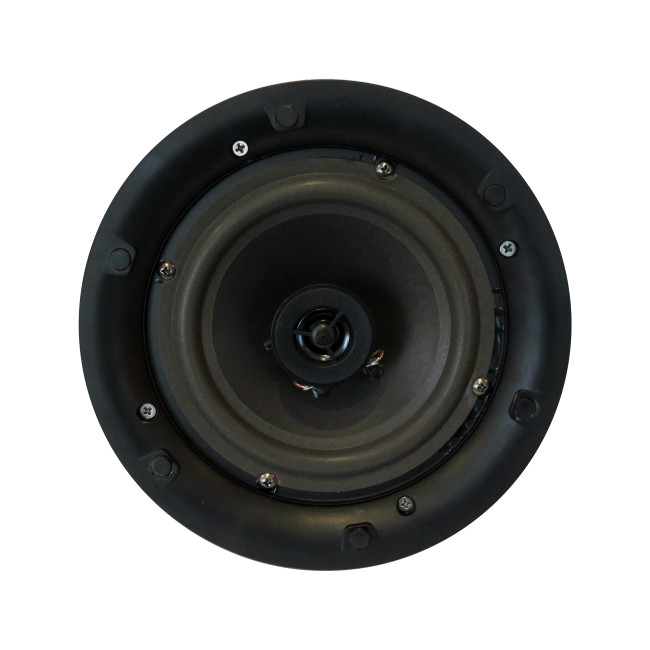

• 6 inch coaxial high powered driver

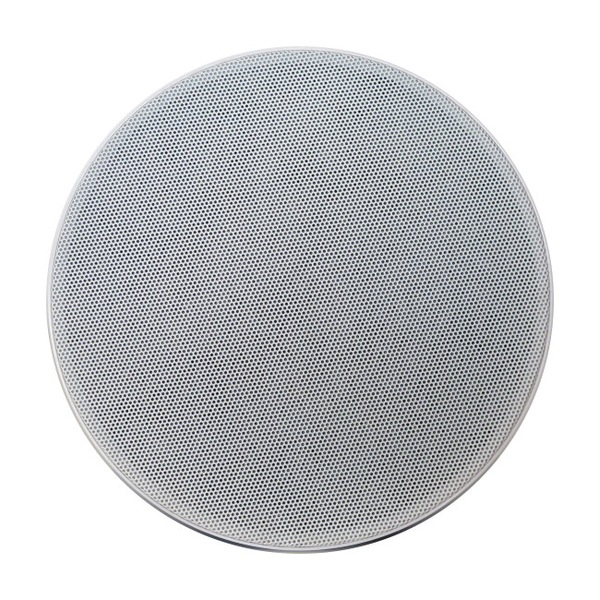

• QuickFit white frameless powder coated steel grill
• 2.5, 5, 10, 20 watt taps @ 100V
• Evac. capacitor as standard
_
Form Factor Ceiling Max Continuous Power 20W Tappings 20W-10W-5W-2.5W-1.25W Max Program Power 40W IP Rating No Max Peak Power 80W EASE Model Yes SPL 1W/1m 92dB Powered Passive Max SPL RMS 105dB Driver Diameter 6" & 25mm Max SPL Peak 111dB Colour White (RAL 9010) Frequency Response (-3dB) 70Hz - 20kHz Warranty 5 years Dispersion 100deg
Product Dimensions
(W x D x H)232mm x 90mm Dimensions
(W x D x H)110mm x 237mm x 237mm Net Weight 1.2 Kg Weight 1.5 Kg GTIN EAN 9323383019423 _
