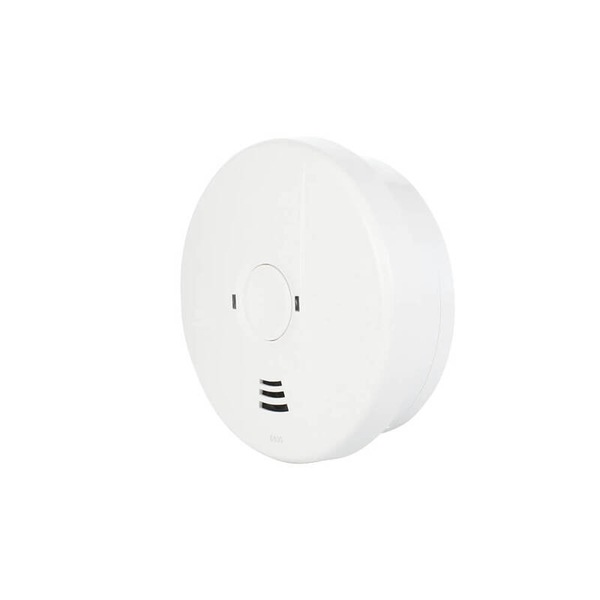

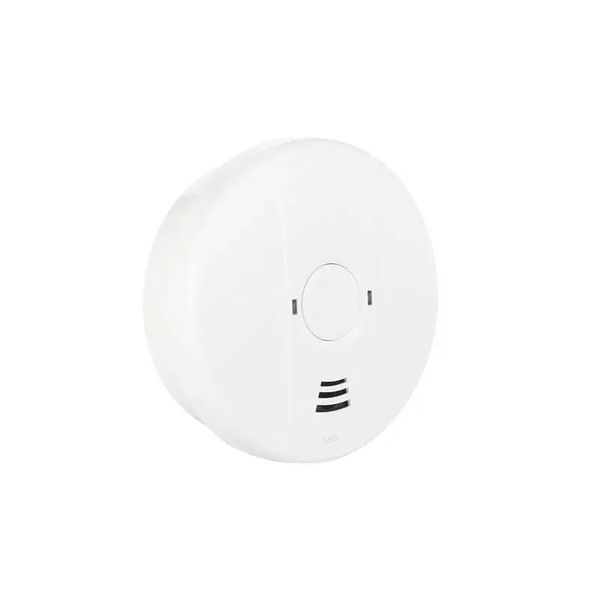

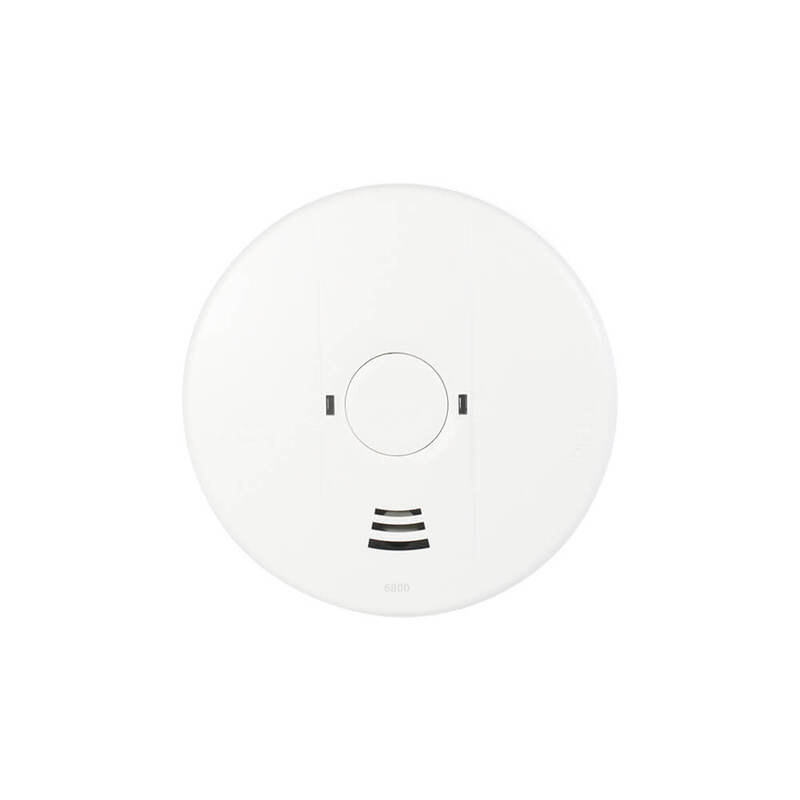

The PSA LIF6800 Smoke Alarm is designed with advanced photoelectric sensing technology, providing optimal performance and minimizing false alarms. This device has a 240V AC power supply and a 9V battery backup, ensuring continuous protection even during power outages. The LIF6800 is built to withstand Australia’s extreme environmental conditions, incorporating features like reduced insect mesh, moisture resistance, and an anti-static chamber to enhance its reliability further.

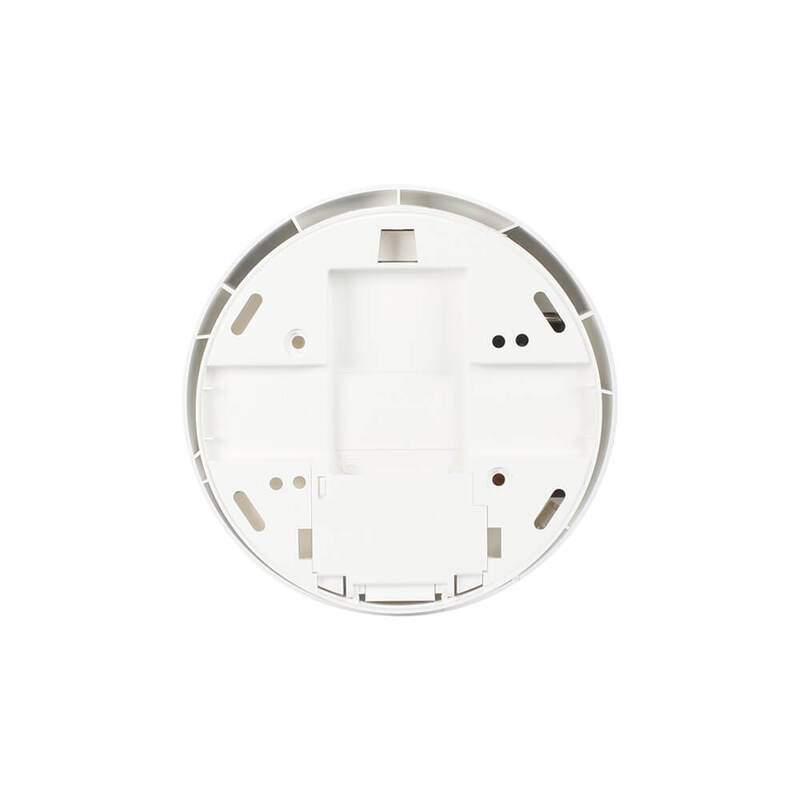

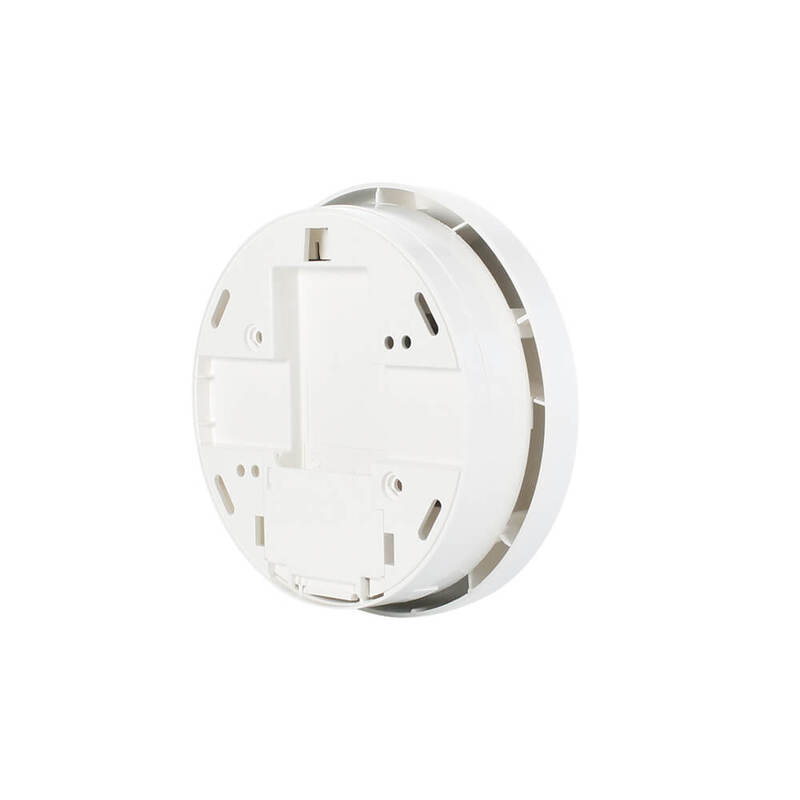

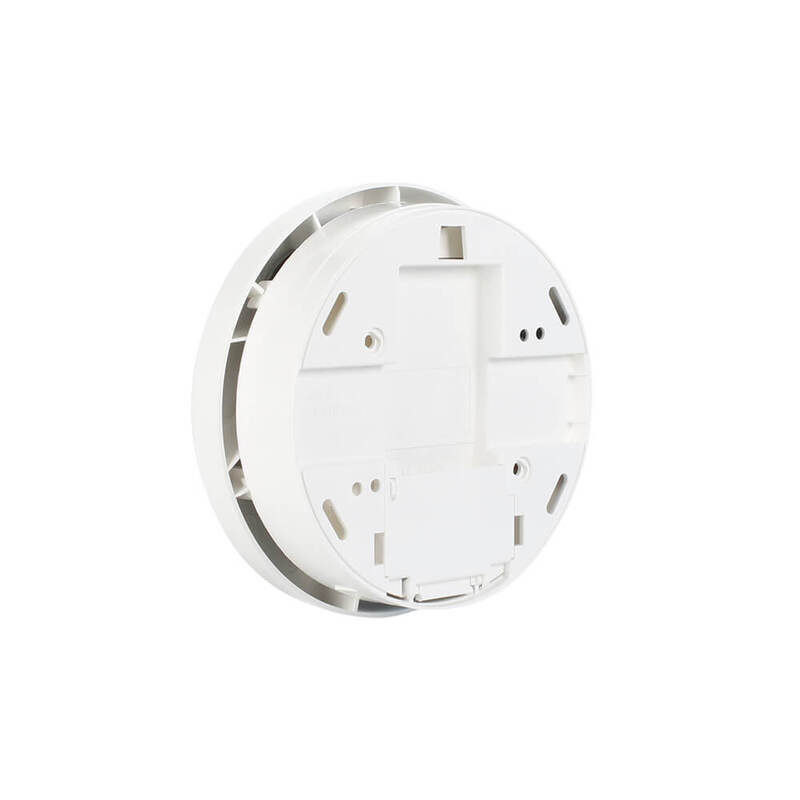

Tested and certified to Australian Standards, this smoke alarm has been rigorously trialed across multiple sites to guarantee dependable performance. With easy installation via the QUICK SLIDE base and the ability to interconnect up to 24 units, the LIF6800 offers both convenience and superior safety.
Q: Can the LIF6800 be interconnected with other alarms?
A: Yes, it can be interconnected with up to 24 units, either hard-wired or using a wireless base.
Q: How does the alarm handle false triggers from insects or dust?
A: To minimise false alarms, the advanced sensor includes a reduced insect mesh and an anti-static chamber.
Q: What is the alarm volume?
A: The alarm emits a loud 85dBA sound at 3 meters, ensuring it is easily heard.
Q: Is the LIF6800 tested and certified?
A: Yes, it is ActivFire Certified and complies with Australian Standards AS3786:2014.
Q: Why does my PSA product have the old logo and a 5-Year Warranty on the box?
A: PSA is in the process of rebranding its logo and packaging. Some boxes may still have the previous logo and mention a 5-Year Warranty.
Q: Is my PSA product still covered under the new warranty?
A: Yes, we can assure you that your PSA product comes with a 10-year Warranty, regardless of what is printed on the packaging.
Specification | Details |
---|---|
Sensor Type | Photoelectric Advance Sensor |
Supply Voltage | 240V AC 50Hz |
Power Consumption | 10mA max per alarm, 4mA (standby) |
Battery Back-up | 9V battery (Duracell Alkaline supplied) |
Interconnecting | Interconnectable up to 24 units |
Alarm Volume | 85dBA at 3 metres |
Alarm Signal Pattern | ISO8201 (T3 - Repeat 3 long beeps) |
Temperature Range | 0˚C - 40˚C |
Humidity Range | Up to 93% RH (non-condensing) |
Hush Function | Silences alarm for 9 minutes Red LED flashes every 10 seconds Dense smoke will override hush function |
Low Battery Hush | Silence low battery beeping for 8 hours |
Alarm Duration | Alarm will sound for as long as smoke is detected, then unit will automatically reset when smoke clears. |
Alarm Indication | Red LED flashes every second. When interconnected, only the red LED of initiating unit will flash. |
Alarm Memory | Red LED flashes 3 times every 40 seconds. Pressing Test button will sound a short beeping sequence. |
Chamber Monitoring | 3 beeps every 40 seconds. Indicates maintenance is required. |
Indicator LEDs | Green LED - Power indicator Red LED - Alarm status indicator, differentiated by frequency of flash. |
Wiring Terminal | 9V, Active, Switch, Neutral, Loop |

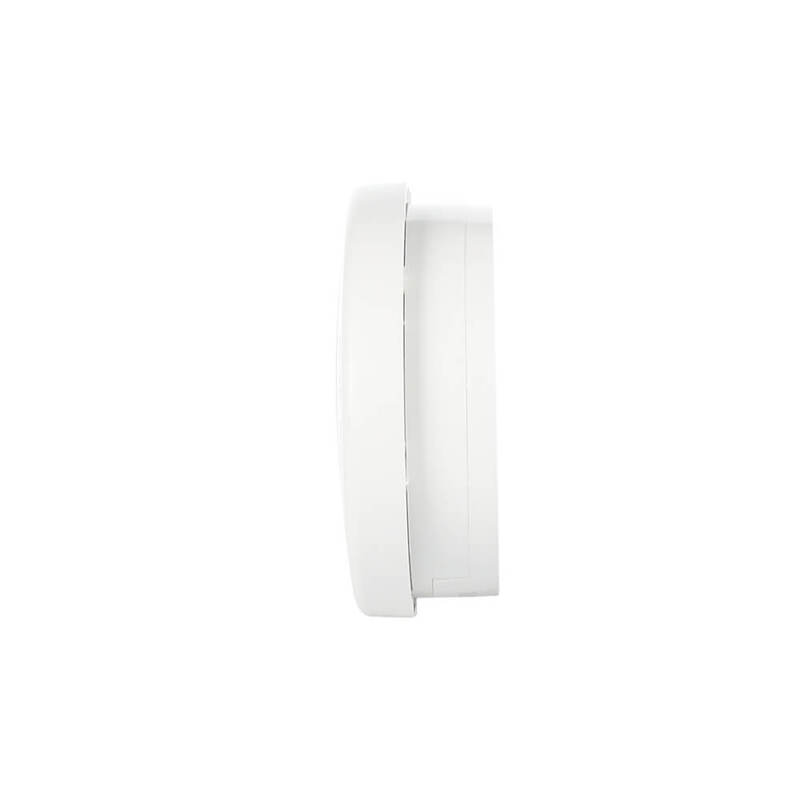

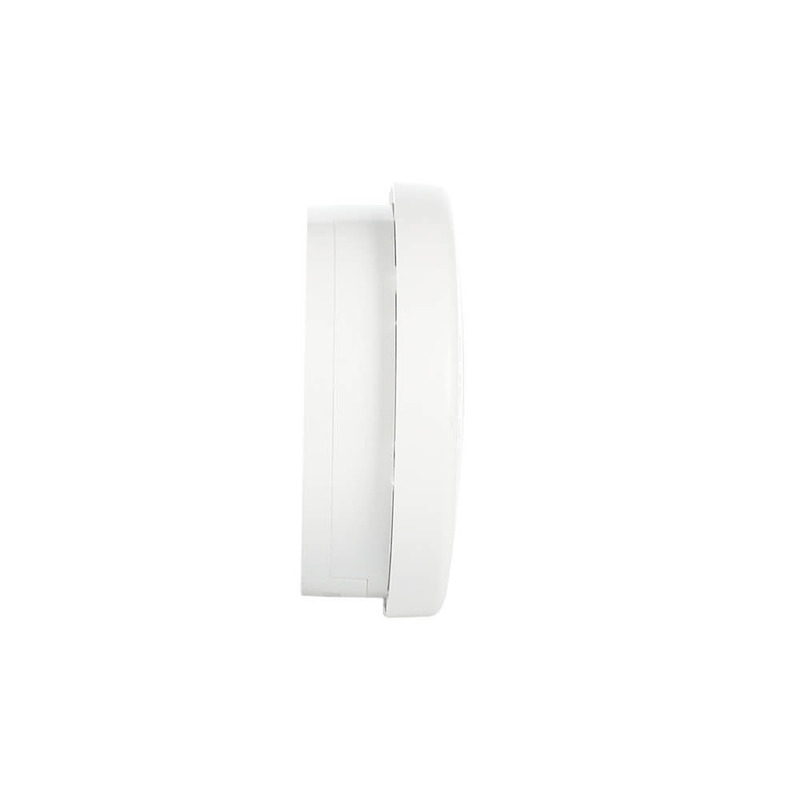

Dimensions | 130mm (diameter) x 45mm (depth) |
Approvals | ActivFire, SAI Global, RCM, AS3786:2014 |
Warranty starts from Invoice Date
Domestic Use: 10 Years
Commercial Use: 10 Years
Warranty Method: Return to Sparky Direct
