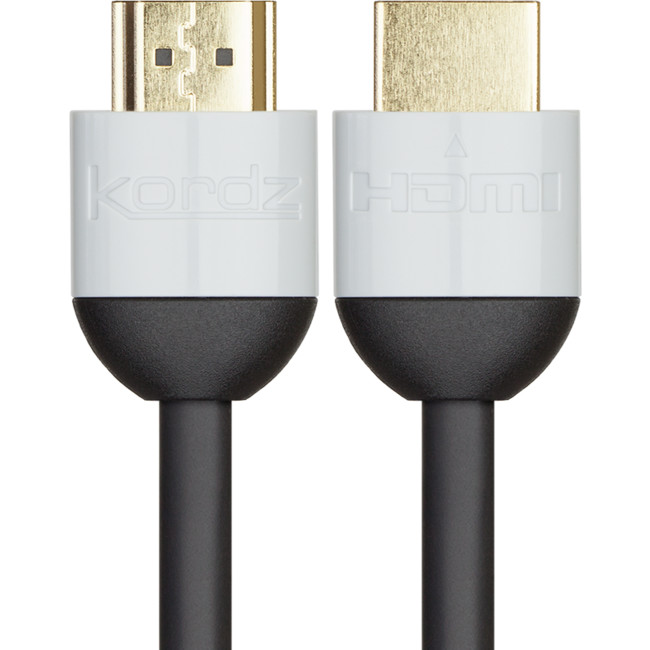

KORDZ PROHD0150 1.5M HDMI Pro Series Lead High Speed With Ethernet Slim, Flexible, Round
3x

KORDZ PROHD0150 1.5M HDMI Pro Series Lead High Speed With Ethernet Slim, Flexible, Round

Hurry! 1 items left!
Price
$33
Collect 99 Everyday Rewards points
Score 3x points on every order
Ends 11:59pm 03/01/2025. Exclusions & T&Cs apply
Log in to MyDeal to link your card
Shipping
Unable to calculate delivery for , please Contact Us Delivery unavailable to Change

24-48 hour dispatch
Quantity
Maximum item limit (1) has been reached.

PRO Integrator HDMI® Cable Series

_

Kordz PRO series is a general application HDMI cable engineered for the discerning integrator.

It employs materials and construction methodologieswhich deliver a balance of economy and dependable performance without compromising the most critical elements common to all Kordz HDMI cables; the retention of digital signal integrity.

  • Engineered and constructed to assure installation success and longevity,
  • High Speed with Ethernet in lengths to 5m (13ft) for 2160p (4K) support,
  • Standard with Ethernet with operational support to 1080p/60 up to 20m (65ft),
  • Induction soldered pin transitions for benchmark inter-terminal uniformity,
  • Economy ABS + PVC boot shell assembly with folded steel HDMI connector,
  • 100% of units tested on the production line for electrically continuity on all pins, with 1080p/60 application test,
  • UL CMG fire rated in lengths 5m+,
  • Limited lifetime warranty,
  • Licensed HDMI 2.0 Adopter company.

_

Technical Specifications
HDMI Compliance: ≤ 5.0m lengths
  • HDMI CTS Certification High Speed with Ethernet
  • Certified Data Rate 3.4Gbpsc, 10.2Gbps aggregate
  • Supported Data Rate > 3.4Gbpsc (4K UHD)
  • Supported HDMI Clock 27-340MHz
HDMI Compliance: 7.5m - 20m lengths
  • HDMI CTS Certification Standard with Ethernet
  • Certified Data Rate 0.7425Gbpsc, 2.25Gbps aggregate
  • Supported Data Rate > 1.485Gbpsc (1080p/60)
  • Supported HDMI Clock 27-148.5MHz
Construction
  • Primary Conductors Solid 30-24AWG OFC, length dependent
  • Insulation on TMDS HD-PE ≤1.7 relative permittivity
  • Insulation on 4C + HEAC Pairs Solid polyolefin ≤ 2.0 relative permittivity
  • Shielding on TMDS Pairs Al/Mylar, 25% overlap
  • Shielding Overall Al/Mylar + Al braid 85% coverage
  • Cable Jacket UL CMG fire rated PVC
  • HDMI Connector Shell Premium gauge folded steel, 1µ" 24K Gold plated
  • HDMI Connector Pins Solid OFC, 15µ" 24K Gold plated
  • Termination Contactless IR induction soldering
  • HDMI Backshell ABS shell assembly with PVC boot strainrelief
Mechanical
  • Cable Diameter 30AWG 5.7mm/0.22" | 26AWG 8.0mm/0.31" | 24AWG 8.6mm/0.34"
  • Mounting Length cable gauge dependent (see below)
  • Cable Bend Radius cable gauge dependent (see below)
  • Retention Force (nominal) 9.9N (1kg / 2.2lbs) +10/-5%

_

Physical Dimensions

_

Applications
  • General high reliability HDMI connectivity, 1080p/60 support to 20m | 65ft,
  • Residential,
  • Rack & AV Cupboard,
  • Corporate & Board Room,
  • Education.
Application Specifications
  • Video Format Support Data rate per channel / Aggregate, TMDS Bandwidth
  • All lengths
  • 480i/p, 576i/p ≤ 540Mbpsc/1.62Gbps, 270MHz
  • 720p/60, 1080i/60 742.5Mbpsc/2.22Gbps, 371.25MHz
  • 1080p/24-30, 8/10/12-bit YCbCr 4:2:0/4:2:2, 8-bit 4:4:4 742.5Mbpsc/2.22Gbps, 371.25MHz
  • 1080p/50-60, 8/10/12-bit YCbCr 4:2:0/4:2:2, 8-bit 4:4:4 148.5Mbpsc/4.455Gbps, 742.5MHz
  • Lengths to 5m only (High Speed)
  • 1080p/50-60, 10/12/16-bit YCbCr/RGB 4:4:4 max 2.97Gbpsc/8.91Gbps, 1.485GHz
  • 2160p (UHD/4K)
  • 2160p/23.98/24/29.97/30, 8-bit RGB/YCbCr 4:4:4, 10/12-bit 4:2:2 or 4:2:0 2.97Gbpsc/8.91Gbps, 1.485GHz
  • 2160p/50/59.94/60, 8-bit YCbCr 4:2:0 (HDMI 2.0) 2.97Gbpsc/8.91Gbps, 1.485GHz
  • HDMI 2.0 mode
  • 2160p*/50/59.94/60, 8-bit 4:4:4, 10/12/16-bit 4:2:2/4:4:4 max 5.94Gbpsc/17.82Gbps, 2.97GHz
  • VESA graphics Supports all as defined by HDMI specification
  • 3D Video Supports all as supported and/or mandated by HDMI specification
  • Color Spaces RGB, YCbCr, xvYCC, Adobe sRGB, sYCC601, ITU-BT.2020
  • Audio Formats Support PCM 2.0-7.1, DD/DTS HD 7.1, 3D Audio
  • 3D Audio (10.2 / 22.2 / 30.2ch Supported, device &video format dependent
  • HDMI Ethernet Channel Supported, system dependent
  • HDMI Audio Return Channel Supported, Single Mode &Common Mode

* HDMI 2.0 2160p modes encapsulate both 4,096 or 3,840 Hres variants & 4:3 anamorphic pixel ratio support

_

Models
Length Model AWG Max. Video
0.5m | 1'7" PRO-HD0050 30 2160p (UHD)
1.0m | 3'3" PRO-HD0100 30 2160p (UHD)
1.5m | 4'11" PRO-HD0150 30 2160p (UHD)
2.0m | 6'6" PRO-HD0200 30 2160p (UHD)
3.0m | 9'10" PRO-HD0300 30 2160p (UHD)
5.0m | 16'5" PRO-HD0500 26 2160p (UHD)
_
7.5m | 24'7" PRO-HD0750 26 1080p/60
10.0m | 32'9" PRO-HD1000 26 1080p/60
12.5m | 41'0" PRO-HD1250 24 1080p/60
15.0m | 49'2" PRO-HD1500 24 1080p/60
20.0m | 65'7" PRO-HD2000 24 1080p/60
