Our MFP72 is a multi-format presentation switcher with in-built video scaling, audio embedding / de-embedding, and advanced EDID management.
The MFP72 works in 2 modes, first as a 7 input dual output switcher (7:1x2), alternatively each output can work independently with Output 1 routing the 4x HDMI inputs only (4:1 up to 4K) and Output 2 switching all 7 video/audio inputs (7:1 up to 1080p).
With control of the switcher using the front-panel push buttons, IR remote control or RS-232 interface it is an ideal solution for commercial installations
Key Features:
Switcher can function in 2 modes:
Splitter mode - both HDMI outputs display the same image from any video input
Switcher mode - HDMI output 1 and 2 are independently controlled
HDMI output 1 can view only HDMI inputs 1-4 (up to resolutions of 4K)
HDMI output 2 can view all HDMI and analogue video inputs with associated audio (up to 1080p resolution)
Built-in video scaling, both up-scaling and down-scaling capabilities
Video inputs support all industry standard video resolutions including VGA-WUXGA and 480i-4K
Scaled video output resolutions: 720p, 1080p, 1280x1024, 1024x768, 1360x768, 1440x900, 1680x1050
Audio embedding - independent analogue L/R audio inputcan be embedded to HDMI outputs + Analogue L/R audio and Coaxial digital outputs concurrently (feature available for HDMI output 1 + 2 in 'Split mode', 'Switch mode' = HDMI output 2 only).
HDMI audio breakout to Analogue L/R audio and Coaxial digital outputs concurrently (linked to output 2 in 'Switch mode')
Volume control - Controls volume output of HDMI, Analogue L/R audio and Coaxial digital outputs
Supports 3D signal display
Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master audio transmission
Supplied with Blustream IR receiver and IR link cable
Control via front panel, IR and RS-232
3rd Party drivers available for all major home controlbrands
Advanced EDID management
HDCP compliant
Supplied with Blustream IR receiver and IR link cable
Control via front panel, IR and RS-232
3rd Party drivers available for all major home controlbrands
Advanced EDID management
HDCP compliant
Box Contents:
1x MFP72
1x 5V / 2A DC power supply

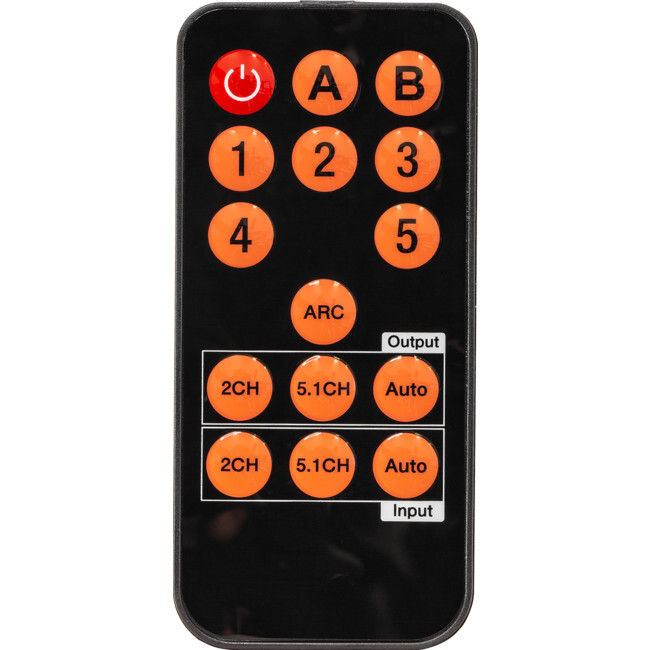

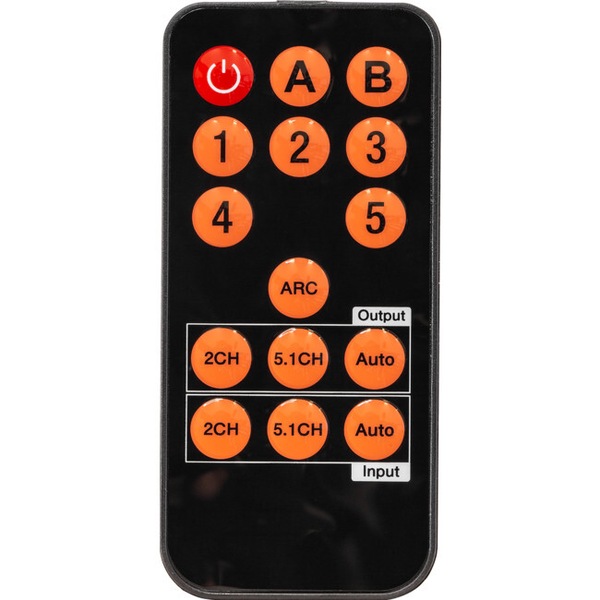

1x IR Remote control
1x IR receiver
1x IR control cable - 3.5mm-3.5mm cable (IRCAB)
1x Mounting kit
1x User manual
This item comes with a 12 months warranty
Please allow 2-8 business days for delivery.
