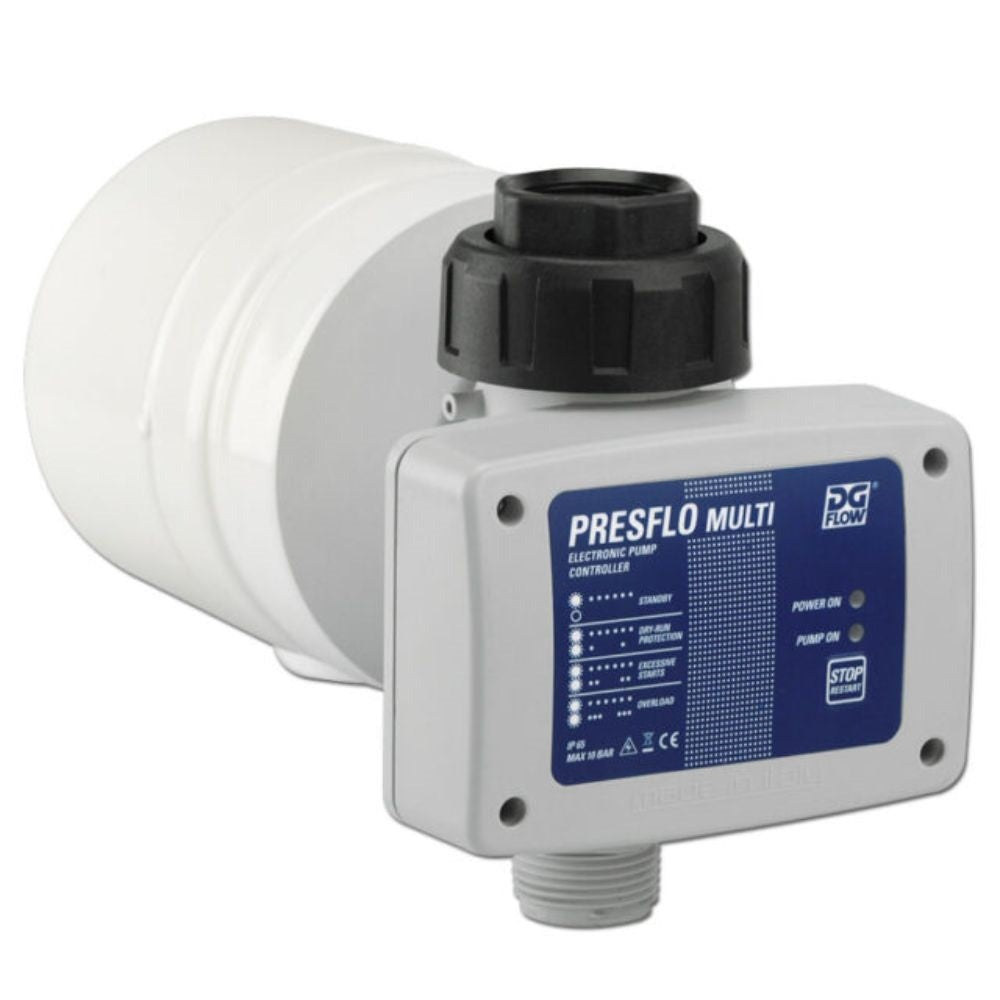

Presflo PFM16 Multi Adjustable Pressure Controller

Electronic pressure constant flow pump controller. The PresFlo Multi electronic pressure flow regulator starts and stops the pump according to demand. It substitutes traditional pressure switch/surge tank systems.

Specifications

• Max flow rate: 200 l/min
• Voltage: 230 Volt a.c.
• Frequency: 50 Hz
• Max Current: 16 Amp
• IP Protection: IP 65
• Working temperature: 0 65°C
• Connections: 1" BSP female 3 piece union
• Working/bursting pressure: 10 Bar / > 40 Bar
• Weight: 1.9kg
• AS4020 Approved

 Product Features:

• Substantial 3L built in surge tank with ability to set tank pressure as desired in order to guarantee optimum protection
• Gives draw off for small demands and less starts in leaking systems
• Sturdy and reliable pressure sensor connected to circuit board
• Simple to use screw adjustments makes configuration and running information easily available with start/stop button on the cover
• Selectable pump start up pressure between 1 and 5 bar (0.5 bar increments) via screw adjustments
• Adjustable overload protection via a simple screw
• Reduced dimensions and easily accessible components for maintenance or adjustments
• System protection against dry running with automatic restart and excessively frequent starting
• Tropicalised electronics
• Shut down flow rate of 2 litres per minute

 Applications

• Domestic water supply
• Lawn and garden irrigation
• Water transfer

Models:

• PFM16

The product image shown is for illustration purpose only
