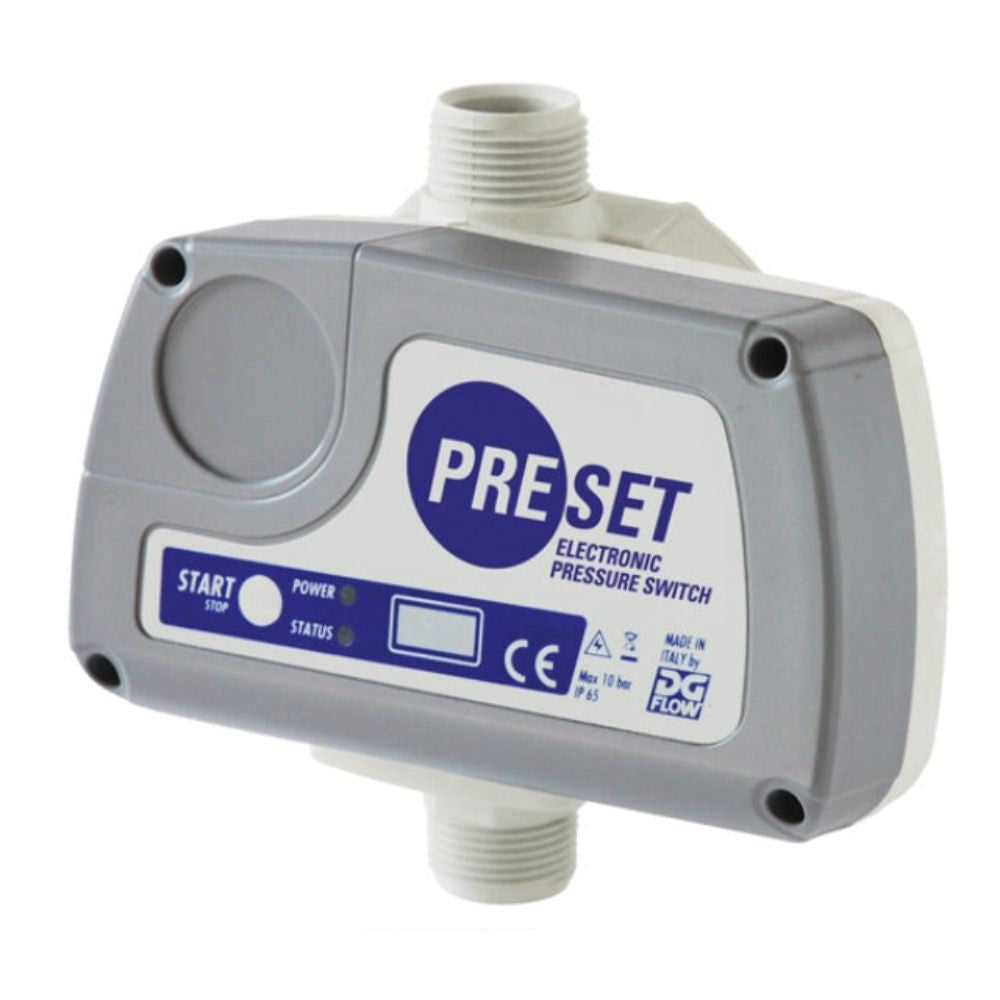

Preset PS16 Electronic Pressure Switch

Electronic adjustable pressure switch for the control and protection of pumps.

The Preset electronic pressure switch senses the pressure and flow; it automates the starting and stopping operations of the pump ensuring no pressure fluctuation.

 Specifications

• Max flow rate: 200 l/min
• Voltage supply: 230 Volt a.c.
• Frequency: 50 Hz
• Max Current: 16 Amp
• Enclosure: IP 65
• Working temperature: 0 65 °C
• Connections: 1" BSP
• Working/burst pressure: 10 bar / > 40 bar
• AS4020 Approved

 Product Features:

• System protection against dry running with automatic restart, over current, abnormal system running/too frequent starts and shutdown on pressure or no flow
• Electronic selectable pressure switch 0.8-9.0 bars ideal for control and protection of single phase pumps
• Equipped with easily accessible, integrated, precise pressure sensor and guarantees accurate and reliable parameter settings
• Resin bonded electronic board and built in check valve
• Digital backlit display for easy setting of working parameters
• Adjustable dry running intervention and reset time

 Applications

• Domestic pressure systems
• Domestic water systems
• Gardening irrigation

Models:

PS16

The product image shown is for illustration purpose only
