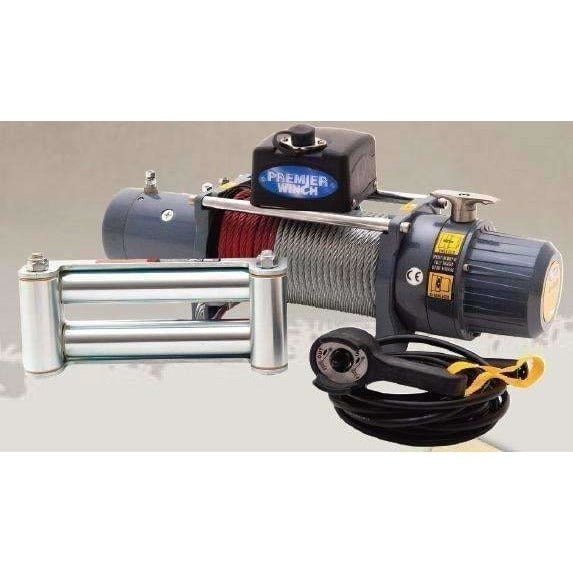

Premier Electric Winch/Hoist 9000lbs 12V

Premier Electric Winch/Hoist 9000lbs 12V

Hurry! 10 items left!

Price	$1650
	Collect 4950 Everyday Rewards points Score 3x points on every order Ends 11:59pm 03/12/2024. Exclusions & T&Cs apply Log in to MyDeal to link your card
Voltage	Please select an option
Shipping	$39.00 Australia-wide (per item)
	See delivery details

Quantity

Add to wishlist

Features

Heavy duty series wound motor gives high torque and fast line speed.
3 stage planetary gearbox delivers the most reliable and durable performance even under worst conditions.
Patented automatic cone brake holds full load easily. The greater the load on the wire rope, the greater amount of brake force is applied by the mechanism.
Rotating ring gear free spool designed to pull and turn for rapid wire rope payout.

Specifications

Line Pull	4,082 kg
Motor 12V	3,430 w
Motor 24V	1,940 w
Gear Train	3 stage planetary gears
Gear Ratio	156 : 1
Freespool	rotating ring gear
Brake	automatic, full load cone brake
Wire Rope Size	8.3 mm x 30 m
Wire Rope Type	galvanized aircraft A7 x19
Drum Size	63.5 mm x 229 mm
Mounting Bolt Pattern	254 mm x 114 mm

Line Pull and Rope Capacity

Layer of wire rope	Line Pull kg / lb	Total Rope on the Drum m/ft
1st Layer	4,082 / 9,000	6.1 / 20
2nd Layer	3,335 / 7,352	13.5 / 44.3
3rd Layer	2,820 / 6,217	22.3 / 73.2
4th Layer	2,442 / 5,383	30 / 100

Line Speed and Amp. Draw (1st layer of rope on the drum)

Line Pull kg/lb	Line Speed mpm/fpm	Amp. Draw 12V	Amp. Draw 24V
No Load	13.4 / 44	55	30
907 / 2,000	4.6 / 15	110	65
1,814 / 4,000	3.4 / 11	200	100
2,722 / 6,000	2.7 / 9	230	130
3,629 / 8,000	2.3 / 7.5	260	170
4,082 / 9,000	2.0 / 6.4	350	210

Standard Accessories

Detachable solenoid pack
Remote control
Wire rope with hook
Roller fairlead
1.8m (6') 4 gauge battery lead
Handsaver strap

Optional Accessories

Mounting channel
Snatch block
Winch accessory kit

Package

Winch Weight	33 kg
Gross Weight	47 kg
Box Dimension	630 x 195 x 370 mm

Warning

Winches are not to be used for the lifting or moving of persons.

Warranty

Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase. Wire ropes are not included under warranty.
