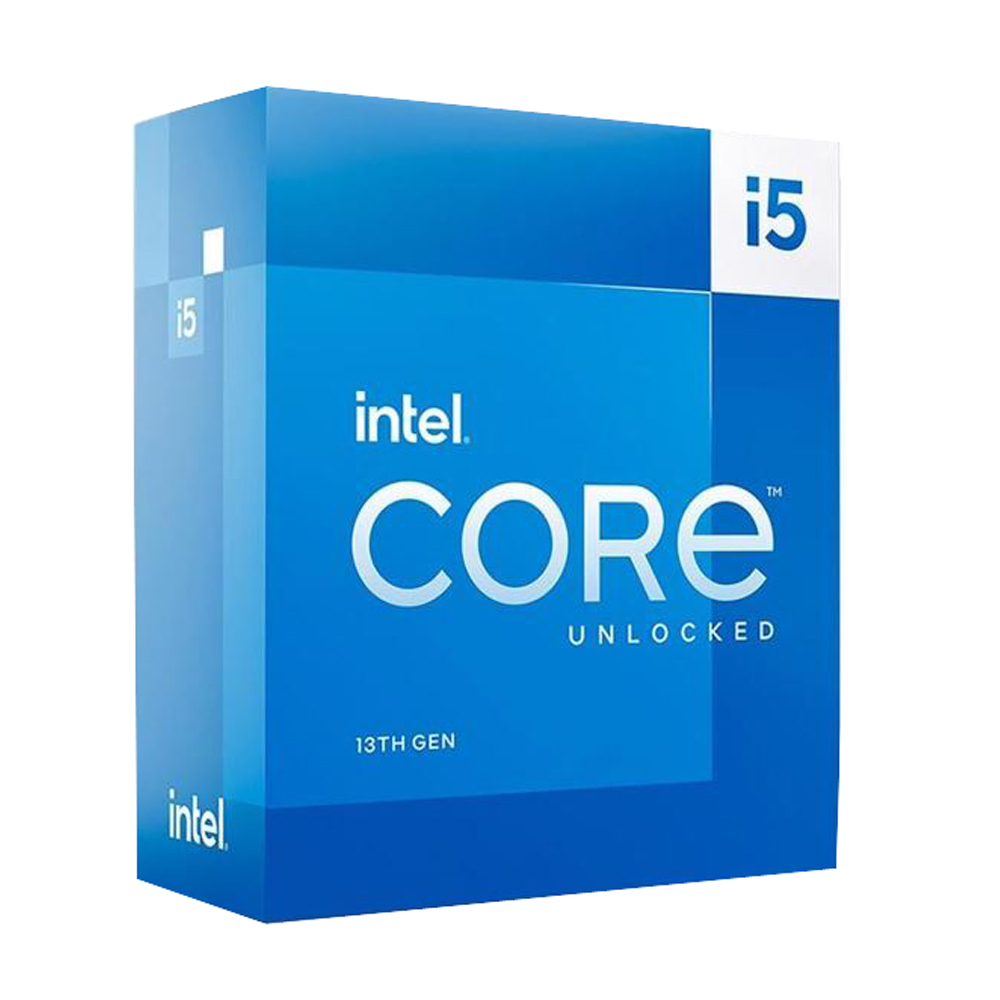

Intel Core i5 13600KF CPU

Intel Core i5 13600KF CPU 3.9GHz (5.1GHz Turbo) 13th Gen LGA1700 14-Cores 20-Threads 24MB 125W Graphic Card Required Retail Box Raptor Lake no Fan

• Product Collection 13th Generation Intel® Core™ i5 Processors
• Code Name Products formerly Raptor Lake
• Vertical Segment Desktop
• Lithography Intel 7
• Use Conditions PC/Client/Tablet

CPU Specifications

• Total Cores 14
• # of Performance-cores 6
• # of Efficient-cores 8
• Total Threads 20
• Max Turbo Frequency 5.10 GHz
• Performance-core Max Turbo Frequency 5.10 GHz
• Efficient-core Max Turbo Frequency 3.90 GHz
• Performance-core Base Frequency 3.50 GHz
• Efficient-core Base Frequency 2.60 GHz
• Cache 24 MB Intel® Smart Cache
• Total L2 Cache 20 MB
• Processor Base Power 125 W
• Maximum Turbo Power 181 W

Supplemental Information

• Embedded Options Available No

Memory Specifications

• Max Memory Size (dependent on memory type) 128 GB
• Memory Types Up to DDR5 5600 MT/s Up to DDR4 3200 MT/s
• Max # of Memory Channels 2
• Max Memory Bandwidth 89.6 GB/s

Expansion Options

• Direct Media Interface (DMI) Revision 4
• Max # of DMI Lanes 8
• Scalability 1S Only
• PCI Express Revision 5.0 and 4.0
• PCI Express Configurations ‡ Up to 1x16+4 | 2x8+4
• Max # of PCI Express Lanes 20

Advanced Technologies

• Intel® Gaussian & Neural Accelerator 3
• Intel® Thread Director Yes
• Intel® Deep Learning Boost (Intel® DL Boost) Yes
• Intel® Speed Shift Technology Yes
• Intel® Turbo Boost Max Technology 3.0 ‡ No
• Intel® Turbo Boost Technology ‡ 2
• Intel® Hyper-Threading Technology ‡ Yes
• Intel® 64 ‡ Yes
• Instruction Set 64-bit
