Portable ECG 7 Step Ruler Plastic Measuring Card Tool for ECG/EKG Interpretation

Portable ECG 7 Step Ruler Plastic Measuring Card Tool for ECG/EKG Interpretation

Price	From $21.95
	Collect 21 Everyday Rewards points Log in to MyDeal to link your card
Quantity	Please select an option
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Take 10% Off Purchases Over $100

Exclusive to Sensual Sale products only. Expires 11.59pm 27/02/2025. Excludes Shipping. Everyday Rewards points will be collected on your total purchase less any discounts. T&C's apply.

Copy code FVLLR

Quantity

Add to wishlist

Description:

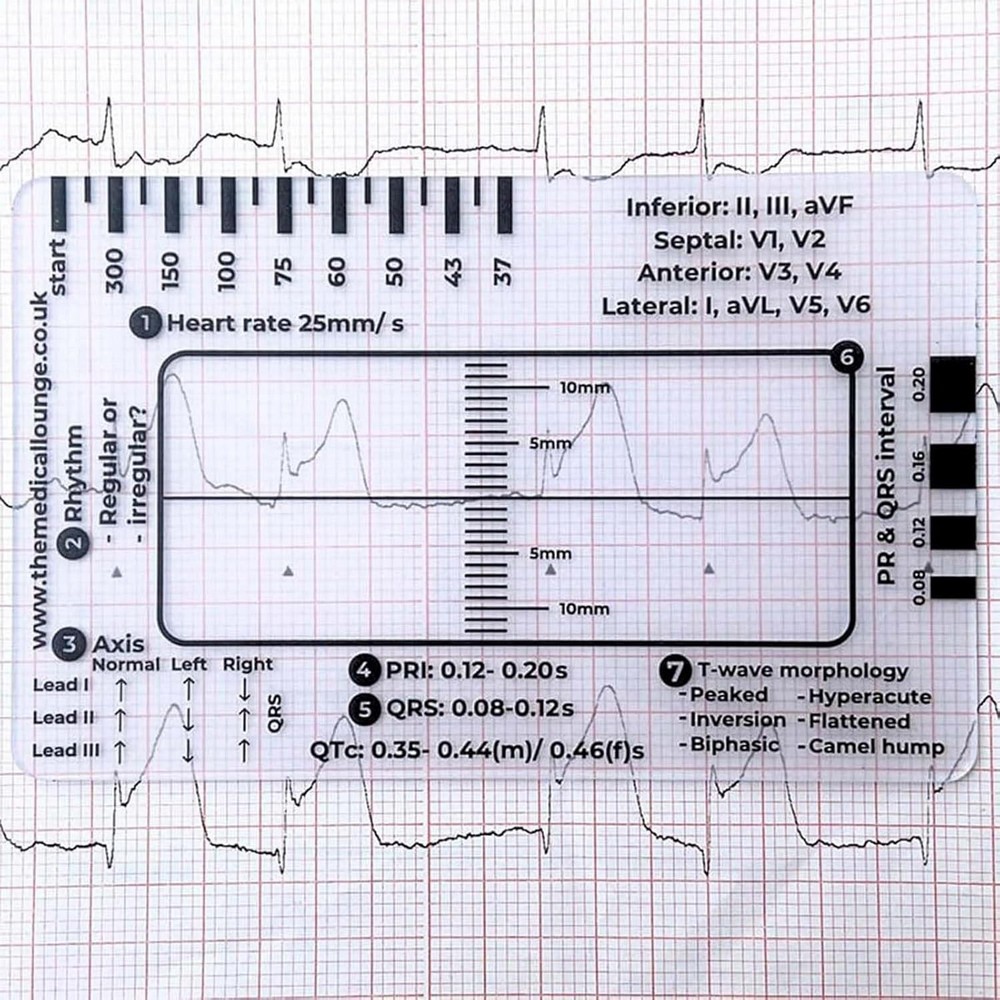

Designed with the scientific 7-step ECG interpretation method, it provides clear, intuitive reference points for those hard to remember key points with a step-by-step follow-through process

Features:

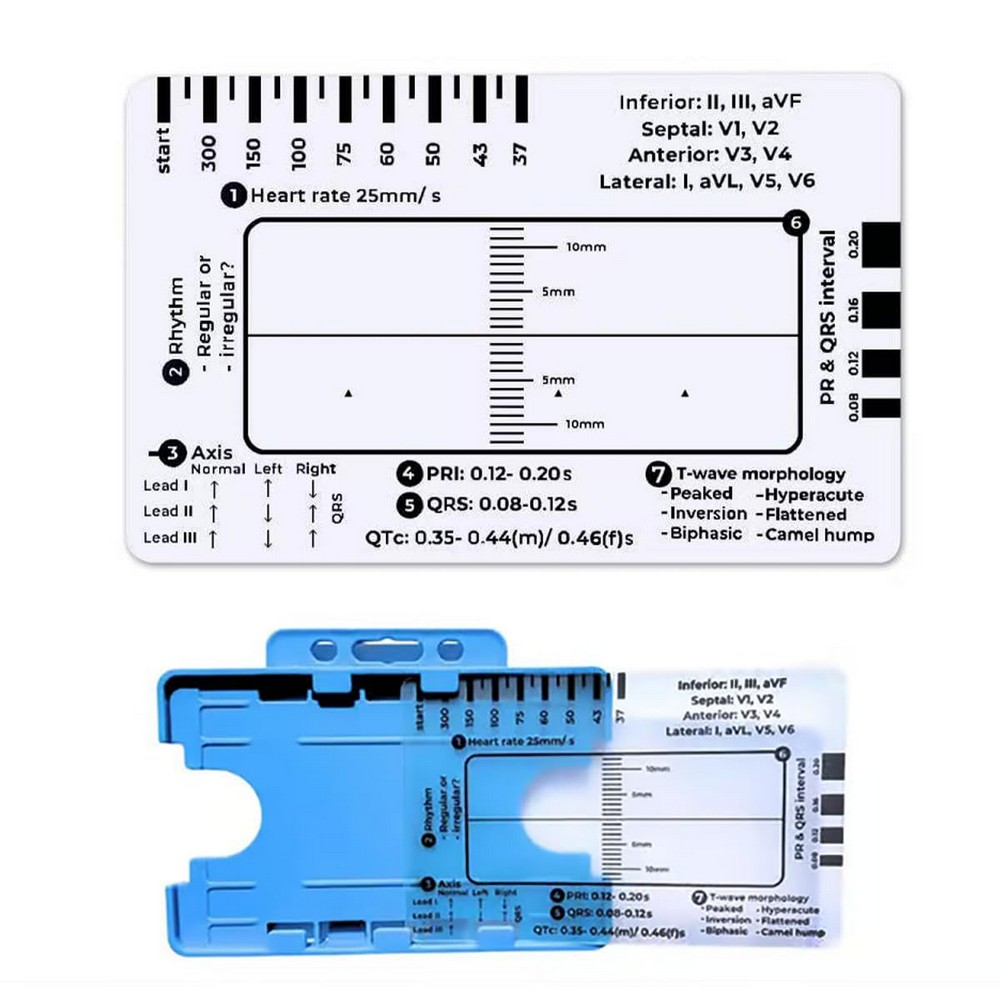

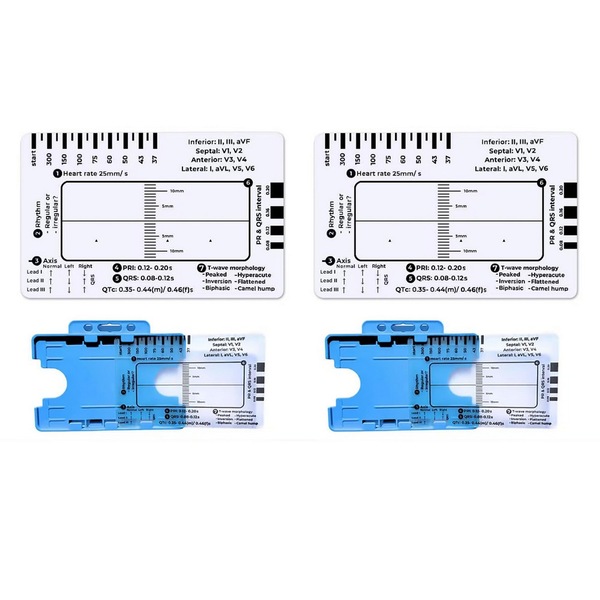

Crafted in an ID-sized, transparent format
Fits seamlessly into badge holders, pockets, or toolkits
Perfect for on-the-go use in workplaces, classrooms, or clinical settings
Resistant to wear, waterproof, and easy to clean
Maintaining its clarity and functionality over long-term use in demanding environments
Allows you to measure the heart rate, and see if the PR interval, QRS complex, QT intervals are out of the normal range and ST elevation/ depression, The EKG ruler will be an excellent addition to your ID badge
Suitable not only for healthcare professionals but also for anyone wanting to master ECG interpretation.

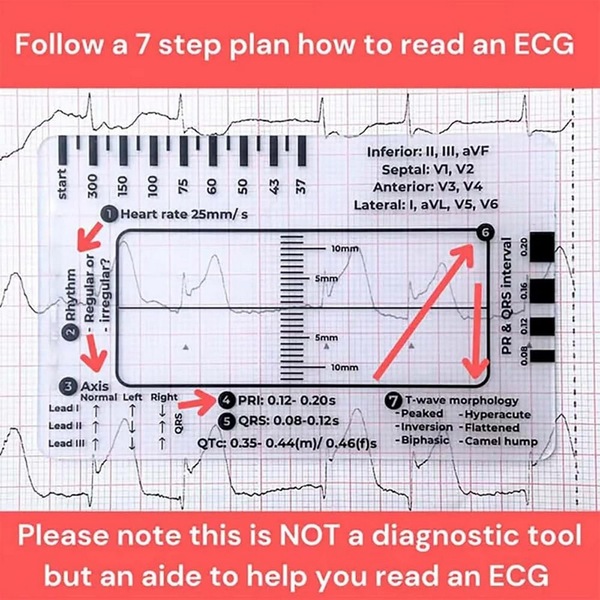

With a follow Follow a 7 Step Plan with reference:

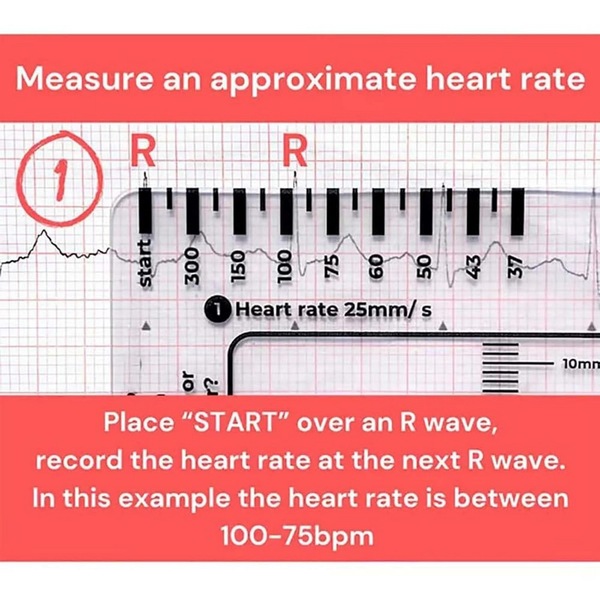

1.Heart rate- This will provide a quick but approximate heart rate.

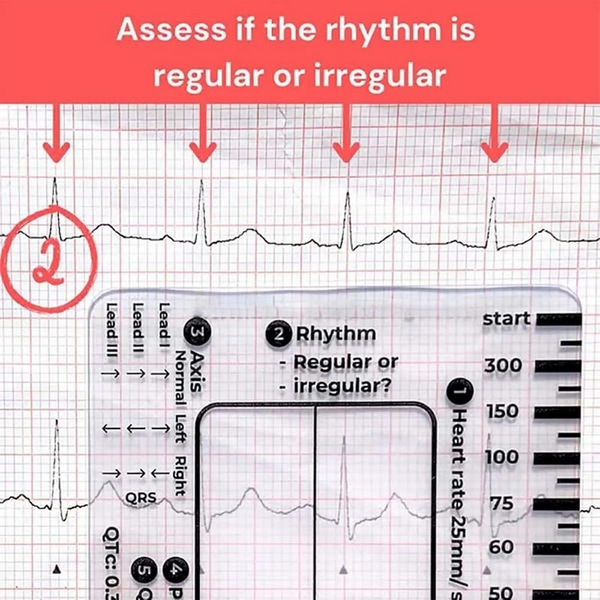

2.Rhythm- Assess whether the heart rate is regular or irregular

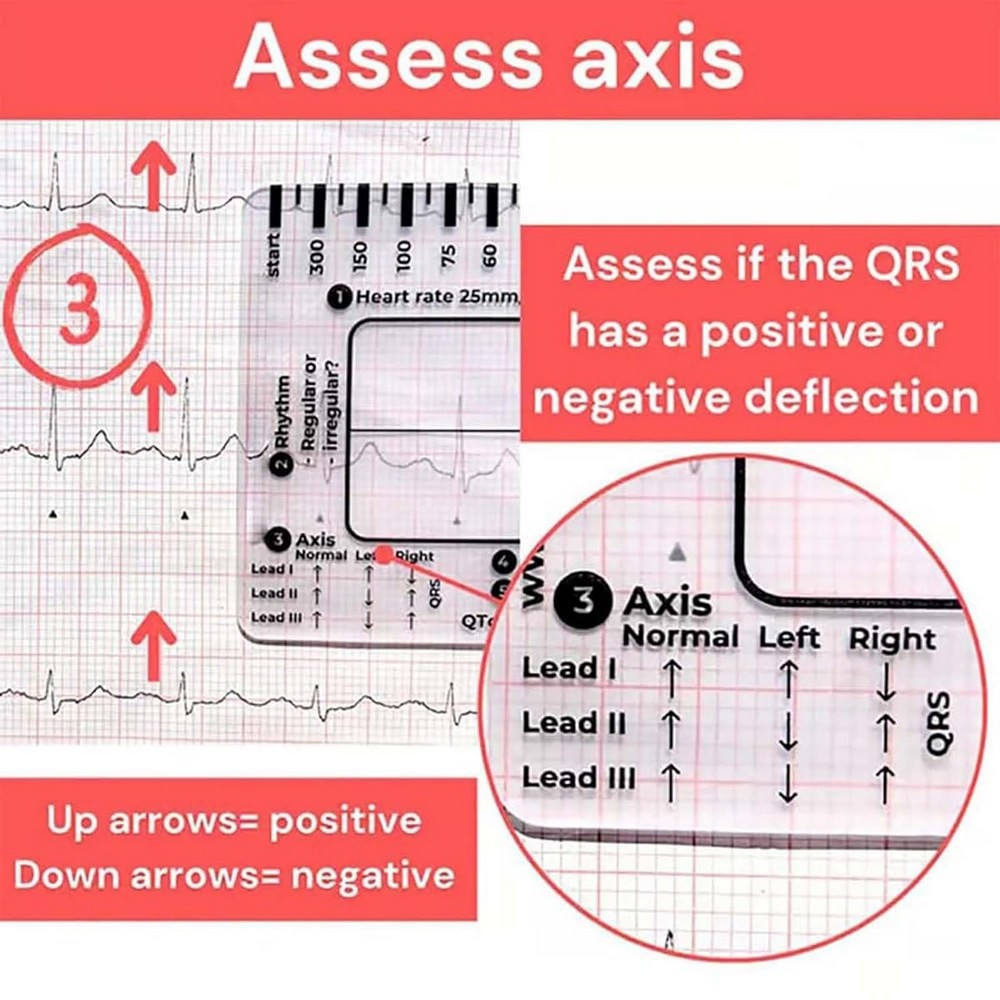

3.Axis- A quick reference for normal, left or right axis deviation. The arrows pointing up indicate a positive deflection & arrows pointing down indicate a negative deflection.

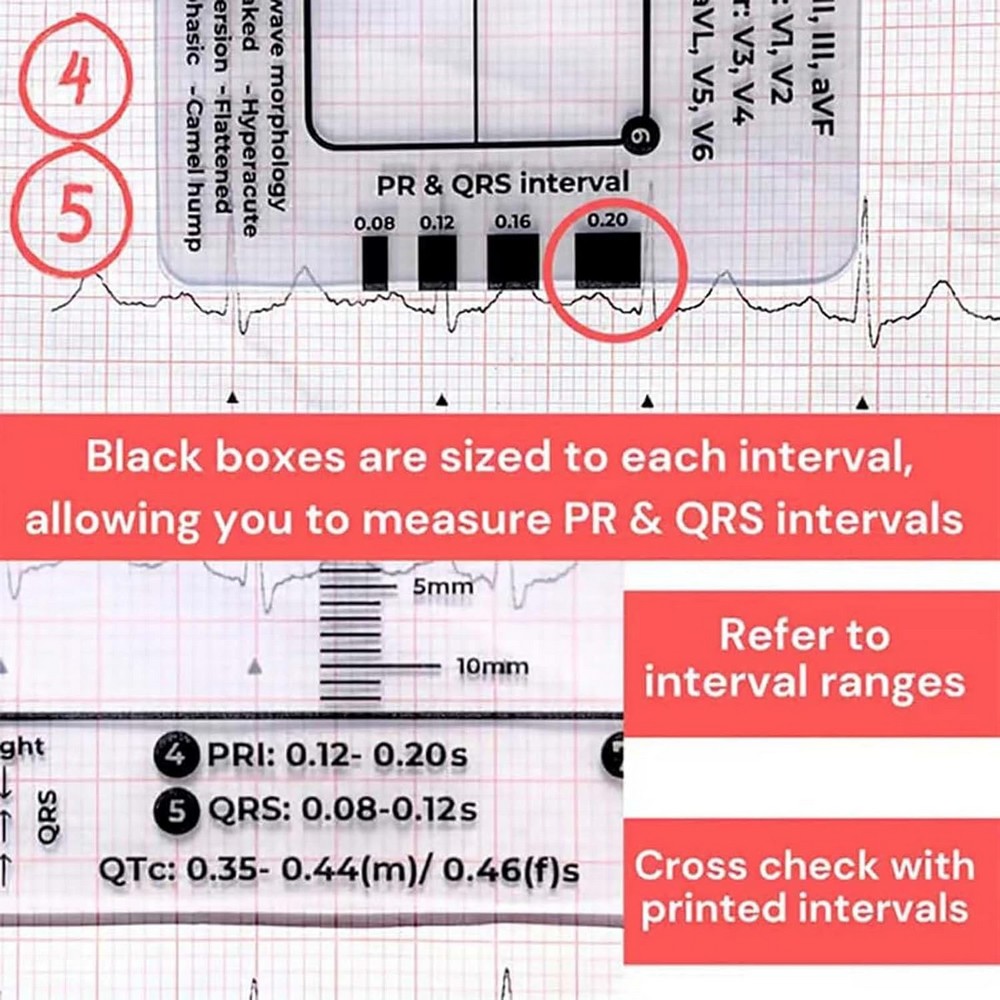

4.PR interval- This gives you a reference of the PRI range in milliseconds. Also to the right side, are blocks you can measure the PRI.
5.QRS interval- As above this gives you the range of the QRS & QTc in milliseconds and again you can measure the QRS interval with the blocks.

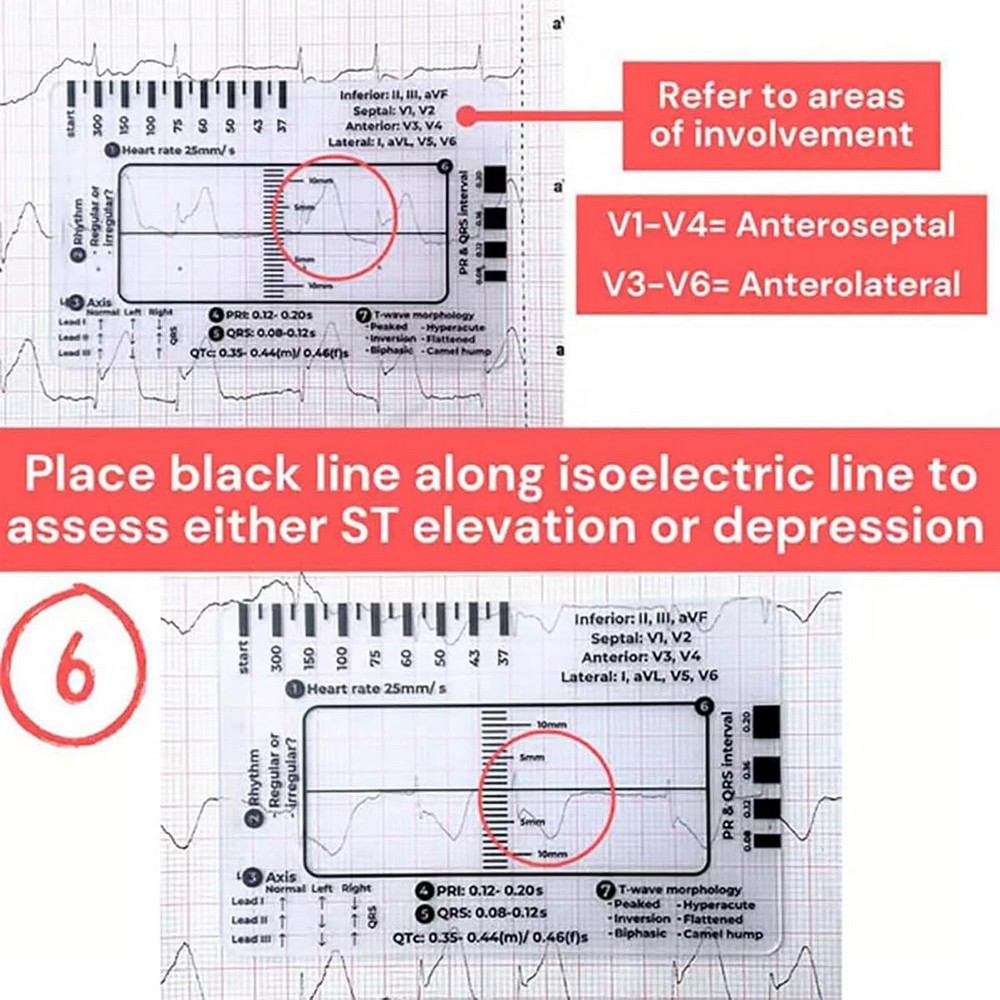

6.ST elevation/ depression- Place the straight back line along the isoelectric line to assess if there is either ST elevation or depression also there is a ruler so you can measure the degree of either in millimetres.

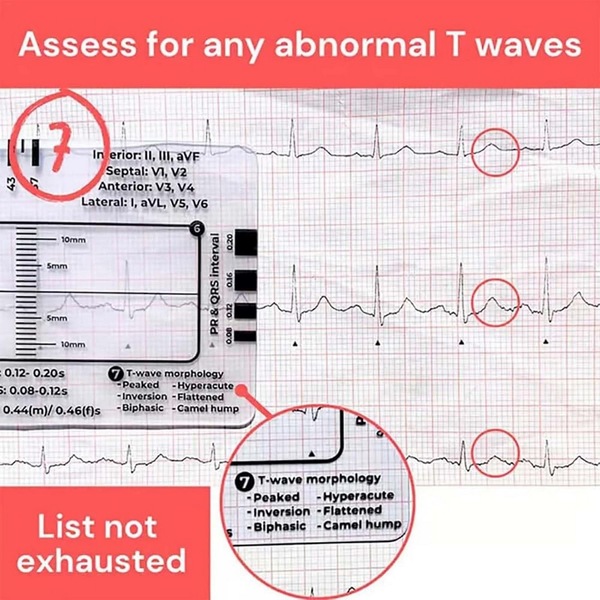

7.T wave- Lastly, a quick reference for potential T wave abnormalities. Plus top right references the leads view of the heart which comes in handy when identifying the area of a myocardial infarction. Remember: V1-V4= Anteroseptal MI & V3-V6= Anterolateral MI

Specification:

Material:Plastic
Size:Transparent
Color:8.6x5.4cm

Package Content:

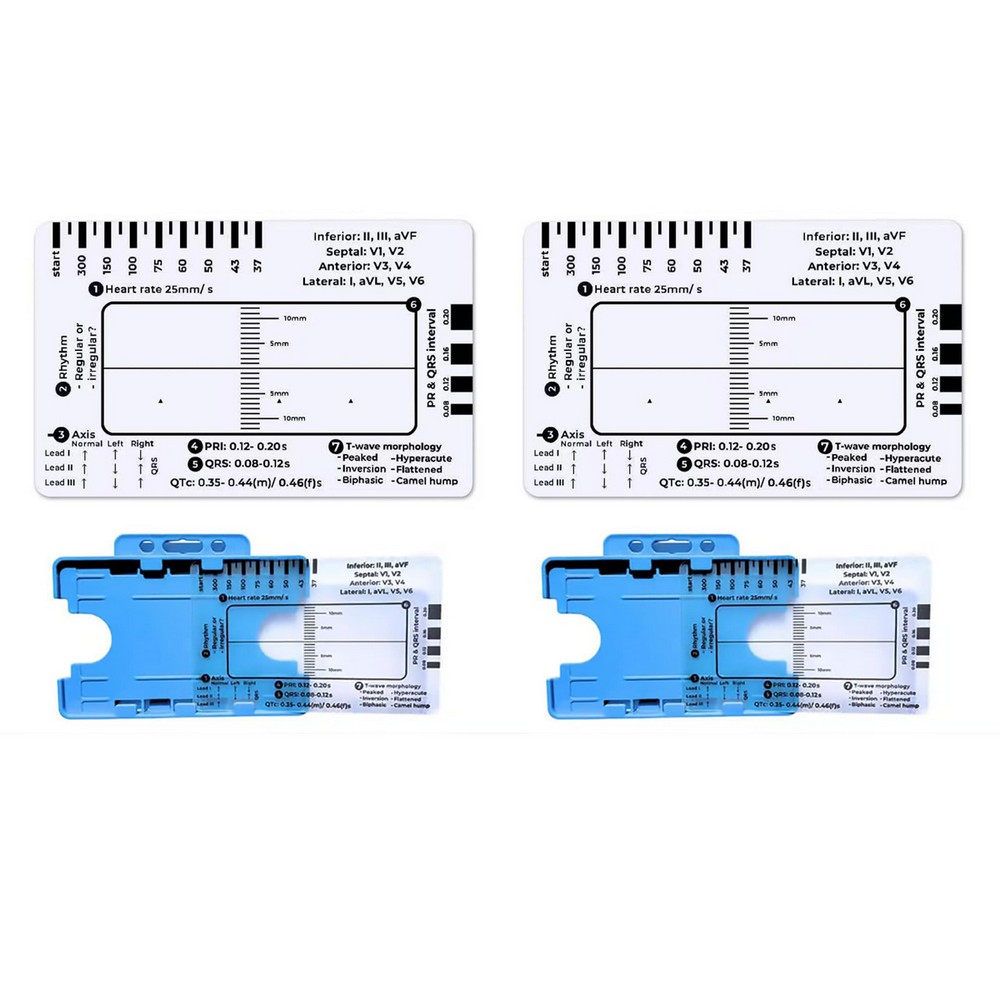

1 x ECG 7 Step Ruler

Note:

Due to manual measurement, there might be a tolerance in the product size.
Due to the lighting effects and shooting angles, the color of the item and that shown in the picture might have a nuance.
