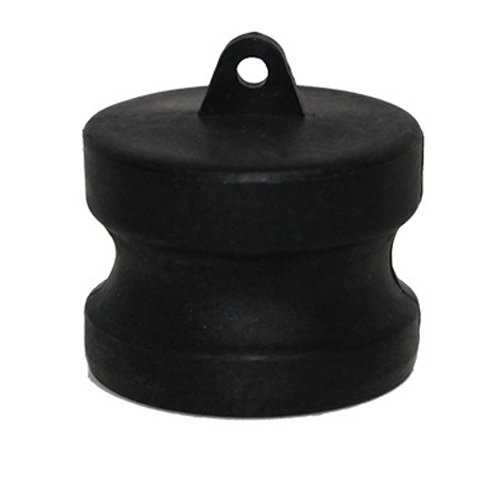

Polypropylene Camlock Coupling (Type DP) - Dust Plug

Polypropylene Camlock Coupling (Type DP) - Dust Plug

Hurry! 6 items left!
Price
From $0.76
Size
Shipping
Unable to calculate delivery for , please Contact Us Delivery unavailable to Change

24-48 hour dispatch
Quantity
Maximum item limit (6) has been reached.


Polypropylene Camlock

  • The coupling is connected by simply opening the coupler arms and inserting the adapter into the coupler. The cam arms are then closed under normal hand pressure to complete the joint.
  • Reliable quick connect coupling for use on hose, pipe, tubing and tanks conveying a wide variety of liquids, dry bulk materials, oil, powder, cosmetics, foodstuffs, offshore, pumps, adhesives, dyes, pharmaceuticals, pellets, some hydrocarbon, chemicals and many more. Note: Not to be used for compressed air and steam application.
  • Standard Buna-N seal installed
  • Polypropylene material
CAMLOCK COUPLINGS
TYPE DESCRIPTION
Type A Male Adaptor - Female BSP
Type B Female Coupler - Male BSP
Type C Female Coupler - Hose Tail
Type D Female Coupler - Female BSP
Type DC Dust Cap Female End Coupler
Type DP Dust Plug Male End Adaptor
Type E Male Adaptor - Hose Tail
Type F Male Adaptor - Male BSP

Type DP Camlock - Dust Plug - Polypropylene
Part Number Coupling Size (In) Coupling Size (mm) A (mm) B (mm) E (mm) WEIGHT (kg)
6203.08.20 3/4" 19 21 38 24 0.02
6203.08.25 1" 25 24 50 30 0.03
6203.08.40 1. 1/2" 38 36 59 41 0.06
6203.08.50 2" 51 45 64 43 0.09
6203.08.80 3" 76 73 70 52 0.14
6203.08.94 4" 102 90 67 54 0.29

Estimated Delivery Time Frame: 2-7 business days
