Polypropylene Camlock
CAMLOCK COUPLINGS | |
TYPE | DESCRIPTION |
Type A | Male Adaptor - Female BSP |
Type B | Female Coupler - Male BSP |
Type C | Female Coupler - Hose Tail |
Type D | Female Coupler - Female BSP |
Type DC | Dust Cap Female End Coupler |
Type DP | Dust Plug Male End Adaptor |
Type E | Male Adaptor - Hose Tail |
Type F | Male Adaptor - Male BSP |

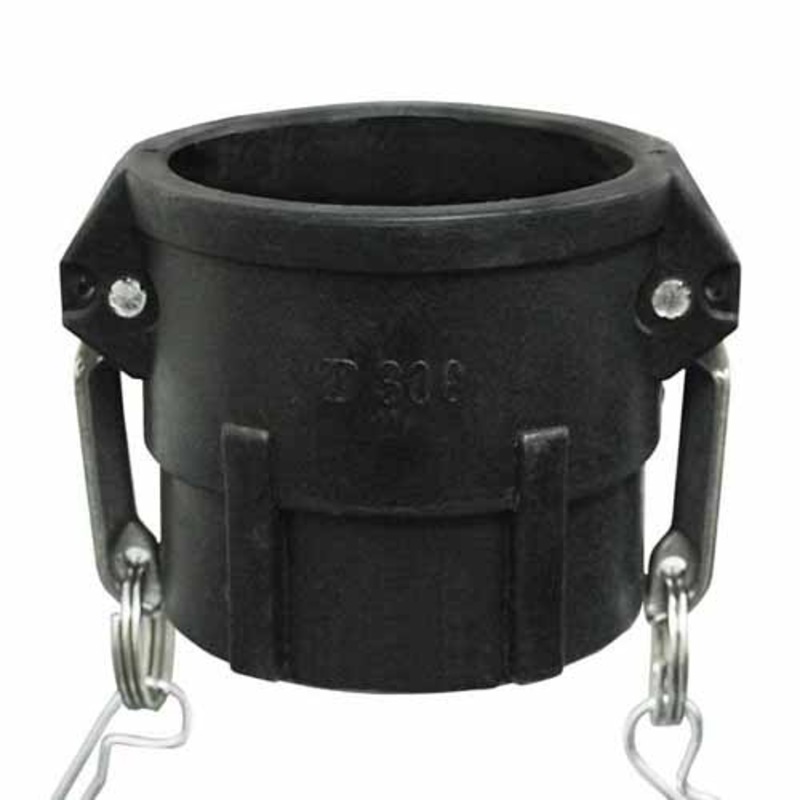

Type D Camlock - Female Coupler?x Female BSP - Polypropylene | |||||||||
Part Number | Coupling Size (in) | Coupling Size (mm) | A (mm) | B (mm) | C (mm) | E (mm) | G (mm) | Thread Type | WEIGHT (kg) |
CL-PP020D | 3/4 | 19 | 19 | 53 | 32 | 32 | 53 | BSPP | 0.08 |
CL-PP025D | 1 | 25 | 26 | 60 | 40 | 40 | 60 | BSPP | 0.12 |
CL-PP032D | 1 1/4 | 32 | 30 | 71 | 48 | 48 | 78 | BSPP | 0.17 |
CL-PP040D | 1 1/2 | 38 | 39 | 73 | 56 | 49 | 85 | BSPP | 0.22 |
CL-PP050D | 2 | 51 | 50 | 76 | 67 | 54 | 96 | BSPP | 0.23 |
CL-PP075D | 3 | 76 | 72 | 89 | 96 | 60 | 127 | BSPP | 0.38 |
CL-PP100D | 4 | 102 | BSPP |
Estimated Delivery Time Frame: 2-7 business days
