Polypropylene Camlock
CAMLOCK COUPLINGS | |
TYPE | DESCRIPTION |
Type A | Male Adaptor - Female BSP |
Type B | Female Coupler - Male BSP |
Type C | Female Coupler - Hose Tail |
Type D | Female Coupler - Female BSP |
Type DC | Dust Cap Female End Coupler |
Type DP | Dust Plug Male End Adaptor |
Type E | Male Adaptor - Hose Tail |
Type F | Male Adaptor - Male BSP |

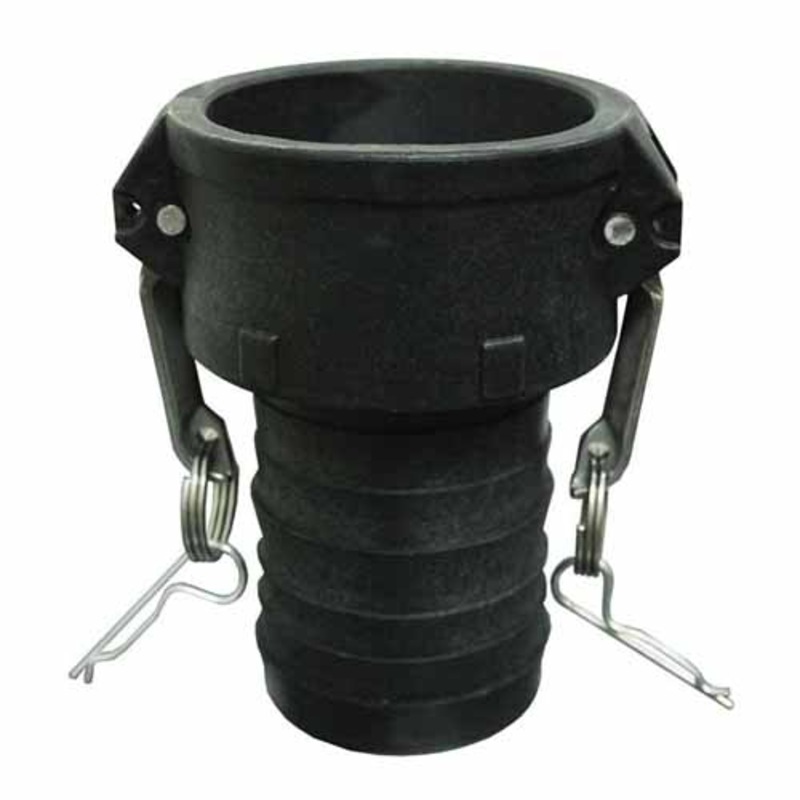

Type C Camlock - Female Coupler x Hosebarb - Polypropylene | ||||||||
Part Number | Coupling Size (In) | Coupling Size (mm) | A (mm) | B (mm) | D (mm) | E (mm) | G (mm) | WEIGHT (kg) |
6203.03.20 | 3/4" | 19 | 14 | 84 | 20 | 32 | 53 | 0.08 |
6203.03.25 | 1" | 25 | 20 | 98 | 26 | 40 | 60 | 0.12 |
6203.03.40 | 1. 1/2" | 38 | 31 | 121 | 39 | 49 | 85 | 0.21 |
6203.03.50 | 2" | 51 | 43 | 138 | 52 | 54 | 96 | 0.27 |
6203.03.80 | 3" | 76 | 67 | 160 | 77 | 60 | 127 | 0.44 |
6203.03.94 | 4" | 102 | 82 | 170 | 98 | 58 | 160 | 0.82 |
