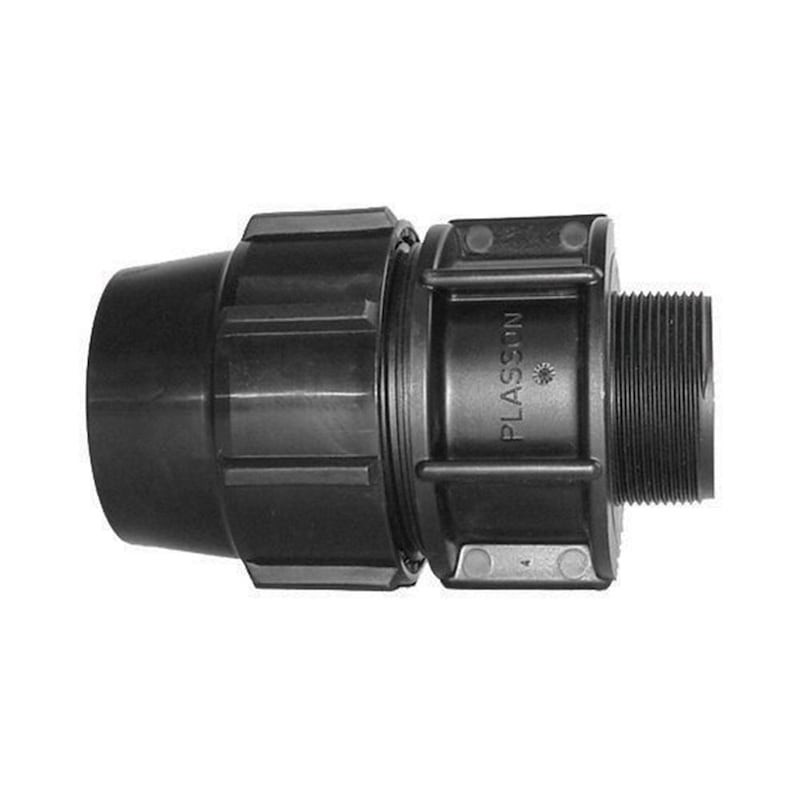

Plasson Poly Metric Compression Male Adaptor

Plasson Poly Metric Compression Male Adaptor

Limited Stock!

Price	From $6.05
	Collect 18 Everyday Rewards points Score 3x points on every order Ends 11:59pm 03/01/2025. Exclusions & T&Cs apply Log in to MyDeal to link your card
Size	Please select an option
Shipping	Unable to calculate delivery for , please Contact Us Delivery unavailable to Change
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

PLASSON - Metric x Male BSP Adaptor

Tough Australian conditions means you need a name you can rely on for your pipe fittings. Plasson fittings have proved to be the most reliable connections systems for poly pipelines in Australian conditions for over 40 years. Plasson compression fittings are designed for connecting all forms of PE Pipe. Common applications include underground and surface mining, plumbing, irrigations, civil constructions, gas installation, industrial fluid transfer and waste water systems.

FEATURES

Body and nut material: Polypropylene, high-grade copolymer
Split ring material: Polyacetal
Seal material: NBR
Pressure rating water: PN16
Maximum temperature of use for fittings and valves is the same as that for polyethylene pipe and they are not intended for use in hot water applications. They will withstand sub-zero temperatures.
Resistance to chemical

PLASSON - Metric x MALE BSP ADAPTOR
SKU	d (mm)	G (mm)	H (mm)	E (mm)	I (mm)	I2 (mm)	Weight (kg)
7001.03.1515	16	1/2"	79	39	59	16	0.034
7001.03.1520	16	3/4"	79	39	59	17	0.035
7001.03.2015	20	1/2"	92	48	71	17	0.058
7001.03.2020	20	3/4"	92	48	71	18	0.059
7001.03.2025	20	1"	86	48	52	20	0.060
7001.03.2515	25	1/2"	94	54	72	17	0.068
7001.03.2520	25	3/4"	95	54	72	18	0.073
7001.03.2525	25	1"	97	54	72	20	0.079
7001.03.3220	32	3/4"	106	64	83	18	0.113
7001.03.3225	32	1"	107	64	83	20	0.122
7001.03.3232	32	1. 1/4"	110	64	83	22	0.114
7001.03.3240	32	1. 1/2"	110	64	83	22	0.127
7001.03.4025	40	1"	118	82	91	20	0.184
7001.03.4032	40	1. 1/4"	117	82	90	22	0.185
7001.03.4040	40	1. 1/2"	117	82	90	22	0.185
7001.03.4050	40	2"	123	82	91	26	0.208
7001.03.5025	50	1"	133	96	106	20	0.266
7001.03.5032	50	1. 1/4"	136	96	106	22	0.266
7001.03.5040	50	1. 1/2"	136	96	109	22	0.276
7001.03.5050	50	2"	140	96	109	26	0.283
7001.03.6332	63	1. 1/4"	154	113	123	22	0.443
7001.03.6540	63	1. 1/2"	154	113	123	22	0.451
7001.03.6550	63	2"	167	113	123	26	0.461
7001.03.6565	63	2. 1/2"	160	113	123	29	0.459
7001.03.8050	75	2"	188	132	150	26	0.710
7001.03.8065	75	2. 1/2"	192	132	150	29	0.752
7001.03.8080	75	3"	195	132	150	33	0.718
7001.03.9050	90	2"	227	152	170	26	1.123
7001.03.9065	90	2. 1/2"	229	152	170	26	1.142
7001.03.9080	90	3"	232	152	170	33	1.133
7001.03.9094	90	4"	239	152
