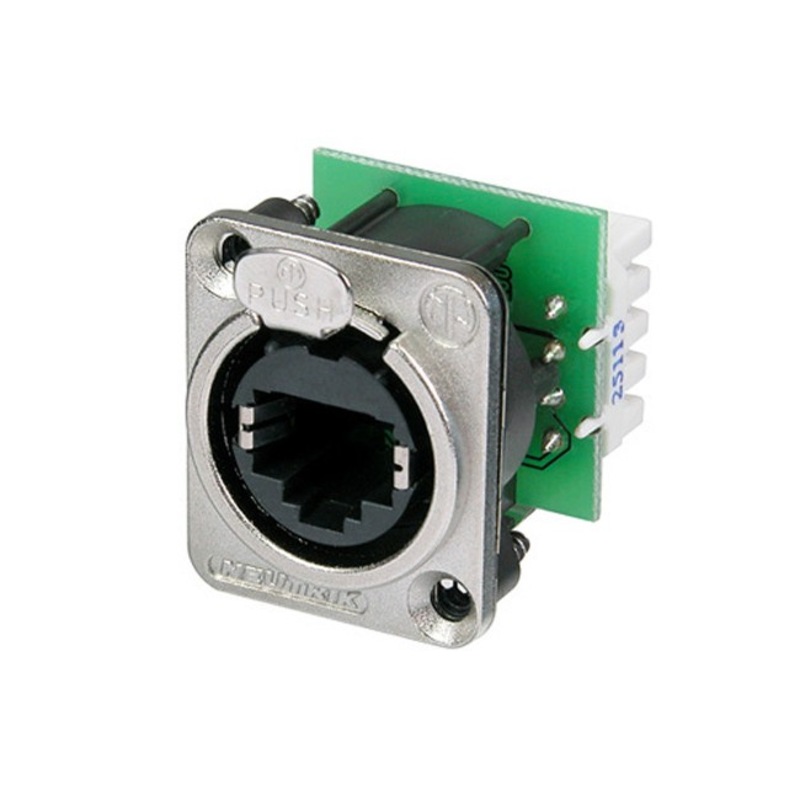

Panel mount receptacle with IDC punch down terminals, D-sized metal flange with latch lock,max. panel thickness 4mm. Mounting screws included.
The etherCON Series is a ruggadized and lockable RJ45 connector system, optimized for proaudio, video and lightning network applications. The chassis connectors areshaped to fit into standardized panels out of the entertainment industry.
The D-Series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market.
Â
Technical Information
| Products | |
| Title | NE8FDV-YK |
| Connection Type | RJ45 |
| Electrical | |
Contact resistance | < 10 mO (inner) |
Dielectric strength | 1 kVdc |
| Frequencyrange | 1 - 100 MHz |
Insulation resistance | > 0.5 GO |
Rated current per contact | 1,5 A |
Rated voltage | 50 V |
Transmission performance | CAT 5e |
Standard compliance | TIA/EIA 586B, IEC11801 |
| Mechanical | |
Insertion force | = 20 N |
Withdrawal force | = 20 N |
Lifetime | > 1000 mating cycles |
Panel thickness | max. 4 mm 0.16' |
| Wiresize | 0.14 - 0.5 mm2 |
| Wiresize | 26 - 20 AWG |
| Wiring | IDC punch down terminals |
Locking device | latch lock |
Mounting direction | front & rear |
Chassis shape | D |
| Material | |
Contact plating | 0.2 µm Au over Ni plating |
| Contacts | Bronze (CuSn8) |
| Insert | PBTP 15 % GR |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell Plating | Nickel |
Strain relief | CuZn35Pb2, Tin plated |
| Environmental | |
Flammability | UL 94 V-0 |
Temperature range | -30 °C to 80 °C |
