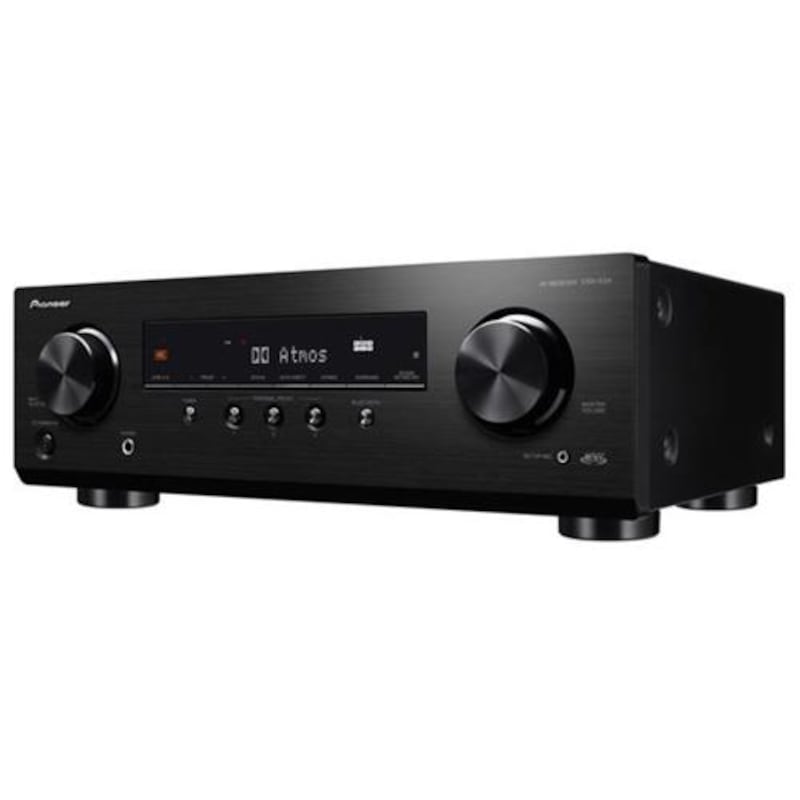

Pioneer VSX-534 5.2 Channel AV Receiver Amplifier. 150 Watts per Channel. 2x Subwoofer Preout, 5xHDMI(4xIn,1x Out), 3x Audio RCA In, 2x Digital In, 1x Audio RCA Out. Weight 8kg

The VSX-534
A top-notch receiver with surround sound capabilities, without spending a fortune.
The VSX-534 5.2 Channel AV Receiver features Dolby Atmos® immersive sound at a price you will not find anywhere else. The VSX-534 comes in a user-friendly design with a 12% slimmer size than the previous model for easy installation. A 4K indicator and Personal Preset and Bluetooth® Input buttons on the front panel make it easy to setup. Immerse yourself in enveloping sound with Dolby Atmos and DTS: X® audio formats. Even without height or surround speakers, you can still enjoy virtual 3D surround effects with Dolby Atmos Height Virtualizer and DTS Virtual: X. The AV receiver is compatible with Ultra HD, HDR10, HLG, and Dolby Vision™ with support for HDCP 2.2, so you can fully appreciate premium 4K content.
All encompassing sound
Reproduce object-oriented sound with Dolby Atmos in smooth, curving or realistic, three-dimensional, overhead movements. And with Height Virtualizer, Dolby Atmos creates virtual height effects from traditional speaker layouts without employing additional surround or height speakers.

4k HDR ready
Enjoy support for HDR (High Dynamic Range) video including HDR10, HLG, Dolby Vision, and BT.2020. Additionally 4:4:4 color space is also supported. Six HDMI inputs, ARC-ready MAIN OUT, and SUB OUT pass 4K/60p and HDR video from player to compatible TV and projector; and all terminals are HDCP 2.2 compliant.

Smooth & easy Bluetooth
Whatever audio is playing on your phone, tablet, or PC app can be streamed to the receiver with Bluetooth wireless technology. Once the receiver has paired with and remembered your device, it will start playback automatically whenever it detects an incoming Bluetooth audio stream.

Customized to you
MCACC auto room tuning uses a custom microphone to automatically compensate for differences in speaker size, level and distance, and equalizes response, so you get the even sound you’re supposed to.

POWER
Amplifier Design
Direct Energy
Power Output: Watts per Channel (20Hz-20kHz,.08%THD@8ohm 2ch Driven)
80 W/ch
Estimated Power Consumption/Network Standby off
445 W/0.1 W
Channels
5.2
Power Output: Watts per Channel (1kHz,10%THD@6ohm 1ch Driven)
150 W/ch
DECODERS & FORMATS
Digital Core DSP Engine
Digital Quad-Core 32-bit DSP (Cirrus Logic)
Audio Processing
-
Music File Playback
192 kHz/24-bit ALAC, AIFF, FLAC, WAV Via USB
Dolby Atmos
Yes
Dolby TrueHD
Yes
DTS:X
Yes
DTS Neural:X
Yes
HDMI SACD Transfer
2 Channel
Audio DACs
384 kHz/32-bit D/A Conversion with AK4438 (AKM)
iPod Digital Audio
-
High-Definition Copy Protection (HDCP)
2.2
Dolby Atmos Height Virtualizer
Yes (* Available with future firmware update)
Dolby Digital Plus
Yes
DTS-HD Master Audio
Yes
DTS Virtual:X
Yes
SOUNDFIELD CALIBRATION
Phase Control
Yes
MCACC Memory
1
EQ Bands
9-band
X-Curve
-
Polarity Check
-
MCACC
Yes
Standing Wave Control
-
Symmetric EQ
Yes
Distance Adjustment
0.1 feet
Auto Subwoofer Crossover
Yes
LISTENING MODES
Auto Surround
Yes
Advanced Surround
10+1
Front Stage Surround Advance
Yes
Virtual Speakers
-
Stream Direct
Yes (Direct, Pure Direct)
Wide Surround
-
Headphone Surround
-
AUDIO FEATURES
Dialog Enhancement
Yes
Sound Retriever AIR
-
Tone Control
Multi
Speaker A/B
-
Advanced Sound Retriever
Yes
Digital Noise Reduction
-
Sound Delay (Lip Sync)
Yes
Bi-Amp
Yes
VIDEO PROCESSING
4K Ultra HD Pass-Through
Yes (HDR10, HLG and BT.2020 Wide Color Gamut Signal Pass-through)
3-D Ready
Yes
HDMI Standby Through
Yes with Input Switch / Last Memory
HDMI 36-bit Deep Color
Yes
Video Processor
-
Component Video Scaler
-
Pure Cinema I/P Converter
-
3D Noise Reduction
-
4K Ultra HD Video Scaler
Ultra HD Upscaling
Audio Return Channel
Yes
Dolby Vision Compatible
Yes
HDMI x.v. Color
Yes
Video Converter to HDMI
Yes
Composite Video Scaler
-
Advanced Video Adjustment
-
Super Resolution
Yes
CONNECTIVITY
HDMI Input / Output
4 In (Rear) / 1 Out
Wi-Fi Built-In
-
Wireless Adapter Port
-
Component Video Input / Output
-
iPhone / iPod / USB Memory Input
-
Ethernet Input
-
Digital Audio Inputs / Output
2 In (Optical 1, Coaxial 1)
Headphone Output
Yes
AM/FM Presets
AM/FM Tuner 40 Presets
MHL 2
-
Bluetooth Built-In
Yes (Version: 4.2 + LE, Profile: A2DP 1.2/AVRCP 1.3, Codec: SBC/AAC)
Bluetooth Adapter Port
-
Composite A/V Input / Output
-
USB Terminal
Rear
Analog Audio Inputs / Output
2 in / 0 out
Pre-Amp Output
0.2 ch.
Front A/V Inputs
USB / 3.5mm stereo mini jack
INSTALLATION
On-Screen Display
User-Friendly GUI with System Setup Menu
Multi-Room and Source Output
-
Multi-Zone On-Screen Display
-
Function Rename
-
Sleep Timer
Yes
Auto Power Down
Yes
IR Serial Remote In/Out
-
FL Dimmer
Yes
Remote
Yes
Versatile Speaker Configuration
FRONT, CENTER, SURROUND/HEIGHT
CONSTRUCTION
Front Panel
Brushed
Speaker Terminals
2 large + 3 clip
DIMENSIONS
W x H x D (inches) Wi-Fi Antenna's Up
-
Weight
17.6
W x H x D (inches)
17-1/8 x 5-13/16 x 12-5/8
- MPN: VSX534B

GTIN: 4573211154207
