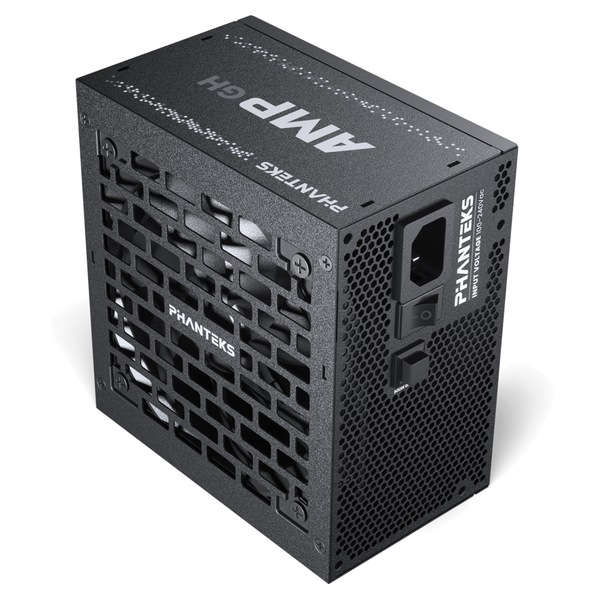

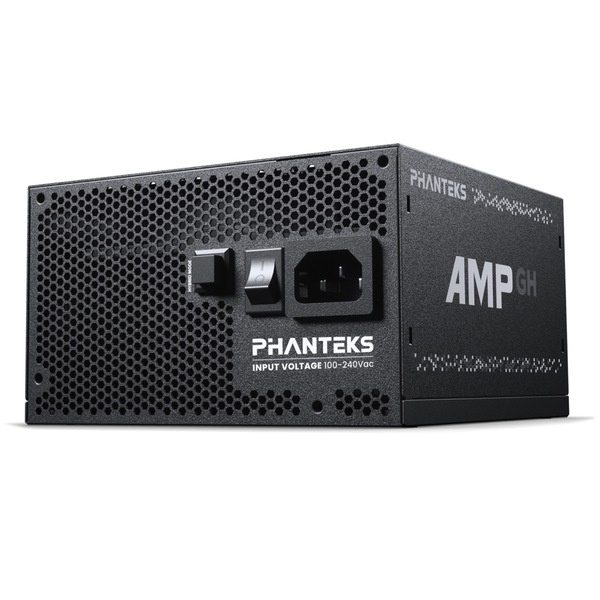

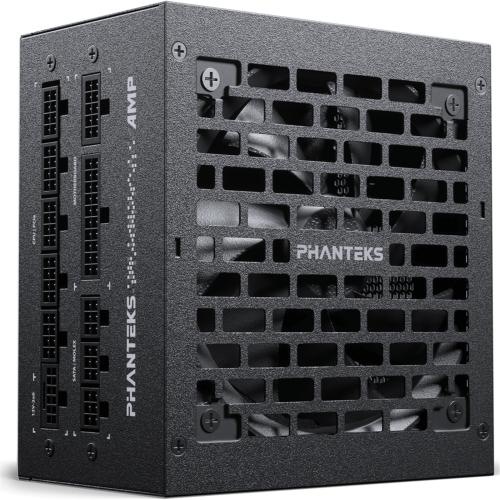

Phanteks AMP 750W ATX 3.0 80Plus Gold - Black - Full Modular Power Supply

AMP GH - FULLY MODULAR POWER SUPPLY
Introducing the Phanteks AMP GH Series, these units revolutionize cable management with sleek, individually textured cables for a pristine setup. Enhanced with a 120mm Fluid Dynamic Bearing Fan, they deliver temperature-controlled operation in Hybrid Fanless mode, ensuring virtually silent performance.
With the latest PCIe Gen 5.1 GPU cable technology, the 12V-2×6 connector delivers up to 600W of power via a single cable. Engineered to meet ATX 3.1 specifications, the Phanteks AMP GH represents a superior and cost-effective choice for high-performance builds.
12V-2x6 CABLE INCLUDED
- Built to ATX 3.1 Specifications, ready to handle new and upcoming CPU and GPU hardware requirements.
- Fully Modular Design, individually textured cables for easy installation and reduced clutter.
- Latest PCIe Gen5.1 GPU Connector, 12V-2x6 connector providing up to 600W of power through a single cable.
- Improves compatibility with any chassis.


PACKED WITH FEATURES
Ultra-High Power Density, Compact Size
Ultra-high power density with a small footprint of only 140mm depth.
Gold-Plated High Current Terminals
Reduces current transmission resistance for increased efficiency.
120mm Fluid Dynamic Bearing Fan
The fluid dynamic bearing (FDB) improves the lubrication of the bearing for increased stability and longevity.
Cable-Free Connection Design
Backpanel and PCB are connected by a copper plate to improve output power quality.
Multi-GPU Support
Multiple 6-Pin and 8-Pin output connectors support all multi GPU platforms.


PREMIUM HYBRID MODE
A state-of-the-art fan control that allows the power supply to work entirely fanless under 40% load and enables the most quiet system setups.

MODEL NO.

PH-P750GH_BK01
COLOR

Black
DIMENSIONS (Length X Width X Height)
140 x 150 x 86 mm 5.5 x 5.9 x 3.4 in
POWER OUTPUT

750W
PCIe GEN5 OUTPUT

450W
80 PLUS

Gold
COOLING FAN

120mm Hydraulic Bearing fan
BACK PLATE

Fully modular
MTFB

> 100.000 hrs at 25°C (Excluding DC fan)

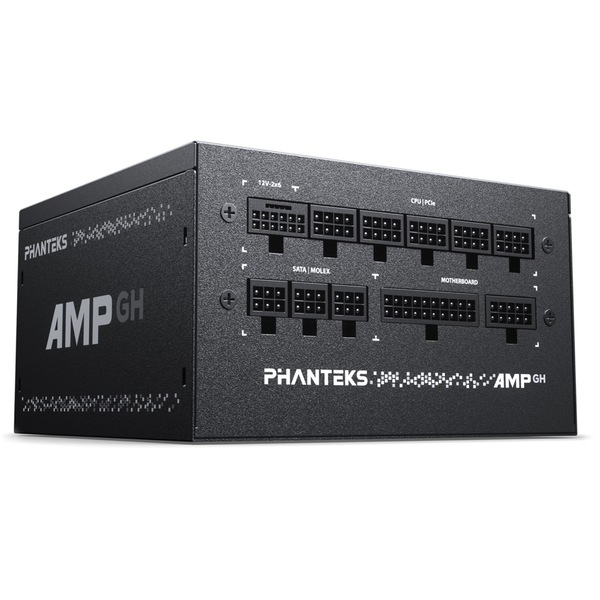

POWER SUPPLY OUTPUT CONNECTORS

Mainboard - 1x
CPU PCIe - 5x
SATA Molex - 3x
12V-2×6 - 1x
OUTPUT PROTECTION

OPP (Overpower Protection)
OVP (Over Voltage Protection)
UVP (Under voltage protection)
SCP (Short Circuit Protection)
OCP (Over Current Protection)
OTP (Over Temperature Protection)
No-Load Protection
Reset Protection
NET WEIGHT

1.40 kg 3.08 lbs
GROSS WEIGHT

3.20 kg 7.05 lbs
SCOPE OF DELIVERY

1x AMP 750W Power supply unit
1x C13 Power cord (1500mm)
TEXTURED CABLES

1x 18+10-Pin Mainboard (610 mm)
2x 4+4-Pin CPU (650 mm)
4x 6+2-Pin PCI-E (750 mm)
1x 12V-2×6 (720 mm)
3x 6-Pin 4-SATA (450 - 150 150 150 mm)
1x 6-Pin 2-SATA + 2-Molex (450 - 150 150 150 mm)
ACCESSORY BOX

1x User's manual
1x Installation guide
1x PSU bag
1x PSU tester
1x Zip tie bag
1x Screw pack
1x Velcro pack
- MPN: PH-P750GH_BK01
GTIN: 886523510659
