Phanteks AMP 1200W ATX 3.1 80Plus Platinum - Black - Full Modular Power Supply

AMP GH Series
Introducing the Phanteks AMP GH Series, these units revolutionize cable management with sleek, individually textured cables for a pristine setup. Enhanced with a 120mm Fluid Dynamic Bearing Fan, they deliver temperature-controlled operation in Hybrid Fanless mode, ensuring virtually silent performance.
AMP GH series power supplies feature a 120mm hydraulic bearing fan, ATX 3.1 compliance, Gen 5.1 GPU support, and a 0 RPM silent mode for optimal stability and longevity. With a compact 140mm design and individually textured cables with combs, they ensure clean builds while handling high power peak demands.


12V-2x6 CABLE INCLUDED
- Built to ATX 3.1 Specifications, ready to handle new and upcoming CPU and GPU hardware requirements.
- Fully Modular Design, individually textured cables for easy installation and reduced clutter.
- Latest PCIe Gen5.1 GPU Connector, 12V-2x6 connector providing up to 600W of power through a single cable.
- Improves compatibility with any chassis.


PACKED WITH FEATURES
Ultra-High Power Density, Compact Size
Ultra-high power density with a small footprint of only 140mm depth.
Gold-Plated High Current Terminals
Reduces current transmission resistance for increased efficiency.
120mm Fluid Dynamic Bearing Fan
The fluid dynamic bearing (FDB) improves the lubrication of the bearing for increased stability and longevity.
Cable-Free Connection Design
Backpanel and PCB are connected by a copper plate to improve output power quality.
Multi-GPU Support
Multiple 6-Pin and 8-Pin output connectors support all multi GPU platforms.


PREMIUM HYBRID MODE
A state-of-the-art fan control that allows the power supply to work entirely fanless under 40% load and enables the most quiet system setups.

General

Product Dimensions
140 x 150 x 86 mm (5.5 x 5.9 x 3.4 in)
Package Dimension
310 x 220 x 120 mm (12.20 x 8.66 x 4.72 in)
Colour

Black
Net Weight
2.33 kg (5.13 lbs)
Gross Weight
3.81 kg (8.39 lbs)
TECHNICAL DETAILS

Cooling Fan

120 mm Hydraulic bearing fan
Output Protection
OPP (Overpower Protection)
OVP (Over Voltage Protection)
UVP (Under voltage protection
SCP (Short Circuit Protection)
OCP (Over Current Protection)
OTP (Over Temperature Protection)
No-Load Protection
Reset Protection
Back Plate

Fully modular

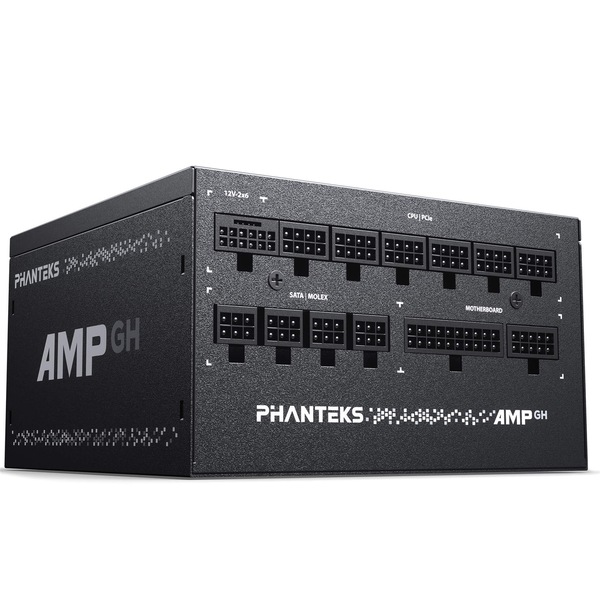

PSU Output Connector

1x 18+10pin => Motherboard
6x 8pin => CPU / PCle
4x 6pin => SATA / Molex
1x 12V-2x6 => PCle
Output Voltage
12V 5V 3.3V -12V 5VSB

Maximum Output
100A 20A 20A 0.3A 3A

Maximum Capacity
1200W 120W 3.6W 15W

DC Output
1200W

AC Output
100-240V ~ 15-7.5A 50-60Hz

16-Pin PCI-e Gen5.1 Capacity

600W
Operating Temp.
0 to 40°C
Operating Humidity
To 85% relative humidity (non-condensing)
Storage Temperature
-20 to 90°C
Storage Humidity
To 95% relative humidity (non-condensing)
MTBF

Over 100,000 hours at 25°C excluding the DC fan
Scope of Delivery

AMP GH 1200W Platinum
1x PH-P1200GH_01 Power Supply
1x C13 Power cord (1500mm)

Braided Cable:
1x 18+10-Pin MB 24P (610 mm)
2x 8pin CPU 4+4-P (650 mm)
4x 8pin PCI-E 6+2P (750 mm)
1x 12V-2×6 (720 mm)
3x 6pin 4SATA 90° (450mm-150/150/150mm)
1x 6pin 2SATA/2Molex 90° (450mm-150/150/150mm)

Accessory:
1x User's manual
1x Installation guide
1x PSU bag
1x Zip tie bag
1x Screw pack
1x Velcro pack
1x PSU jumper
- MPN: PH-P1200GH_BK01
GTIN: 886523510932
