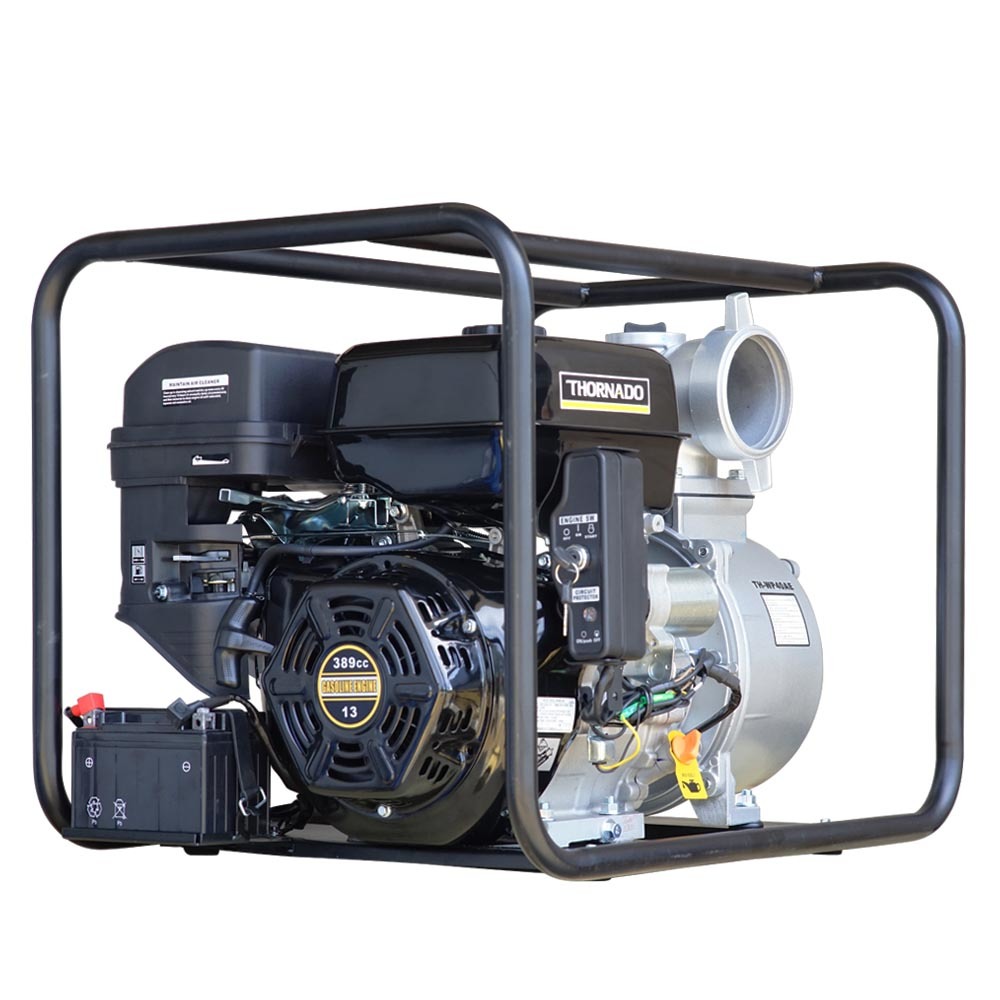

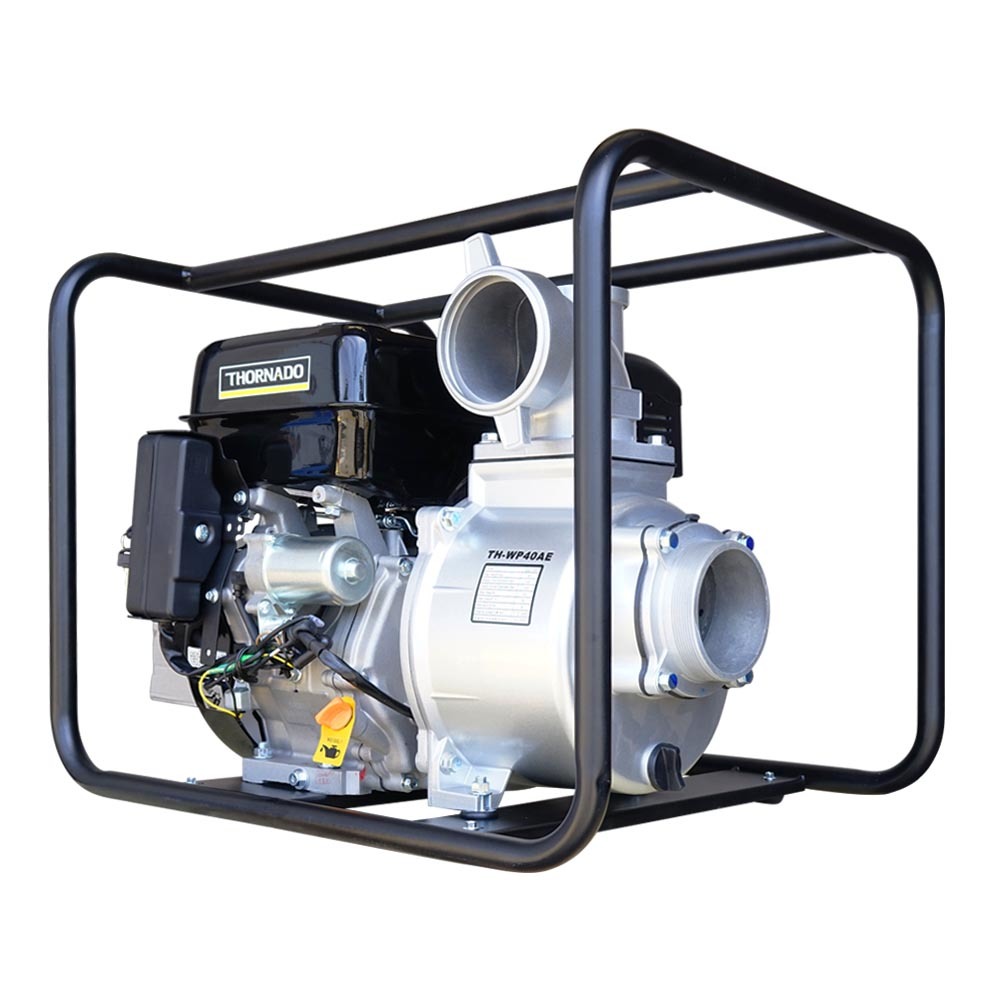

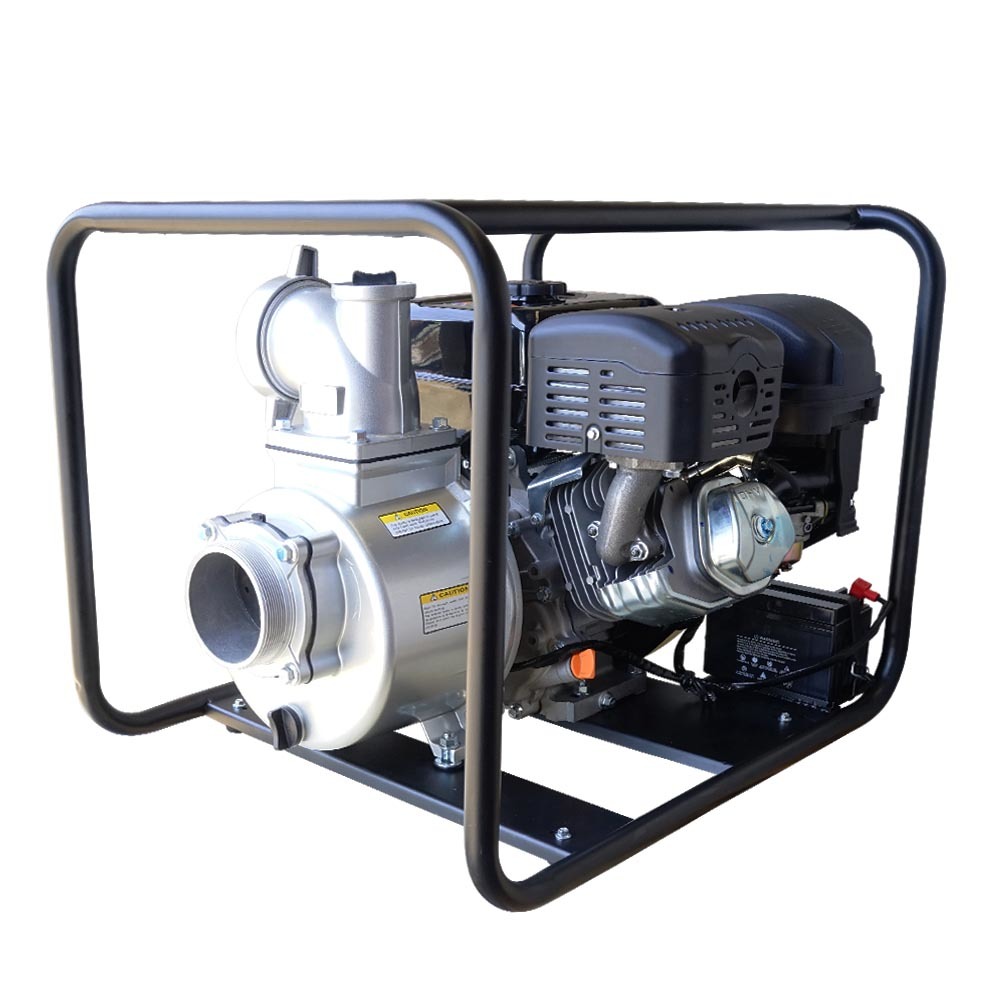

Thornado 4 Inch Petrol Water Transfer Pump 13HP (389cc)
The THORNADO petrol water transfer pump not only improve the power that you need but also a new design of the pump impeller and pump body thickness. The pump is powered by a true commercial 13HP 389cc 4 Stroke OHV engine. With a suction/discharge diameter of 100mm, or 4 inches, this water pump has a maximum delivery lift of 30m and a maximum water displacement rate of 90,000 litre per hour. With the ability to draw water up to 7m in height, the Thornado WP40AE is sure to be helpful to you in a variety of situations.
The engine is a 13HP (389cc) 4-stroke, single cylinder OHV forced air-cooled petrol engine with a recoil starter that makes it easy to get the equipment running and on task. Also with a 5.5 fuel tank, this water pump is ready for up to 3 hours at 3/4 load. The engine features a durable steel cam and crank shaft, cast iron cylinder to withstand wear. High quality carburetor to get the pump start easily and low oil alert sensor for safe operation.vvvv
Highly efficient, the Thornado WP40AE petrol water pump has multiple uses because of its portability. This pump seems to be the perfect solution for using in variety of locations including flower nurseries and gardens, water plants, mines, factories, ships, and country sides where water needs to be drained remotely. THORNADO petrol water pump is an ideal solution not only for emergency jobs but also for daily routine.
Key Features of 4 Inch Petrol Water Transfer Pump
- Powered by Thornado 13HP Petrol Engine
- EPA-III emission certified engine - Reduce carbon footprint
- Max heads 30 metres
- Max flows 90,000 litres per hour
- Suction depth 7 metres
- 4 inch Suction/Discharge Ports
- Anti-vibration design
- High-quality mechanical seal
- Rigid Mounted Cast Iron Volute and Cast Iron Impeller
- Heavy Duty Full Frame Protection
- Low oil alert installed to prevent engine damage by automatically shutting the engine down when oil drop below the safe operating level
- 12 Months Warranty*
*T&C's Apply, see Warranty Policy for full details.
| SPECIFICATIONS |
| Model No |
TH-WP40AE |
| Type |
Self priming, Centrifugal pump |
| Inlet Size |
4 inch |
| Outlet Size |
4 inch |
| Max Lift Head |
30m |
| Max Flow |
86,000 litres/hour |
| Max Suction Depth |
7m |
| Max Pressure |
42 PSI |
| Material |
Aluminium alloy pump housing, cast iron impeller and diffuser |
| Engine |
TH-130QE (13HP) |
| Engine Type |
4 stroke, air cooled |
| Max Power HP / Rpm |
13HP / 3600 Rpm |
| Displacement |
389cc |
| Fuel Type |
Petrol |
| Oil Type |
SAE10w-30 / SAE30 |
| Fuel Tank Capacity |
6.5L |
| Oil Capacity |
1.6L |
| Run Time Full Tank |
2.5h at load |
| Starting System |
Recoil start |
| Product Length |
670mm |
| Product Width |
550mm |
| Product Height |
630mm |
| Product Weight |
59kg |
| In the Box |
Water pump, battery, hose fittings, hose clamps, intake strainer, spark plug wrench, user manual, |
Suitable Applications
- Water transfer from dam
- Tank filling
- Irrigation
- Sprinkler
- Washing
- Shallow Well
- Water Carts
- Fish Farm (Fresh Water)
- Crop spraying
